FD750D-FS03 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

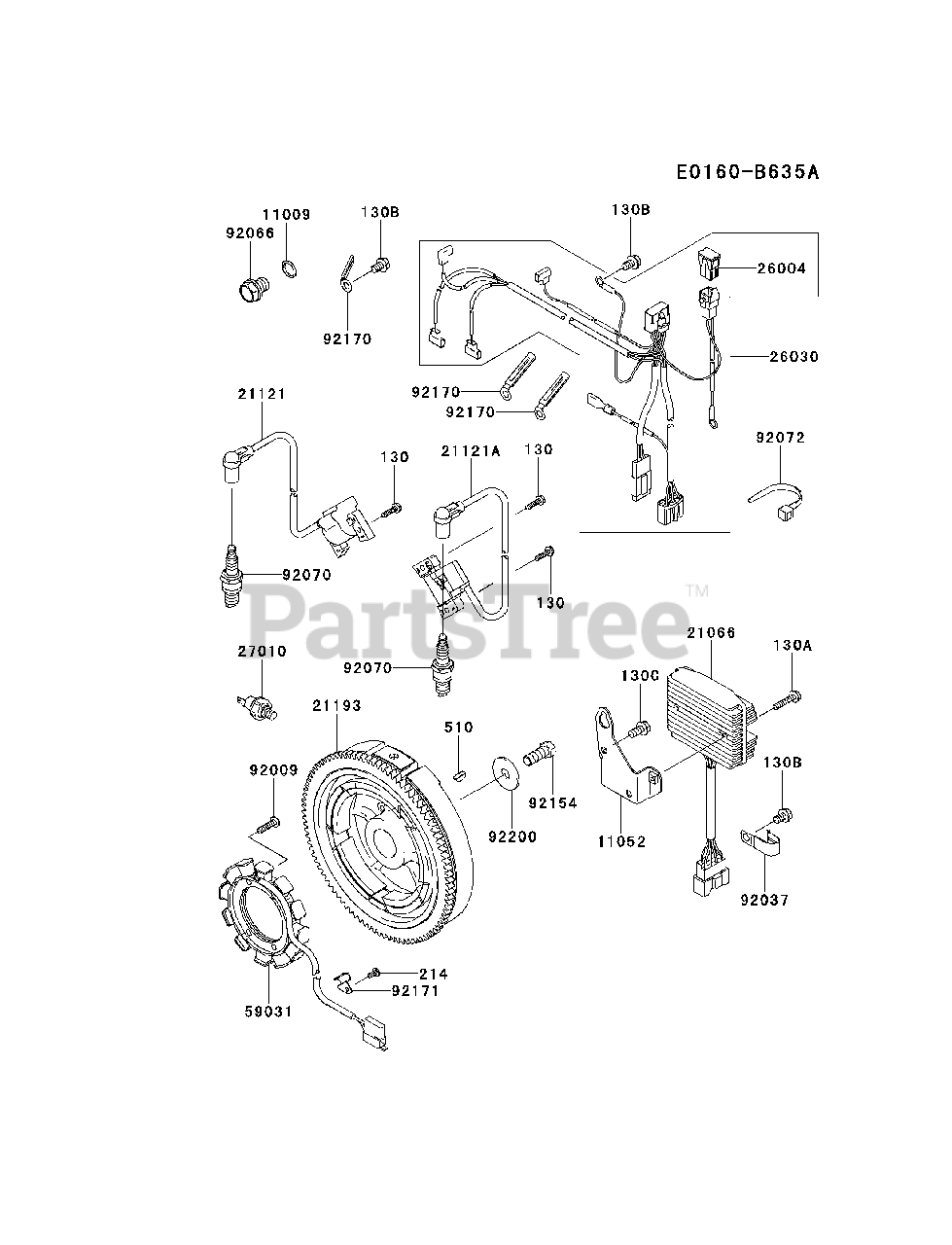

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 110092566

GASKET,DRAIN PLUG

$0.99

$

In Stock, Qty 17

0

11052

Kawasaki 110522058

BRACKET

$42.99

$

In Stock, only 1 left!

0

21066

Kawasaki 210662079

REGULATOR-VOLTAGE

$308.99

$

In Stock, Qty 6

0

21121

Kawasaki 21121-2090

COIL-IGNITION,NO1

$66.99

$

Usually ships in 2-5 days

0

21121A

Kawasaki 21121-2091

COIL-IGNITION,NO2

$66.99

$

Usually ships in 2-5 days

0

21193

Kawasaki 21193-2187

FLYWHEEL-ASSY
(Superseded to 21193-0009)

$578.99

$

Usually ships in 2-5 days

0

26004

Kawasaki 260041093

FUSE-ASSY

$7.49

$

Usually ships in 2-5 days

0

26030

Kawasaki 26030-2320

HARNESS
(Superseded to 26031-1576)

$94.99

$

Usually ships in 2-5 days

0

27010

Kawasaki 27010-7001

SWITCH
(Superseded to 27010-0817)

$23.99

$

In Stock, Qty 9

0

59031

Kawasaki 590312127

COIL-CHARGING

$228.99

$

In Stock, only 1 left!

0

92009

Kawasaki 920092273

SCREW,6X25

$1.49

$

Usually ships in 2-5 days

0

92037

Kawasaki 920372101

CLAMP

$

$

Not available

92066

Kawasaki 920662099

PLUG,DRAIN

$16.99

$

In Stock, Qty 5

0

92070

Kawasaki 92070-2110

PLUG-SPARK,BPR2ES,SOLID
(Superseded to BPR2ES)

Note: NGK

$3.99

$

Usually ships in 2-5 days

0

92072

Kawasaki 920721195

BAND

$1.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 921547003

BOLT,12X30

$4.99

$

In Stock, Qty 20+

0

92170

Kawasaki 921702060

CLAMP

$3.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 921712060

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 922002119

WASHER,12.2X40X3.0

$7.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0520

BOLT-FLANGED,5X20
(Superseded to 130B0520)

$0.99

$

In Stock, Qty 8

0

130A

Kawasaki 130BA0630

BOLT-FLANGED,6X30
(Superseded to 130B0630)

$1.99

$

In Stock, Qty 14

0

130B

Kawasaki 130BA0812

BOLT-FLANGED,8X12
(Superseded to 92002-2086)

$1.49

$

In Stock, only 4 left!

0

130C

Kawasaki 130BA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

214

Kawasaki 214AA0510

SCREW-PAN+-,5X10
(Superseded to 214B0510)

$0.99

$

In Stock, Qty 12

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
