FD750D-RS12 - Kawasaki Engine ELECTRIC-EQUIPMENT (FD750-A53858 AND GREATER) Parts Diagram

Engine

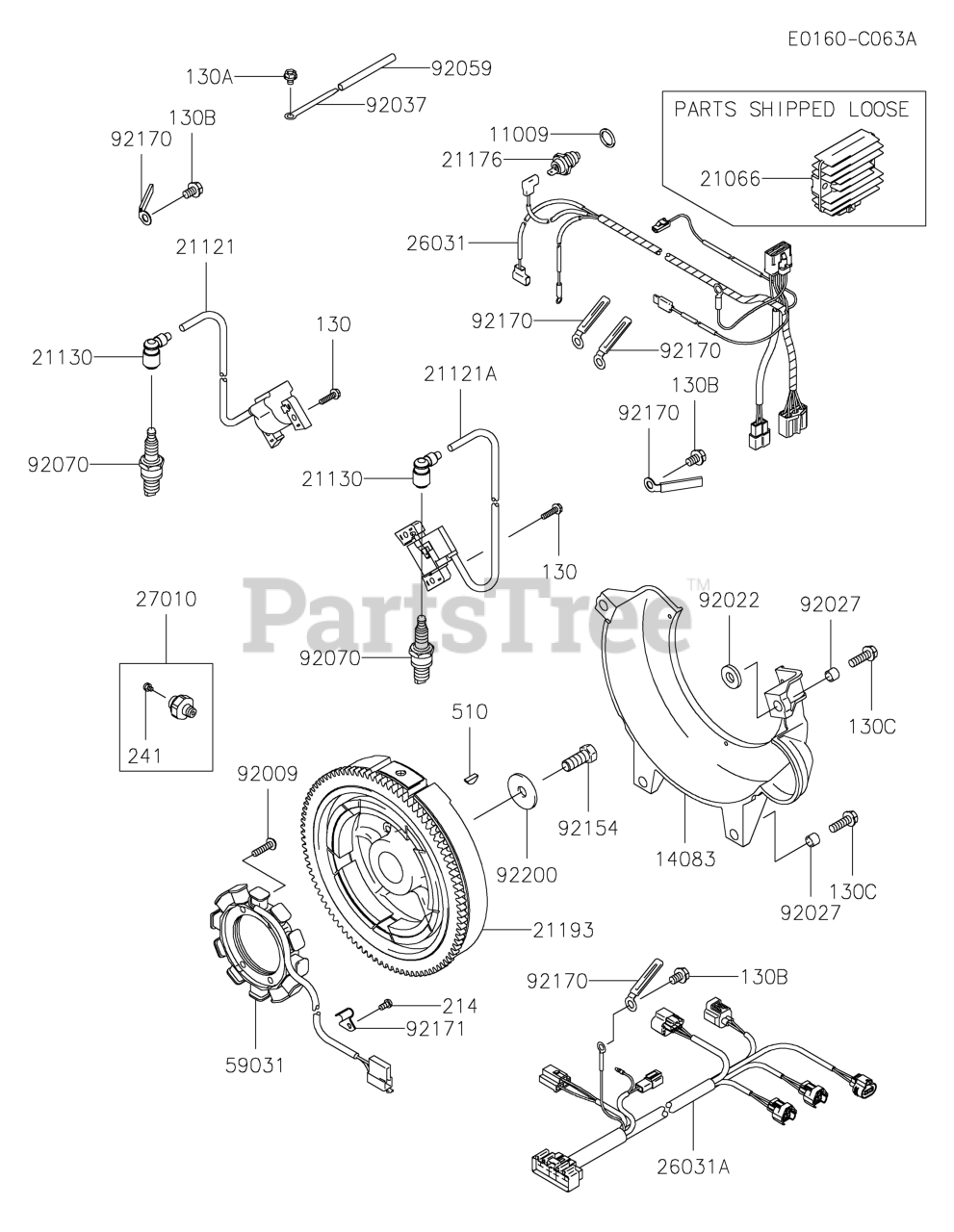

ELECTRIC-EQUIPMENT (FD750-A53858 AND GREATER) Parts Diagram

  • Title

11009

Kawasaki 11009-2766

GASKET,16X21X2
(Superseded to 11061-2132)

$1.49

$

In Stock, Qty 6

0

14083

Kawasaki 14083-2055

COVER-FLYWHEEL

$45.99

$

Usually ships in 2-5 days

0

21066

Kawasaki 21066-2070

REGULATOR-VOLTAGE

$144.99

$

In Stock, Qty 6

0

21121

Kawasaki 21121-0747

COIL-IGNITION,NO1

$72.99

$

Usually ships in 2-5 days

0

21121A

Kawasaki 21121-0748

COIL-IGNITION,NO2

$72.99

$

Usually ships in 2-5 days

0

21130

Kawasaki 21130-2060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, Qty 6

0

21176

Kawasaki 21176-2098

SENSOR

$63.99

$

Usually ships in 2-5 days

0

21193

Kawasaki 21193-0032

FLYWHEEL-ASSY
(Superseded to 21193-0009)

$578.99

$

Usually ships in 2-5 days

0

26031

Kawasaki 26031-2221

HARNESS,MAIN

$

$

Not available

26031A

Kawasaki 26031-2222

HARNESS,SENSOR

$

$

Not available

27010

Kawasaki 27010-0851

SWITCH,OIL PRESSURE
(Superseded to 27010-2234)

$21.99

$

In Stock, Qty 7

0

59031

Kawasaki 59031-2123

COIL-CHARGING

$216.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2273

SCREW,6X25

$1.49

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2104

WASHER

$0.99

$

In Stock, only 4 left!

0

92027

Kawasaki 92027-1568

COLLAR,8.8X12X9

$1.99

$

In Stock, only 4 left!

0

92037

Kawasaki 92037-2006

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92059

Kawasaki 92059-2011

TUBE,5X6X75

$0.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2110

PLUG-SPARK,BPR2ES
(Superseded to BPR2ES)

$3.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 20+

0

92170

Kawasaki 92170-2060

CLAMP

$3.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-2060

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2119

WASHER,12.2X40X3.0

$7.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0520

BOLT-FLANGED,5X20
(Superseded to 130B0520)

$0.99

$

In Stock, Qty 8

0

130A

Kawasaki 130AB0608

BOLT-FLANGED,6X8
(Superseded to 130C0608)

$3.99

$

Usually ships in 2-5 days

0

130B

Kawasaki 130BA0812

BOLT-FLANGED,8X12
(Superseded to 92002-2086)

$1.49

$

In Stock, only 4 left!

0

130C

Kawasaki 130BA0825

BOLT-FLANGED,8X25
(Superseded to 130D0825)

$1.49

$

In Stock, Qty 6

0

214

Kawasaki 214AA0510

SCREW-PAN+-,5X10
(Superseded to 214B0510)

$0.99

$

In Stock, Qty 12

0

241

Kawasaki 241AA0406

SCREW-PAN-WP+-,4X6
(Superseded to 223AA0406)

$

$

Not available

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
