FD851D-AS00 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

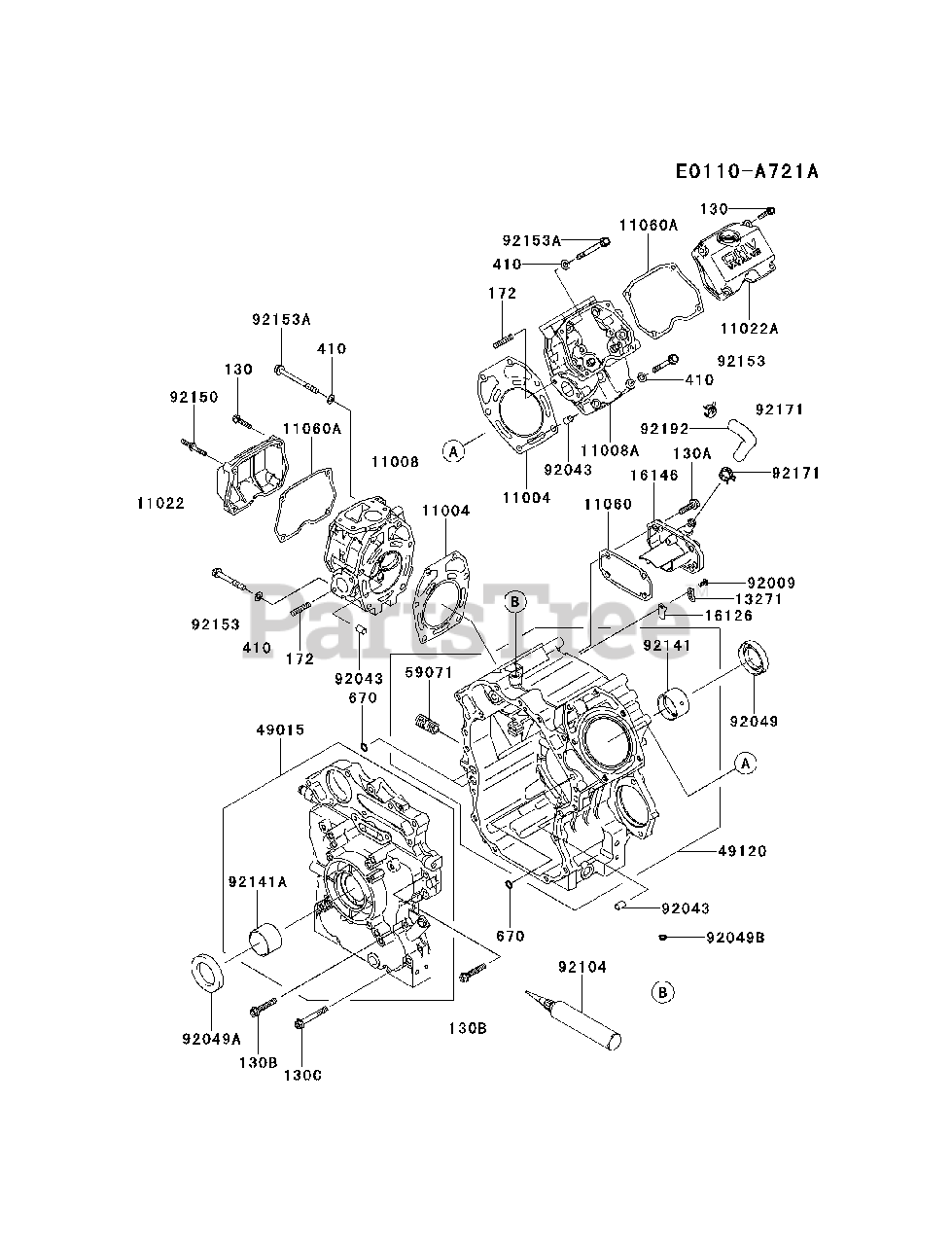

CYLINDER/CRANKCASE Parts Diagram

  • Title

92043

Kawasaki 920431037

PIN

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 920492242

SEAL-OIL,ISD 38X58X11 AE

$14.99

$

In Stock, Qty 8

0

92049A

Kawasaki 920492243

SEAL-OIL,ISD 42X65X9 AE

$15.99

$

In Stock, Qty 12

0

92049B

Kawasaki 920492255

SEAL-OIL,VC 8X12X2.5

$3.49

$

In Stock, only 4 left!

0

92104

Kawasaki 921042068

GASKET-LIQUID,TB1207B

$76.99

$

Usually ships in 2-5 days

0

92141

Kawasaki 921412123

BEARING-PLANE

$25.99

$

In Stock, only 1 left!

0

92141A

Kawasaki 921412124

BEARING-PLANE

$25.99

$

In Stock, only 2 left!

0

92150

Kawasaki 921502261

BOLT

$6.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 921532131

BOLT,8X60

$2.99

$

In Stock, Qty 5

0

92153A

Kawasaki 921532132

BOLT,8X85

$2.49

$

In Stock, Qty 17

0

92171

Kawasaki 921710332

CLAMP

$2.49

$

Usually ships in 2-5 days

0

92192

Kawasaki 921922208

TUBE

$5.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130BA0630

BOLT-FLANGED,6X30
(Superseded to 130B0630)

$1.99

$

In Stock, Qty 14

0

130A

Kawasaki 130BA0830

BOLT-FLANGED,8X30
(Superseded to 130G0830)

$3.99

$

In Stock, Qty 5

0

130B

Kawasaki 130BA0845

BOLT-FLANGED,8X45
(Superseded to 130G0845)

$1.99

$

In Stock, only 4 left!

0

130C

Kawasaki 130BA0860

BOLT-FLANGED,8X60
(Superseded to 130G0860)

$1.99

$

In Stock, Qty 8

0

172

Kawasaki 172BA0822

BOLT-STUD,8X22
(Superseded to 172G0822)

$2.49

$

In Stock, Qty 20+

0

410

Kawasaki 410AA0800

W-PLAIN-S,8MM
(Superseded to 917148)

$

$

Not available

670

Kawasaki 670B2011

O RING,11MM

$1.49

$

In Stock, Qty 20+

0

11004

Kawasaki 110042148

GASKET-HEAD

$28.99

$

In Stock, only 4 left!

0

11008

Kawasaki 11008-2175

HEAD-COMP-CYLINDER
(Superseded to 11008-0825)

$347.99

$

Usually ships in 2-5 days

0

11008A

Kawasaki 11008-2176

HEAD-COMP-CYLINDER
(Superseded to 11008-0826)

$346.99

$

Usually ships in 2-5 days

0

11022

Kawasaki 110222072

CASE-ROCKER

$50.99

$

Usually ships in 2-5 days

0

11022A

Kawasaki 110222073

CASE-ROCKER

$59.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 110602466

GASKET,BREATH

$6.99

$

In Stock, only 4 left!

0

11060A

Kawasaki 110602470

GASKET,ROCKER CASE

$6.49

$

In Stock, Qty 20+

0

13271

Kawasaki 132712105

PLATE

$1.49

$

In Stock, only 4 left!

0

16126

Kawasaki 161262225

VALVE,BREATH

$1.49

$

In Stock, Qty 7

0

16146

Kawasaki 161462244

COVER-ASSY

$37.99

$

Usually ships in 2-5 days

0

49015

Kawasaki 49015-6292

COVER-CRANKCASE
(Superseded to 49015-6325)

$476.99

$

Usually ships in 2-5 days

0

49120

Kawasaki 49120-6190

CRANKCASE-COMP

$

$

Not available

59071

Kawasaki 590712079

JOINT

$6.49

$

In Stock, Qty 12

0

92009

Kawasaki 920092308

SCREW

$0.99

$

In Stock, Qty 12

0
