FD851D-AS00 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

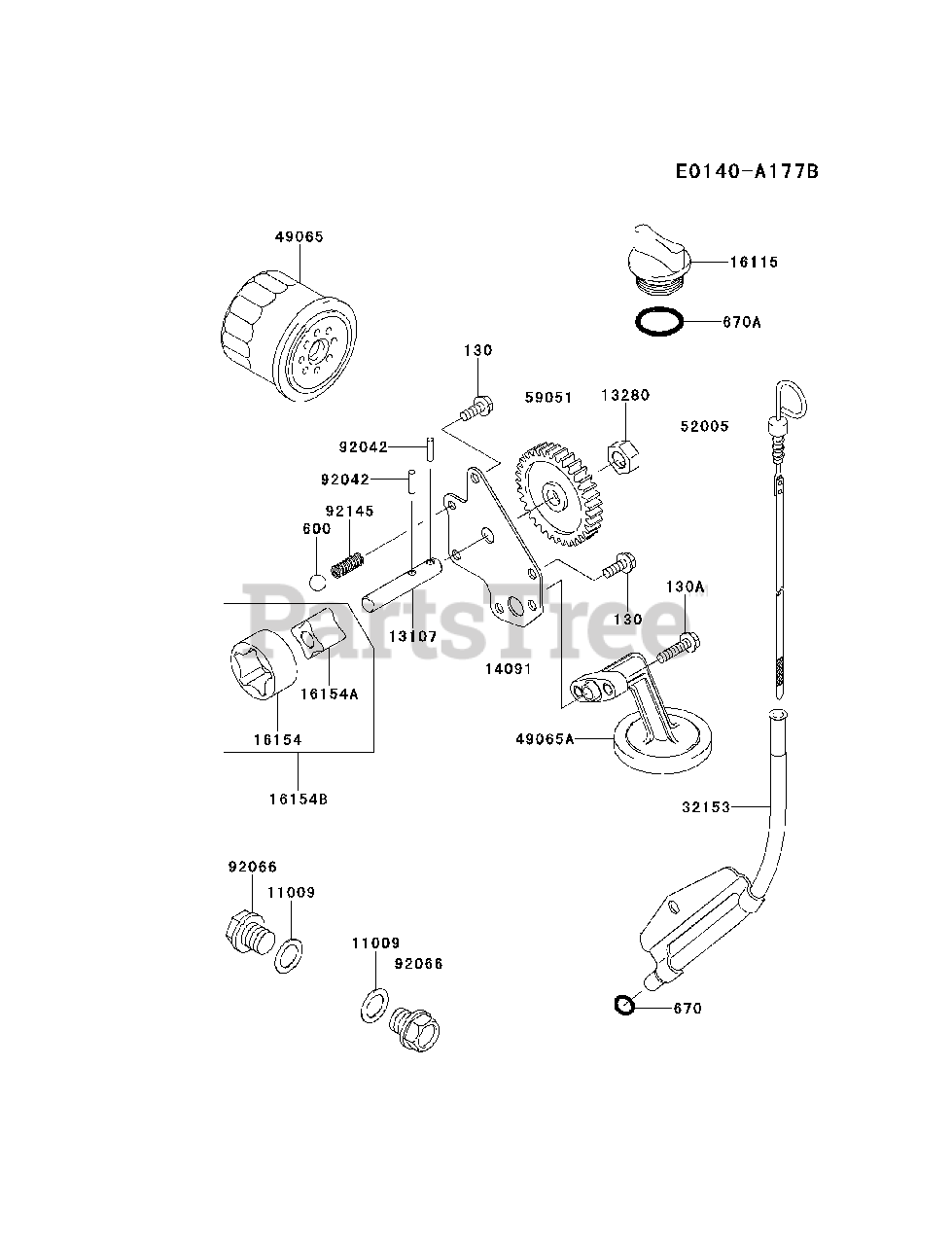

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 110092566

GASKET,DRAIN PLUG

$0.99

$

In Stock, Qty 7

0

13107

Kawasaki 131072281

SHAFT,OIL PUMP

$11.99

$

Usually ships in 2-5 days

0

13280

Kawasaki 132802061

HOLDER,OIL PUMP

$6.49

$

Usually ships in 2-5 days

0

14091

Kawasaki 140912065

COVER,OIL PUMP

$9.49

$

Usually ships in 2-5 days

0

16115

Kawasaki 16115-2126

CAP-OIL FILLER

$2.99

$

Usually ships in 2-5 days

0

16154

Kawasaki 161541075

ROTOR-PUMP,OUTER

$22.99

$

Usually ships in 2-5 days

0

16154A

Kawasaki 161541076

ROTOR-PUMP,INNER

$22.99

$

Usually ships in 2-5 days

0

16154B

Kawasaki 161541079

ROTOR-PUMP

$29.99

$

In Stock, only 2 left!

0

32153

Kawasaki 3215320769H

PIPE,OIL GAUGE

$

$

Currently unavailable

49065

Kawasaki 490652071

FILTER-OIL

$15.99

$

In Stock, Qty 5

0

49065A

Kawasaki 490652082

FILTER-OIL

$30.99

$

Usually ships in 2-5 days

0

52005

Kawasaki 520052132

GAUGE,OIL

$26.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 590512354

GEAR-SPUR,33T

$21.99

$

In Stock, only 1 left!

0

92042

Kawasaki 92042014

PIN

$0.99

$

In Stock, Qty 8

0

92066

Kawasaki 920662099

PLUG,DRAIN

$15.99

$

In Stock, only 2 left!

0

92145

Kawasaki 921452132

SPRING

$0.99

$

In Stock, only 2 left!

0

130

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, Qty 6

0

130A

Kawasaki 130BA0625

BOLT-FLANGED,6X25
(Superseded to 92003-177)

$1.49

$

In Stock, Qty 14

0

600

Kawasaki 600A1300

BALL-STEEL,13/32"

$0.99

$

In Stock, Qty 11

0

670

Kawasaki 670B2010

O RING,10MM

$1.99

$

In Stock, only 3 left!

0

670A

Kawasaki 670B3025

O RING,25MM

$1.49

$

In Stock, only 3 left!

0
