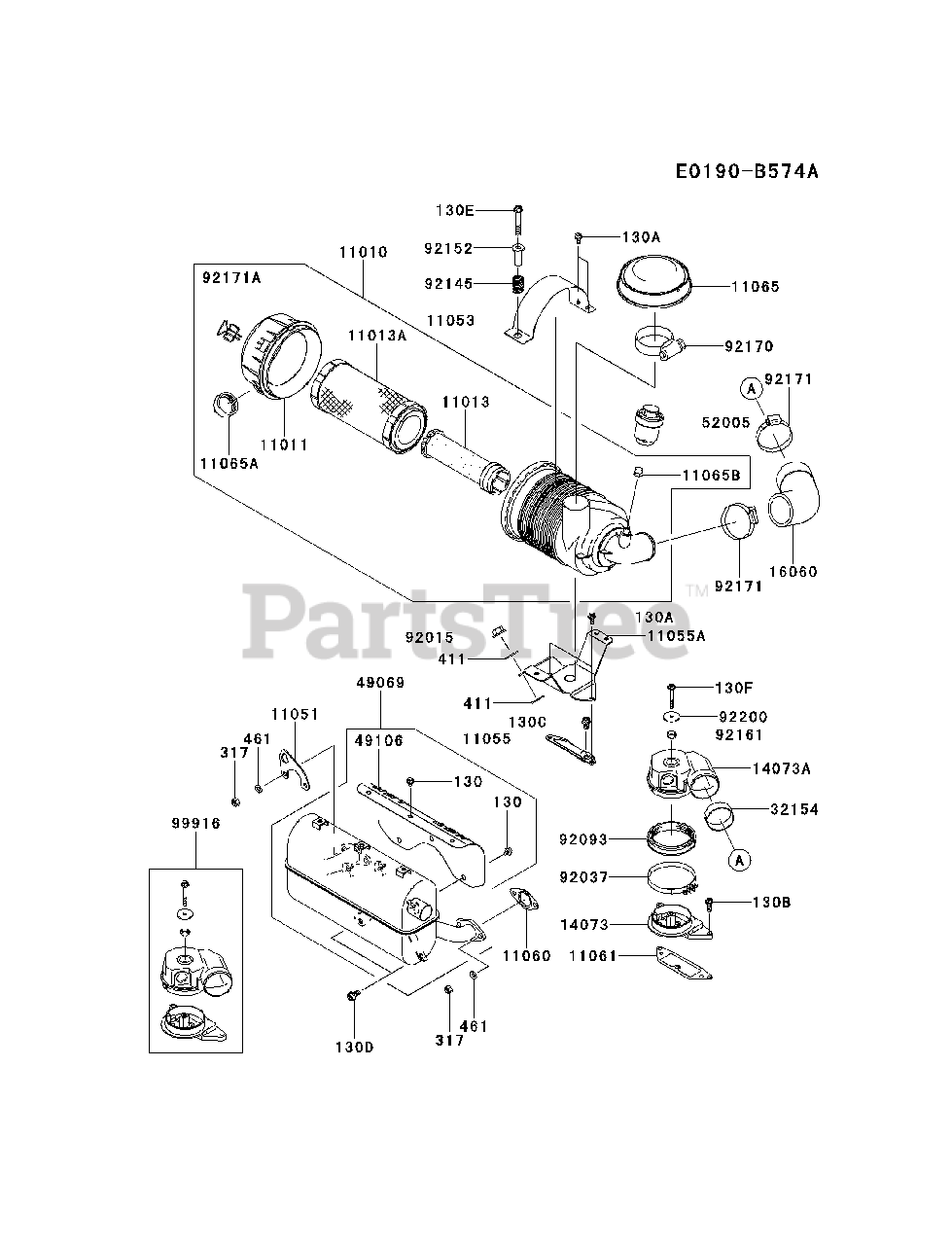

FD851D-NS00 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-2571

FILTER-ASSY-AIR
(Superseded to 11010-7028)

$118.99

$

In Stock, Qty 20+

0

11011

Kawasaki 110117014

CASE-AIR FILTER

$54.99

$

In Stock, Qty 5

0

11013

Kawasaki 110137019

ELEMENT-AIR FILTER

$31.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 110137020

ELEMENT-AIR FILTER

$28.99

$

In Stock, Qty 20+

0

11051

Kawasaki 110512088

BRACKET

$8.99

$

Usually ships in 2-5 days

0

11053

Kawasaki 1105320569H

BRACKET,UPPER

$

$

Currently unavailable

11055

Kawasaki 110552040

BRACKET,FILTER-AIR

$17.99

$

Usually ships in 2-5 days

0

11055A

Kawasaki 1105520419H

BRACKET,FILTER-AIR,LOW

$

$

Currently unavailable

11060

Kawasaki 110602467

GASKET,MUFFLER

$6.49

$

In Stock, Qty 20+

0

11061

Kawasaki 110612085

GASKET
(Superseded to 11060-2474)

$5.49

$

In Stock, Qty 13

0

11065

Kawasaki 11065-7006

CAP
(Superseded to 11065-7025)

$41.99

$

In Stock, Qty 20+

0

11065A

Kawasaki 110657008

CAP

$19.99

$

In Stock, Qty 20+

0

11065B

Kawasaki 110657009

CAP

$10.99

$

Usually ships in 2-5 days

0

14073

Kawasaki 140732084

DUCT,LOW
(Superseded to 14073-2075)

$29.99

$

Usually ships in 2-5 days

0

14073A

Kawasaki 140732086

DUCT,UPP

$73.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 160602208

PIPE-INTAKE
(Superseded to 16060-2199)

$24.99

$

In Stock, only 1 left!

0

32154

Kawasaki 321542059

PIPE,INSIDE DUCT

$6.99

$

Usually ships in 2-5 days

0

49069

Kawasaki 4906923569Y

MUFFLER-ASSY
(Superseded to 49069-2347-9Y)

$

$

Currently unavailable

49106

Kawasaki 49106-2644-9Y

COVER-MUFFLER

$

$

Not available

52005

Kawasaki 520052152

GAUGE

$

$

Not available

92015

Kawasaki 920151367

NUT,FLANGED,6MM

$4.49

$

In Stock, Qty 20+

0

92037

Kawasaki 920371654

CLAMP

$13.99

$

Usually ships in 2-5 days

0

92093

Kawasaki 920932118

SEAL

$12.99

$

In Stock, only 1 left!

0

92145

Kawasaki 921452120

SPRING

$2.49

$

In Stock, only 1 left!

0

92152

Kawasaki 921522083

COLLAR

$12.99

$

In Stock, only 1 left!

0

92161

Kawasaki 921612058

DAMPER

$2.99

$

In Stock, only 2 left!

0

92170

Kawasaki 921702075

CLAMP

$10.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 921712076

CLAMP

$10.99

$

Usually ships in 2-5 days

0

92171A

Kawasaki 921717009

CLAMP

$12.99

$

In Stock, Qty 12

0

92200

Kawasaki 922002144

WASHER

$2.49

$

In Stock, Qty 7

0

99916

Kawasaki 99916-2183

KIT-KHI PARTS,DUCT-SET

$

$

Not available
