FE120D-BS04 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

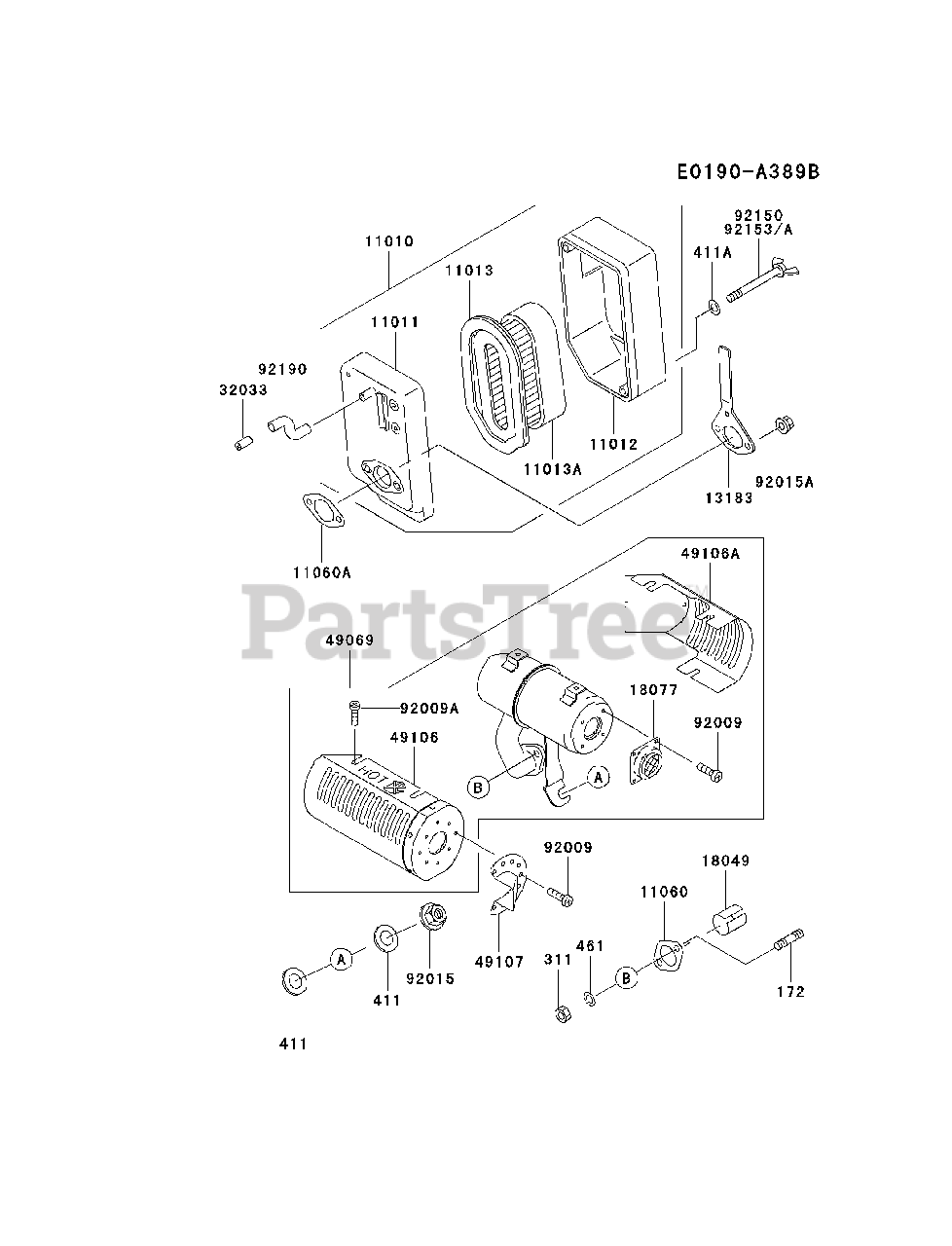

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 110102459

FILTER-ASSY-AIR
(Superseded to 11010-2444)

$82.99

$

Usually ships in 2-5 days

0

11011

Kawasaki 110112241

CASE-AIR FILTER
(Superseded to 11011-2218)

$18.99

$

In Stock, only 1 left!

0

11012

Kawasaki 110122325

CAP,AIR FILTER
(Superseded to 11012-2293)

$15.99

$

In Stock, only 2 left!

0

11013

Kawasaki 110132132

ELEMENT-AIR FILTER

$20.99

$

In Stock, Qty 7

0

11013A

Kawasaki 110132133

ELEMENT-AIR FILTER

$6.99

$

In Stock, Qty 15

0

11060

Kawasaki 110602037

GASKET,MUFFLER
(Superseded to 11009-2124)

$4.99

$

In Stock, only 2 left!

0

11060A

Kawasaki 110602049

GASKET,AIR FILTER

$1.49

$

In Stock, Qty 6

0

13183

Kawasaki 131832527

PLATE
(Superseded to 13183-2416)

$9.49

$

In Stock, only 1 left!

0

18049

Kawasaki 180492220

PIPE-EXHAUST

$3.49

$

Usually ships in 2-5 days

0

18077

Kawasaki 18077-2096

ARRESTER-SPARK

$17.99

$

In Stock, only 4 left!

0

32033

Kawasaki 320332001

PIPE
(Superseded to 32032-2001)

$0.99

$

In Stock, only 3 left!

0

49069

Kawasaki 4906922679X

MUFFLER-ASSY
(Superseded to 49069-2267-9Y)

$

$

Currently unavailable

49106

Kawasaki 4910625719X

COVER-MUFFLER
(Superseded to 49106-2571-9Y)

$

$

Currently unavailable

49106A

Kawasaki 4910625729X

COVER-MUFFLER

$

$

Currently unavailable

49107

Kawasaki 491072112YM

COVER-EXHAUST PIPE

$

$

Currently unavailable

92009

Kawasaki 920092307

SCREW

$0.99

$

In Stock, only 1 left!

0

92009A

Kawasaki 920092322

SCREW

$0.99

$

In Stock, Qty 14

0

92015

Kawasaki 920151143

NUT

$0.99

$

In Stock, Qty 5

0

92015A

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, only 4 left!

0

92153

Kawasaki 921532085

BOLT

$3.99

$

In Stock, Qty 12

0

92190

Kawasaki 921902043

TUBE

$2.99

$

In Stock, only 3 left!

0

172

Kawasaki 172BA0616

BOLT-STUD,6X16
(Superseded to 172B0616)

$1.49

$

In Stock, only 1 left!

0

311

Kawasaki 311R0600

NUT-HEX,6MM
(Superseded to 310R0600)

$

$

Not available

411

Kawasaki 411B0800

WASHER-PLAIN,8MM
(Superseded to 411AA0800)

$0.99

$

Usually ships in 2-5 days

0

411A

Kawasaki 411F0500

WASHER-PLAIN,5MM
(Superseded to 411AB0500)

$0.99

$

In Stock, Qty 7

0

461

Kawasaki 461F0600

WASHER-SPRING,6MM
(Superseded to 461DA0600)

$0.99

$

In Stock, Qty 6

0
