FE120D-CS02 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

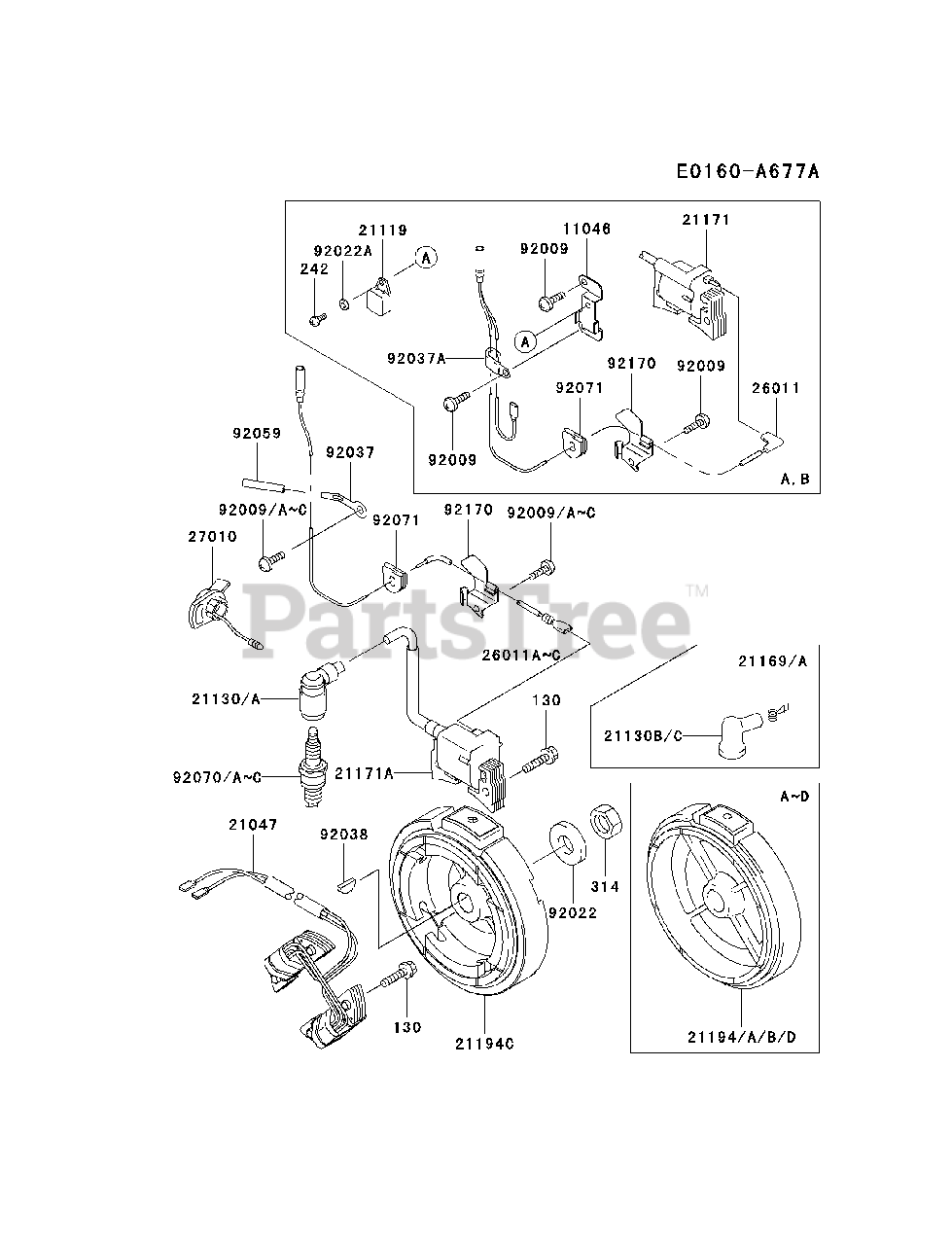

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21130A

Kawasaki 211302060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, Qty 6

0

21130C

Kawasaki 211302066

CAP-SPARK PLUG
(Superseded to 21130-2001)

Note: Substitute part, supplied until the stock is exhausted.

$2.49

$

In Stock, Qty 5

0

21169A

Kawasaki 21169-2004

TERMINAL
(Superseded to 21169-2057)

Note: Substitute part, supplied until the stock is exhausted.

$

$

Not available

21171A

Kawasaki 211712219

COIL-ASSY-IGNITION

$146.99

$

In Stock, only 1 left!

0

21194D

Kawasaki 211942330

FLYWHEEL-COMP
(Superseded to 21194-2245)

$182.99

$

Usually ships in 2-5 days

0

26011B

Kawasaki 260112333

WIRE-LEAD,L=300
(Superseded to 26011-2345)

$7.99

$

Usually ships in 2-5 days

0

26011C

Kawasaki 26011-2345

WIRE-LEAD,L=270
(Superseded to 26011-2333)

Note: Substitute part, supplied until the stock is exhausted.

$7.99

$

Usually ships in 2-5 days

0

27010

Kawasaki 270102052

SWITCH
(Superseded to 315801-8511A)

$14.99

$

In Stock, only 2 left!

0

92009

Kawasaki 920092166

SCREW,5X8

$0.99

$

In Stock, Qty 10

0

92022

Kawasaki 920222102

WASHER

$13.99

$

Usually ships in 2-5 days

0

92037

Kawasaki 92037-2165

CLAMP

$

$

Not available

92038

Kawasaki 920382077

KEY

$3.49

$

In Stock, Qty 10

0

92059

Kawasaki 920592156

TUBE,5X6X35

$0.99

$

In Stock, only 4 left!

0

92070A

Kawasaki 92070-1167

PLUG-SPARK,BP5ES,SOLID
(Superseded to BP5ES)

Note: NGK Substitute part, supplied until the stock is exhausted.

$2.99

$

Usually ships in 2-5 days

0
