FE120D-CS04 - Kawasaki Engine FUEL-TANK/FUEL-VALVE Parts Diagram

Engine

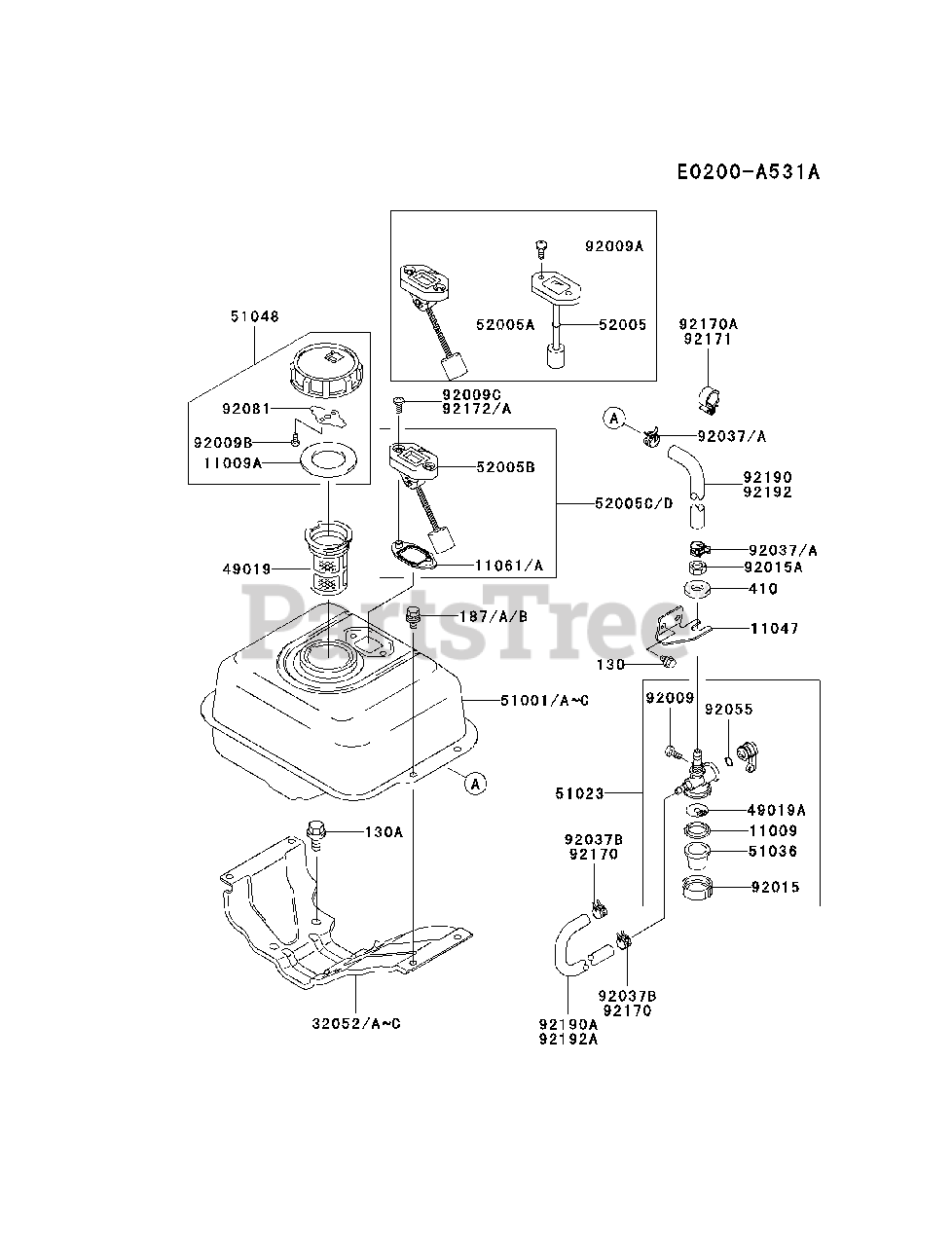

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title

11009

Kawasaki 110092021

GASKET
(Superseded to 313650-6518-02)

$

$

Not available

11009A

Kawasaki 110092115

GASKET
(Superseded to 11009-2044)

$2.49

$

In Stock, only 4 left!

0

11047

Kawasaki 110472073

BRACKET

$3.49

$

Usually ships in 2-5 days

0

11061

Kawasaki 110612077

GASKET

$2.99

$

Usually ships in 2-5 days

0

32052B

Kawasaki 32052-2222-9H

BRACKET-TANK

$

$

Not available

49019

Kawasaki 490192051

FILTER-FUEL
(Superseded to 49019-2003)

$6.99

$

In Stock, only 2 left!

0

49019A

Kawasaki 490192095

FILTER-FUEL
(Superseded to 49019-2101)

$6.49

$

In Stock, Qty 15

0

51001B

Kawasaki 5100123069H

TANK-COMP-FUEL
(Superseded to 51001-2254-9H)

$

$

Currently unavailable

51023

Kawasaki 510232131

TAP-ASSY
(Superseded to 51023-2001)

$

$

Not available

51036

Kawasaki 510362063

CUP,FUEL TAP
(Superseded to 51036-2001)

$3.99

$

In Stock, Qty 20+

0

51048

Kawasaki 510482055

CAP-ASSY-TANK
(Superseded to 51048-2071)

$12.99

$

In Stock, Qty 6

0

52005C

Kawasaki 520052139

GAUGE
(Superseded to 52005-2007)

$29.99

$

In Stock, only 4 left!

0

92009

Kawasaki 920092004

SCREW

$0.99

$

In Stock, only 3 left!

0

92009B

Kawasaki 920092021

SCREW

$0.99

$

In Stock, only 3 left!

0

92015

Kawasaki 920152007

NUT

$6.49

$

In Stock, Qty 12

0

92015A

Kawasaki 920152317

NUT

$1.49

$

In Stock, Qty 9

0

92037

Kawasaki 920371181

CLAMP,HOSE CLIP

$3.99

$

Usually ships in 2-5 days

0

92055

Kawasaki 920552002

RING-O

$

$

Not available

92081

Kawasaki 920812036

SPRING

$2.49

$

In Stock, only 1 left!

0

92170

Kawasaki 921702043

CLAMP

$1.49

$

In Stock, Qty 12

0
