FE120D-LS02 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

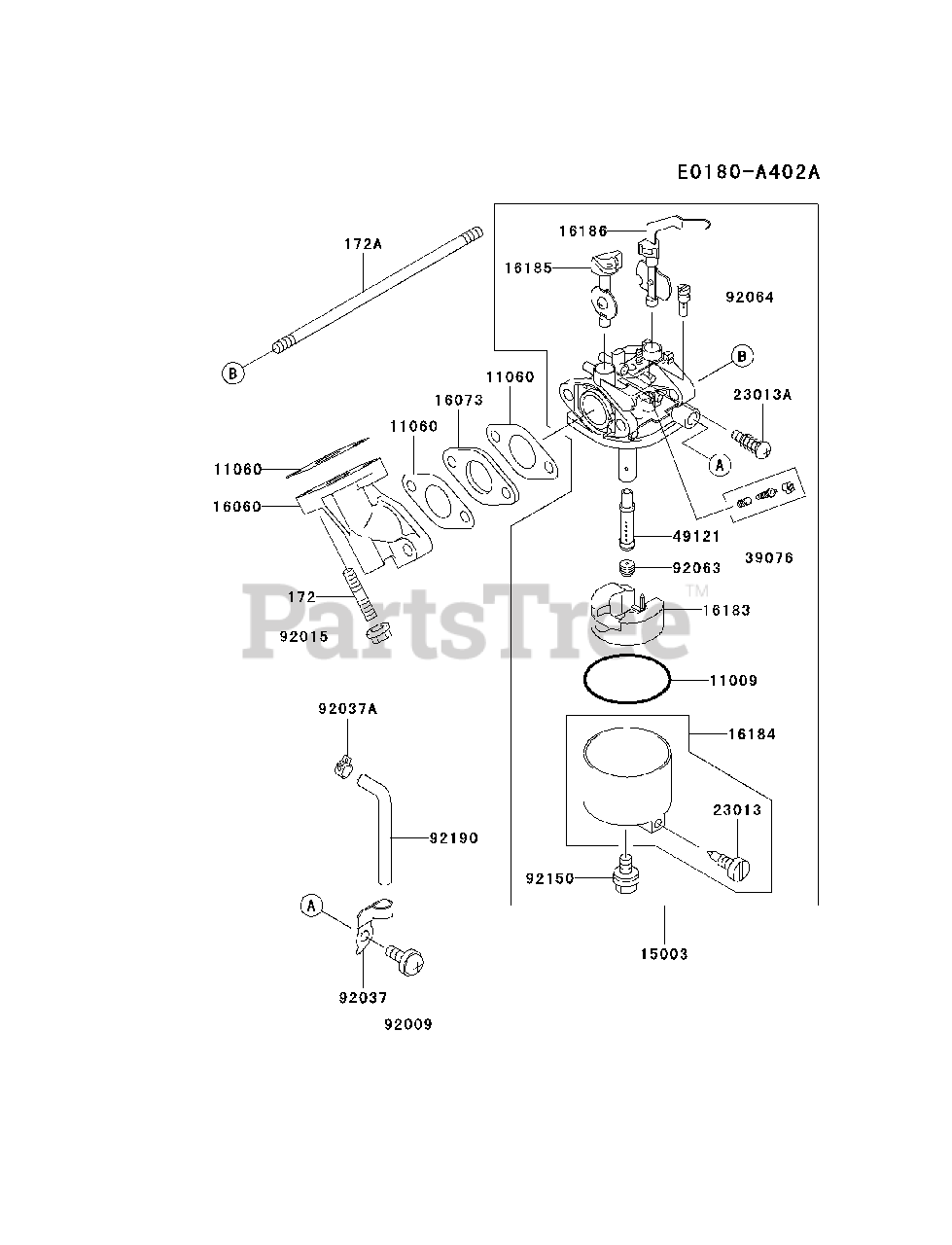

CARBURETOR Parts Diagram

  • Title

11009

Kawasaki 110092919

GASKET

$10.99

$

In Stock, Qty 20+

0

11060

Kawasaki 110602051

GASKET,CARBURETOR
(Superseded to 11009-2142)

$1.99

$

In Stock, Qty 20+

0

15003

Kawasaki 150032718

CARBURETOR-ASSY
(Superseded to 15003-2497)

$206.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 160602160

PIPE-INTAKE

$23.99

$

In Stock, only 2 left!

0

16073

Kawasaki 160732180

INSULATOR
(Superseded to 16073-2147)

$2.49

$

In Stock, Qty 7

0

16183

Kawasaki 161832003

FLOAT-ASSY

$49.99

$

Usually ships in 2-5 days

0

16184

Kawasaki 161842002

CHAMBER-ASSY-FLOAT

$50.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 161852022

VALVE-ASSY-THROTTLE

$58.99

$

Usually ships in 2-5 days

0

16186

Kawasaki 161862011

VALVE-ASSY-CHOKE

$57.99

$

Usually ships in 2-5 days

0

23013

Kawasaki 230132053

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

23013A

Kawasaki 230132054

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

39076

Kawasaki 390762055

LIMITER

$12.99

$

Usually ships in 2-5 days

0

49121

Kawasaki 491212212

NOZZLE-MAIN

$19.99

$

In Stock, only 1 left!

0

92009

Kawasaki 920092322

SCREW

$0.99

$

In Stock, Qty 14

0

92015

Kawasaki 920151367

NUT

$4.49

$

In Stock, Qty 20+

0

92037

Kawasaki 920372085

CLAMP

$2.99

$

Usually ships in 2-5 days

0

92037A

Kawasaki 920372139

CLAMP

$0.99

$

In Stock, only 2 left!

0

92063

Kawasaki 920632315

JET-MAIN,#65

$15.99

$

Usually ships in 2-5 days

0

92064

Kawasaki 920642086

JET-PILOT,#40

$14.99

$

In Stock, only 1 left!

0

92150

Kawasaki 921502209

BOLT

$7.49

$

In Stock, only 1 left!

0

92190

Kawasaki 921902105

TUBE

$1.99

$

In Stock, only 4 left!

0

172

Kawasaki 172BA0618

BOLT-STUD,6X18
(Superseded to 172G0618)

$1.49

$

In Stock, only 1 left!

0

172A

Kawasaki 172BA0673

BOLT-STUD,6X73
(Superseded to 172G0673)

$1.99

$

Usually ships in 2-5 days

0
