FE250D-AS00 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

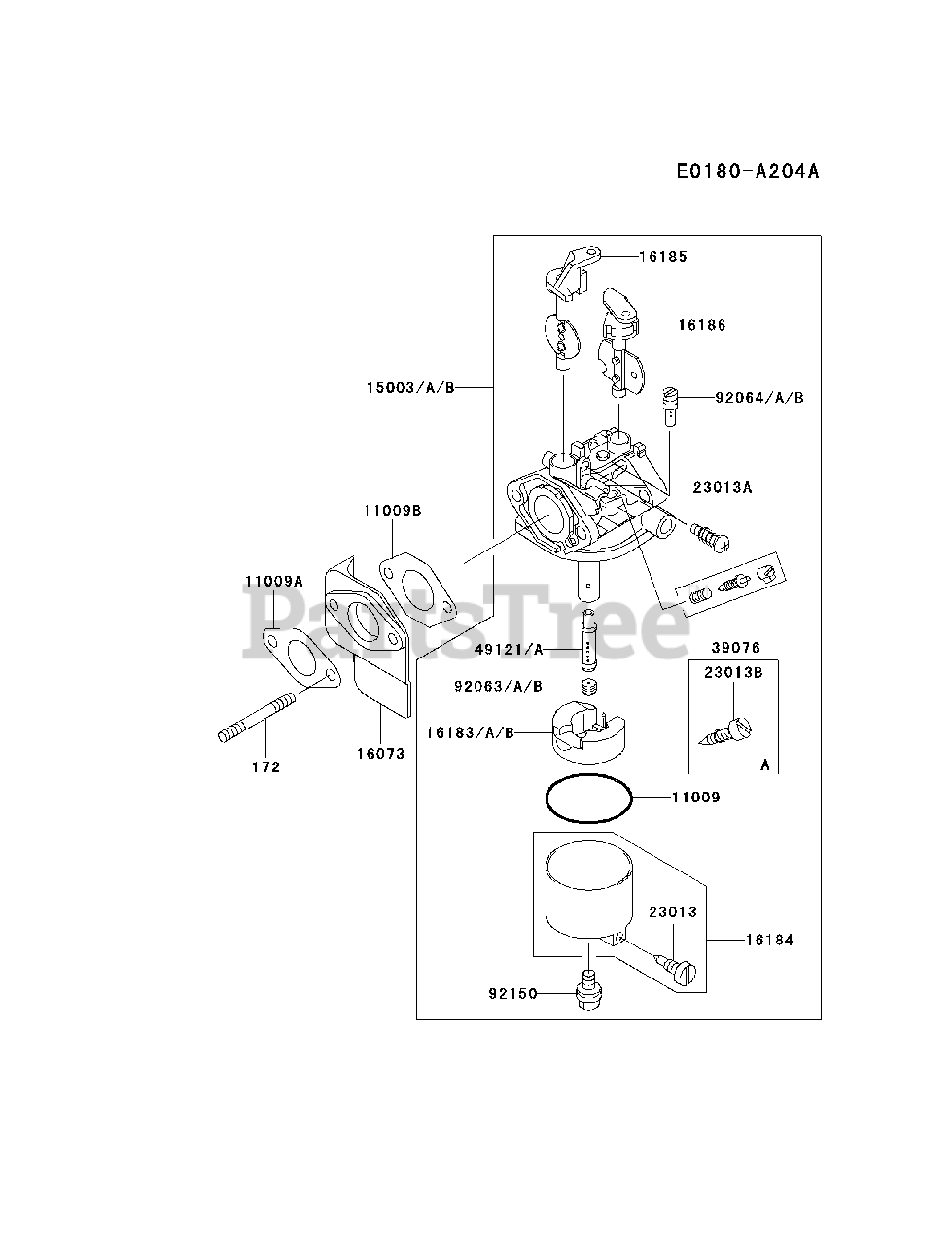

CARBURETOR Parts Diagram

  • Title

11009

Kawasaki 110092919

GASKET

$10.99

$

In Stock, Qty 20+

0

11009A

Kawasaki 11009-2927

GASKET,INSULATOR
(Superseded to 11060-2335)

$1.99

$

In Stock, Qty 9

0

11009B

Kawasaki 110092928

GASKET,CARBURETOR
(Superseded to 110602336)

$1.49

$

In Stock, Qty 19

0

15003

Kawasaki 15003-2150

CARBURETOR-ASSY.
(Superseded to 15003-2174)

Note: Substitute part, supplied until the stock is exhausted.

$192.99

$

Usually ships in 2-5 days

0

15003A

Kawasaki 150032174

CARBURETOR-ASSY.
(Superseded to 15003-2150)

$192.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 160732150

INSULATOR

$5.49

$

In Stock, only 3 left!

0

16183

Kawasaki 16183-2001

FLOAT-ASSY
(Superseded to 16183-2005)

Note: Substitute part, supplied until the stock is exhausted.

$49.99

$

Usually ships in 2-5 days

0

16183B

Kawasaki 16183-2004

FLOAT-ASSY
(Superseded to 16183-2005)

$49.99

$

Usually ships in 2-5 days

0

16184

Kawasaki 161842002

CHAMBER-ASSY-FLOAT

$50.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 161852003

VALVE-ASSY-THROTTLE

$58.99

$

In Stock, only 1 left!

0

16186

Kawasaki 161862002

VALVE-ASSY-CHOKE

$65.99

$

Usually ships in 2-5 days

0

23013

Kawasaki 230132053

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

23013A

Kawasaki 230132054

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

23013B

Kawasaki 230132055

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

49121

Kawasaki 49121-2156

NOZZLE-MAIN

$

$

Not available

92063

Kawasaki 920632209

JET-MAIN,#85

$16.99

$

Usually ships in 2-5 days

0

92063A

Kawasaki 920632211

JET-MAIN,#88

Note: Substitute part, supplied until the stock is exhausted.

$15.99

$

Usually ships in 2-5 days

0

92064

Kawasaki 920642082

JET-PILOT,#42

$20.99

$

Usually ships in 2-5 days

0

92150

Kawasaki 921502209

BOLT

$7.49

$

In Stock, only 1 left!

0

172

Kawasaki 172G0677

BOLT-STUD
(Superseded to 172BA0677)

$2.49

$

In Stock, only 2 left!

0
