FE250D-AS07 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

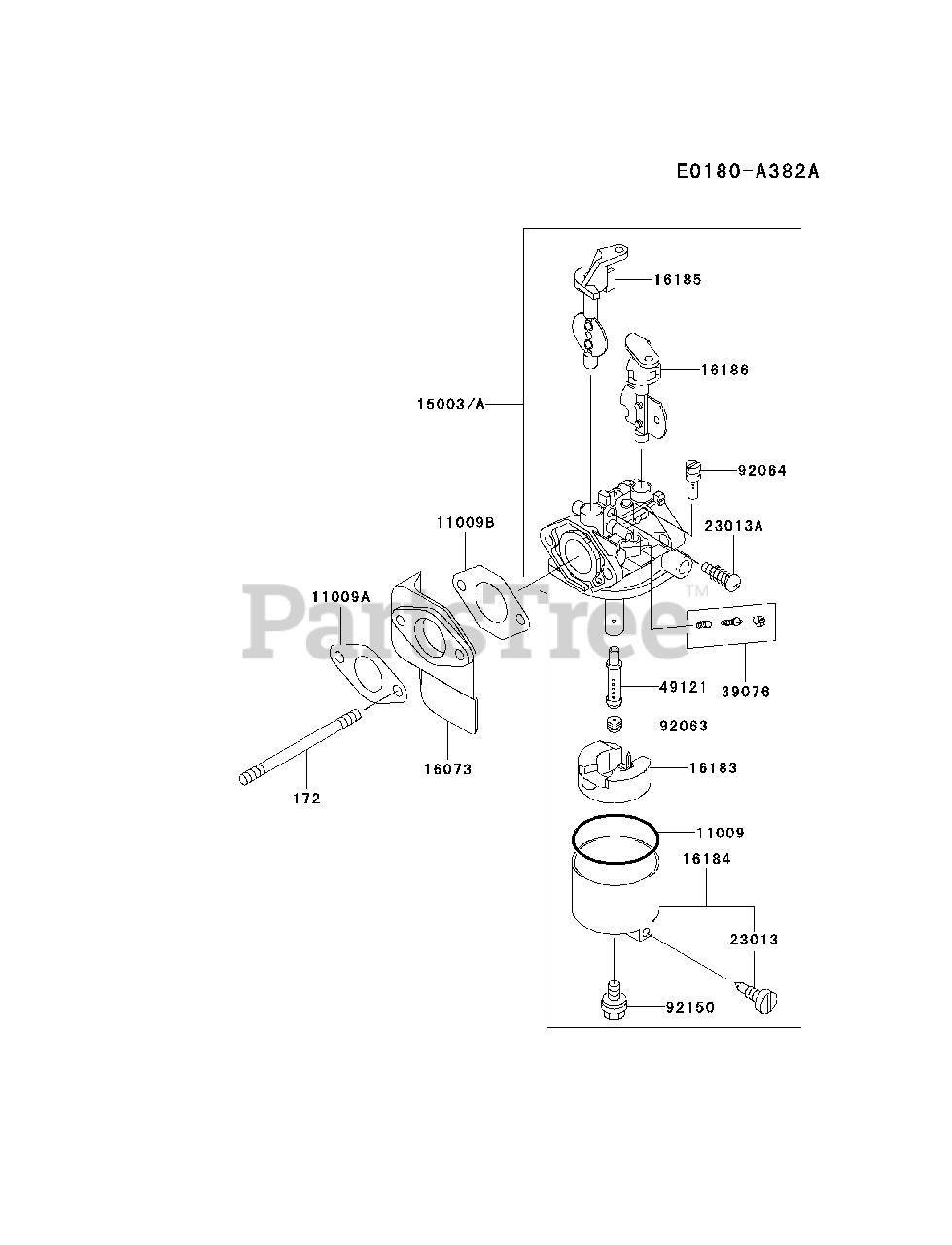

CARBURETOR Parts Diagram

  • Title

11009

Kawasaki 110092919

GASKET

$10.99

$

In Stock, only 2 left!

0

11009A

Kawasaki 11009-2927

GASKET,INSULATOR
(Superseded to 11060-2335)

$1.99

$

In Stock, Qty 10

0

11009B

Kawasaki 110092928

GASKET,CARBURETOR
(Superseded to 110602336)

$1.49

$

In Stock, Qty 10

0

15003

Kawasaki 15003-2532

CARBURETOR-ASSY
(Superseded to 15003-2739)

Note: Substitute part, supplied until the stock is exhausted.

$239.99

$

Usually ships in 2-5 days

0

15003A

Kawasaki 150032739

CARBURETOR-ASSY
(Superseded to 15003-2532)

$239.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 160732150

INSULATOR

$5.49

$

In Stock, only 3 left!

0

16183

Kawasaki 161832005

FLOAT-ASSY
(Superseded to 16183-2001)

$49.99

$

Usually ships in 2-5 days

0

16184

Kawasaki 161842002

CHAMBER-ASSY-FLOAT

$50.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 161852003

VALVE-ASSY-THROTTLE

$58.99

$

In Stock, only 1 left!

0

16186

Kawasaki 161862002

VALVE-ASSY-CHOKE

$65.99

$

Usually ships in 2-5 days

0

23013

Kawasaki 230132053

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

23013A

Kawasaki 230132054

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

39076

Kawasaki 390762055

LIMITER

$12.99

$

Usually ships in 2-5 days

0

49121

Kawasaki 491212210

NOZZLE-MAIN

$18.99

$

Usually ships in 2-5 days

0

92063

Kawasaki 920632283

JET-MAIN,#82

$14.99

$

Usually ships in 2-5 days

0

92064

Kawasaki 920642082

JET-PILOT,#42

$20.99

$

Usually ships in 2-5 days

0

92150

Kawasaki 921502209

BOLT

$7.49

$

In Stock, only 1 left!

0

172

Kawasaki 172G0677

BOLT-STUD
(Superseded to 172BA0677)

$2.49

$

In Stock, only 2 left!

0
