FE250D-AS08 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

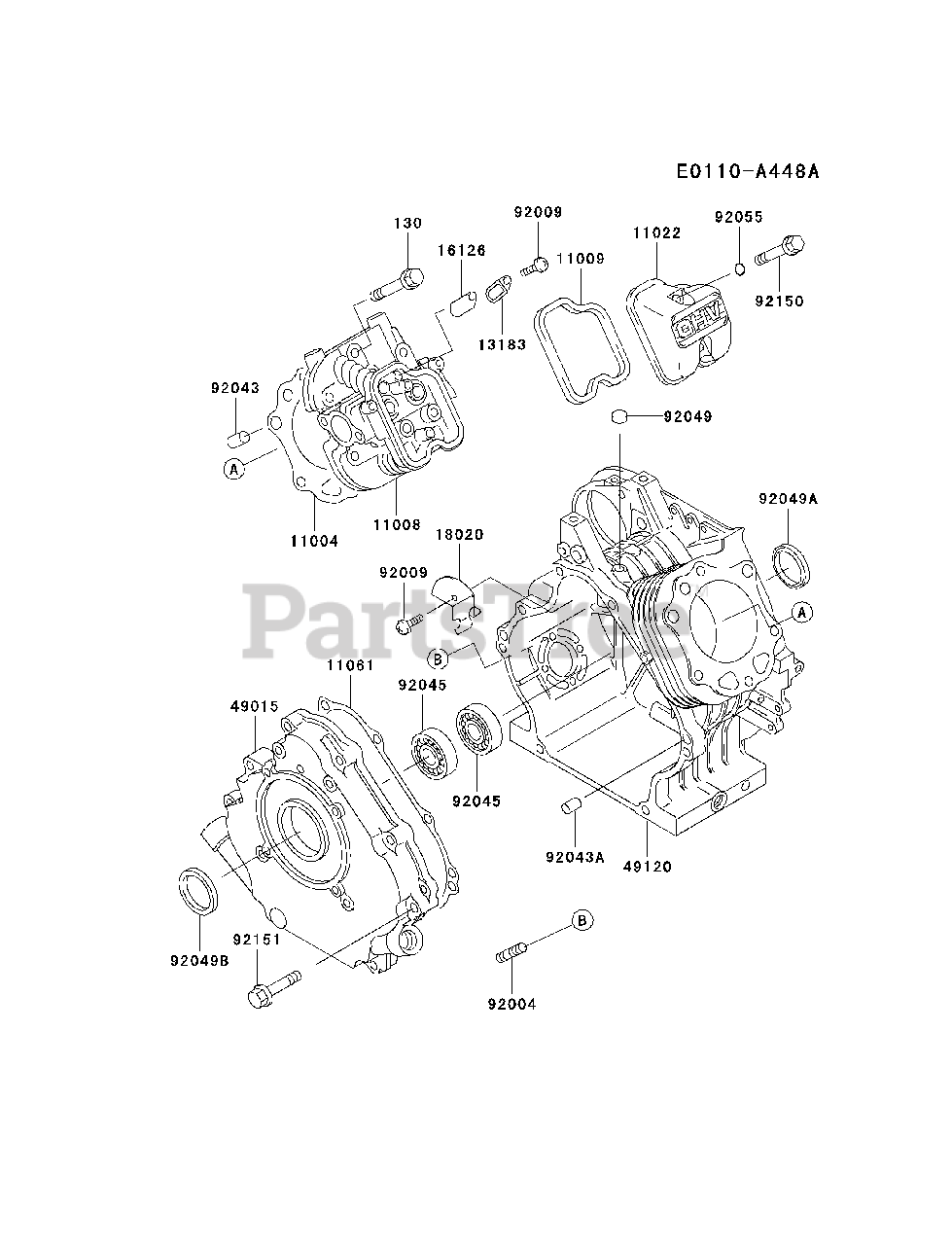

CYLINDER/CRANKCASE Parts Diagram

  • Title

11004

Kawasaki 110042106

GASKET-HEAD

$13.99

$

Usually ships in 2-5 days

0

11008

Kawasaki 110082086

HEAD-COMP-CYLINDER
(Superseded to 11008-2111)

$287.99

$

Usually ships in 2-5 days

0

11009

Kawasaki 110092923

GASKET,ROCKER CASE

$10.99

$

Usually ships in 2-5 days

0

11022

Kawasaki 110226002

CASE-ROCKER

$39.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 110612069

GASKET
(Superseded to 11009-2924)

$37.99

$

Usually ships in 2-5 days

0

13183

Kawasaki 131832299

PLATE

$1.49

$

In Stock, Qty 12

0

16126

Kawasaki 161262107

VALVE

$0.99

$

In Stock, Qty 17

0

18020

Kawasaki 18020-2073

BAFFLE

$

$

Not available

49015

Kawasaki 490156237

COVER-CRANKCASE
(Superseded to 49015-6108)

$235.99

$

Usually ships in 2-5 days

0

49120

Kawasaki 49120-2309

CRANKCASE-COMP

$

$

Not available

92004

Kawasaki 920042083

STUD,6X14

$1.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920092308

SCREW

$0.99

$

In Stock, Qty 12

0

92043

Kawasaki 920431037

PIN

$0.99

$

In Stock, Qty 20+

0

92043A

Kawasaki 920431263

PIN

$0.99

$

In Stock, Qty 20+

0

92045

Kawasaki 920452188

BEARING-BALL,6206CM

$24.99

$

In Stock, only 2 left!

0

92049

Kawasaki 920492097

SEAL-OIL

$2.49

$

In Stock, Qty 20+

0

92049A

Kawasaki 920492199

SEAL-OIL

$6.49

$

In Stock, Qty 19

0

92049B

Kawasaki 920492220

SEAL-OIL

$9.49

$

In Stock, Qty 20+

0

92055

Kawasaki 920551343

RING-O

$0.99

$

In Stock, Qty 15

0

92150

Kawasaki 921502145

BOLT,6X35

$0.99

$

In Stock, Qty 8

0

92151

Kawasaki 921512130

BOLT,8X40

$2.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130T0845

BOLT-FLANGED
(Superseded to 130CA0845)

$1.49

$

In Stock, Qty 5

0
