FE250D-AS09 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

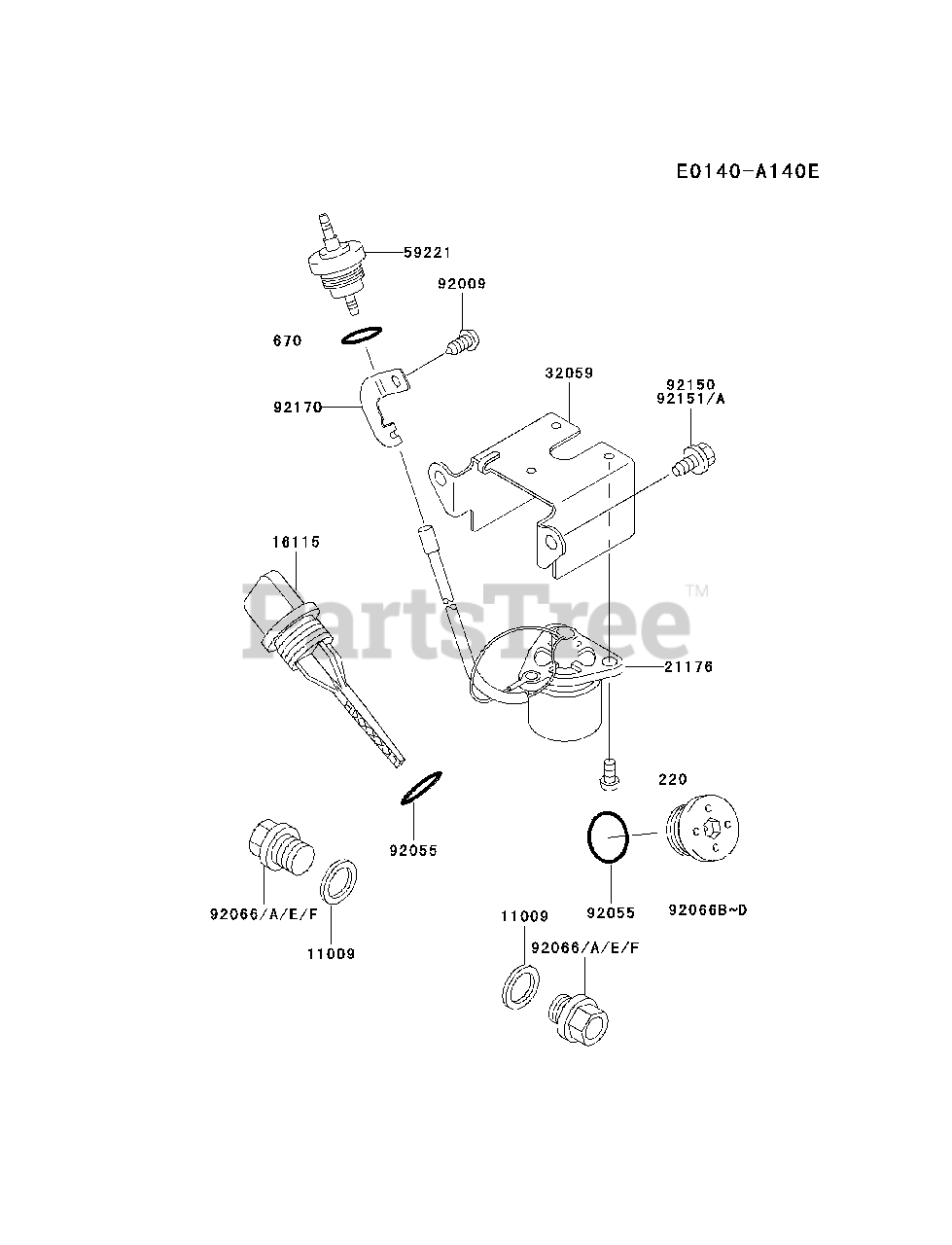

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 110092175

GASKET,14.2X19X2
(Superseded to 317370-7883-00)

$1.99

$

In Stock, Qty 16

0

16115

Kawasaki 161152079

CAP-OIL FILLER

$5.49

$

Usually ships in 2-5 days

0

21176

Kawasaki 211762091

SENSOR

$57.99

$

Usually ships in 2-5 days

0

32059

Kawasaki 32059-2089

BRACKET-SWITCH

$

$

Not available

59221

Kawasaki 592212123

CONNECTOR-CORD
(Superseded to 59221-2054)

$51.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920092308

SCREW

$0.99

$

In Stock, Qty 12

0

92055

Kawasaki 920552185

RING-O,20MM

$1.49

$

In Stock, Qty 12

0

92066

Kawasaki 92066-2203

PLUG,DRAIN
(Superseded to 92066-2253)

$2.49

$

In Stock, Qty 20+

0

92066B

Kawasaki 92066-2222

PLUG
(Superseded to 92066-2243)

Note: Substitute part, supplied until the stock is exhausted.

$6.49

$

In Stock, only 1 left!

0

92066D

Kawasaki 920662243

PLUG

$6.49

$

In Stock, only 1 left!

0

92150

Kawasaki 92150-2212

BOLT
(Superseded to 92151-2166)

Note: Substitute part, supplied until the stock is exhausted.

$0.99

$

In Stock, Qty 8

0

92151A

Kawasaki 921512166

BOLT

$0.99

$

In Stock, Qty 8

0

92170

Kawasaki 92170-2052

CLAMP

$

$

Not available

220

Kawasaki 220AA0408

SCREW-PAN-CROS,4X8
(Superseded to 220B0408)

$0.99

$

In Stock, Qty 9

0

670

Kawasaki 670B2015

O RING,15MM

$1.49

$

In Stock, Qty 7

0
