FE250D-BS01 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

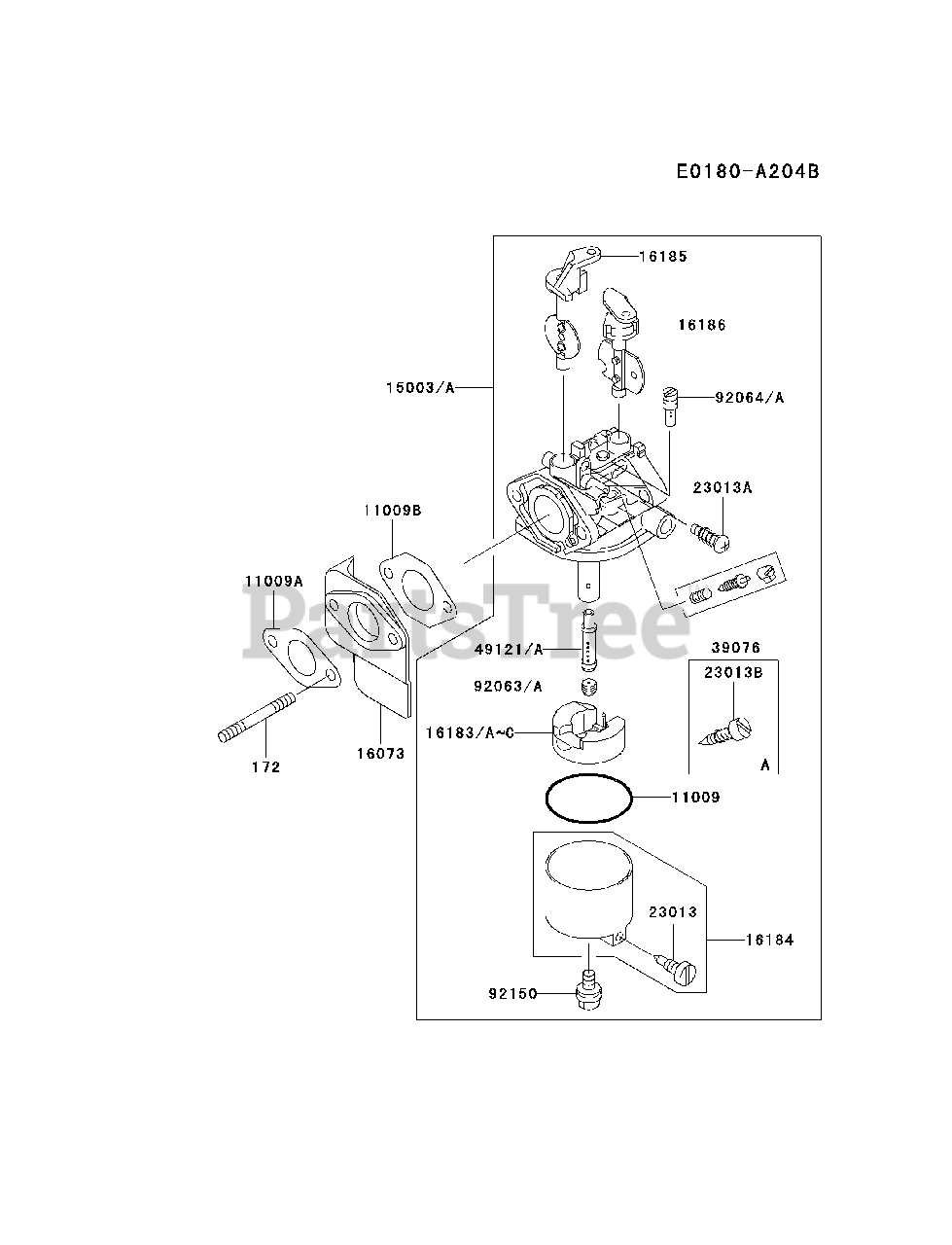

CARBURETOR Parts Diagram

  • Title

11009

Kawasaki 11009-2919

GASKET

$10.99

$

In Stock, only 2 left!

0

11009A

Kawasaki 11009-2927

GASKET,INSULATOR
(Superseded to 11060-2335)

$1.99

$

In Stock, Qty 17

0

11009B

Kawasaki 11009-2928

GASKET,CARBURETOR
(Superseded to 11060-2336)

$1.49

$

In Stock, Qty 20+

0

15003A

Kawasaki 15003-2393

CARBURETOR-ASSY
(Superseded to 15003-2646)

$249.99

$

In Stock, only 1 left!

0

16073

Kawasaki 16073-2150

INSULATOR

$5.49

$

In Stock, Qty 6

0

16183A

Kawasaki 16183-2004

FLOAT-ASSY
(Superseded to 16183-2005)

$49.99

$

In Stock, only 1 left!

0

16183C

Kawasaki 16183-2005

FLOAT-ASSY
(Superseded to 16183-2001)

$49.99

$

In Stock, only 1 left!

0

16184

Kawasaki 16184-2002

CHAMBER-ASSY-FLOAT

$50.99

$

In Stock, only 1 left!

0

16185

Kawasaki 16185-2003

VALVE-ASSY-THROTTLE

$58.99

$

In Stock, only 1 left!

0

16186

Kawasaki 16186-2002

VALVE-ASSY-CHOKE

$65.99

$

Usually ships in 2-5 days

0

23013

Kawasaki 23013-2053

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

23013A

Kawasaki 23013-2054

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

39076

Kawasaki 39076-2055

LIMITER

$12.99

$

Usually ships in 2-5 days

0

49121A

Kawasaki 49121-2210

NOZZLE-MAIN

$18.99

$

Usually ships in 2-5 days

0

92063A

Kawasaki 92063-2284

JET-MAIN

$11.99

$

Usually ships in 2-5 days

0

92064A

Kawasaki 92064-2086

JET-PILOT,#40

$14.99

$

Usually ships in 2-5 days

0

92150

Kawasaki 92150-2209

BOLT

$7.49

$

Usually ships in 2-5 days

0

172

Kawasaki 172G0677

BOLT-STUD
(Superseded to 172BA0677)

$2.49

$

In Stock, Qty 5

0
