FE290D-AS03 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

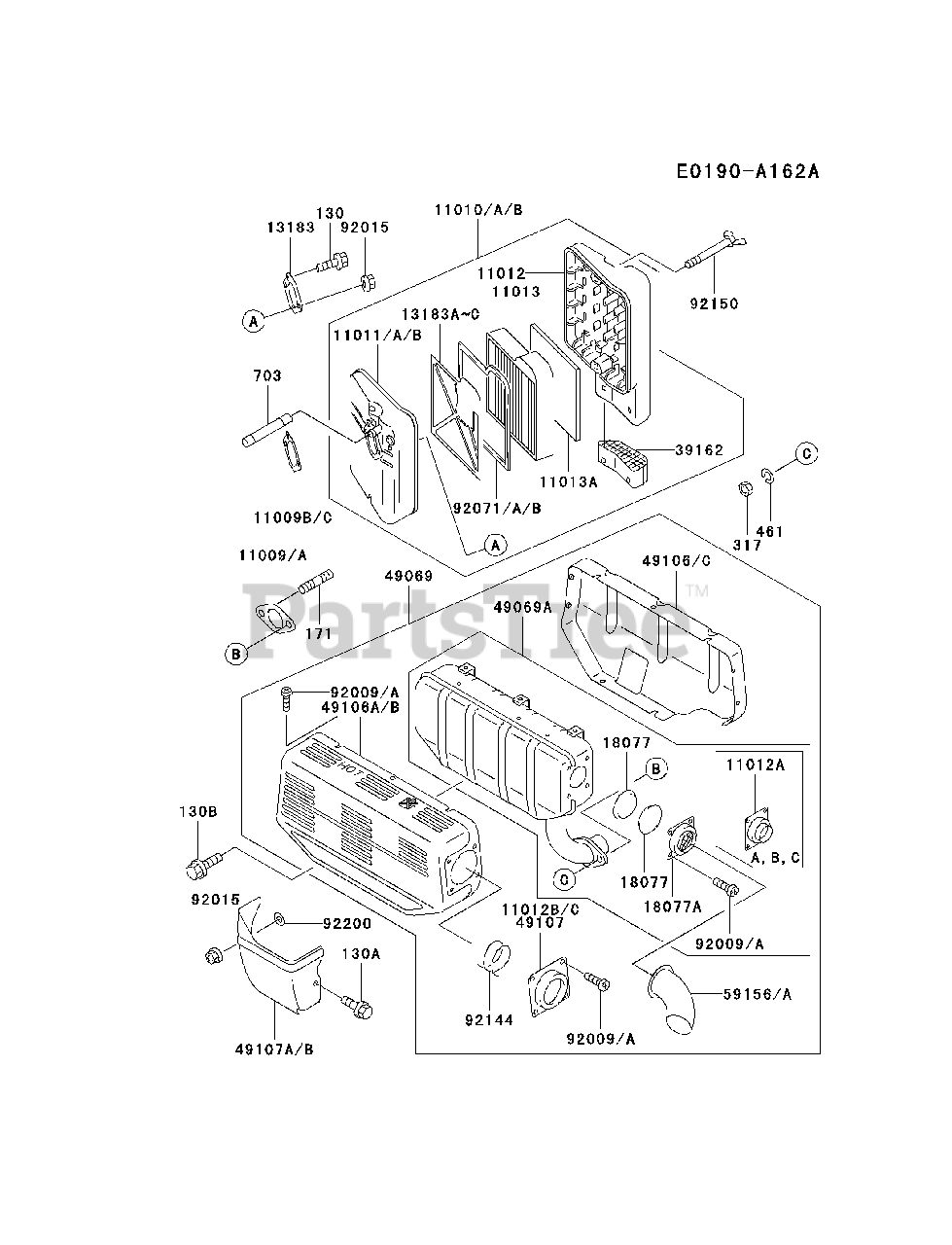

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11009

Kawasaki 11009-2163

GASKET
(Superseded to 11009-2487)

$4.99

$

In Stock, Qty 6

0

11009B

Kawasaki 11009-2867

GASKET,AIR FILTER
(Superseded to 11060-2334)

$1.99

$

In Stock, Qty 8

0

11010

Kawasaki 11010-2393

FILTER-ASSY-AIR
(Superseded to 11010-2404)

$94.99

$

Usually ships in 2-5 days

0

11010B

Kawasaki 11010-2404

FILTER-ASSY-AIR
(Superseded to 11010-2393)

$94.99

$

Usually ships in 2-5 days

0

11011

Kawasaki 11011-2214

CASE-AIR FILTER
(Superseded to 11011-2221)

$23.99

$

Usually ships in 2-5 days

0

11011B

Kawasaki 11011-2221

CASE-AIR FILTER
(Superseded to 11011-2214)

$23.99

$

Usually ships in 2-5 days

0

11012

Kawasaki 11012-2276

CAP,AIR FILTER

$17.99

$

In Stock, only 4 left!

0

11012A

Kawasaki 11012-2281

CAP,MUFFLER

$

$

Not available

11013

Kawasaki 11013-2128

ELEMENT-AIR FILTER

$20.99

$

In Stock, only 2 left!

0

11013A

Kawasaki 11013-2129

ELEMENT-AIR FILTER

$2.99

$

In Stock, Qty 9

0

13183

Kawasaki 13183-2322

PLATE

$2.49

$

In Stock, only 3 left!

0

13183A

Kawasaki 13183-2342

PLATE,AIR FILTER
(Superseded to 13183-2388)

$10.99

$

In Stock, Qty 6

0

13183C

Kawasaki 13183-2388

PLATE,AIR FILTER
(Superseded to 13183-2342)

$10.99

$

In Stock, Qty 6

0

18077

Kawasaki 18077-2087

ARRESTER-SPARK

$7.99

$

Usually ships in 2-5 days

0

39162

Kawasaki 39162-2052

SILENCER-INTAKE

$3.49

$

In Stock, only 3 left!

0

49069A

Kawasaki 49069-6111

MUFFLER-ASSY

$213.99

$

Usually ships in 2-5 days

0

49106

Kawasaki 49106-2459

COVER-MUFFLER

$

$

Not available

49106A

Kawasaki 49106-2460

COVER-MUFFLER
(Superseded to 49106-2460-NN)

$63.99

$

Usually ships in 2-5 days

0

49107

Kawasaki 49107-2123

COVER-EXHAUST PIPE
(Superseded to 49107-2123-NN)

$19.99

$

Usually ships in 2-5 days

0

49107A

Kawasaki 49107-2124-9H

COVER-EXHAUST PIPE

$

$

Not available

92009

Kawasaki 92009-2166

SCREW,5X8

$0.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 7

0

92071

Kawasaki 92071-2133

GROMMET
(Superseded to 92071-2136)

$11.99

$

In Stock, Qty 7

0

92071B

Kawasaki 92071-2136

GROMMET

$11.99

$

In Stock, Qty 7

0
