FE290D-AS16 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

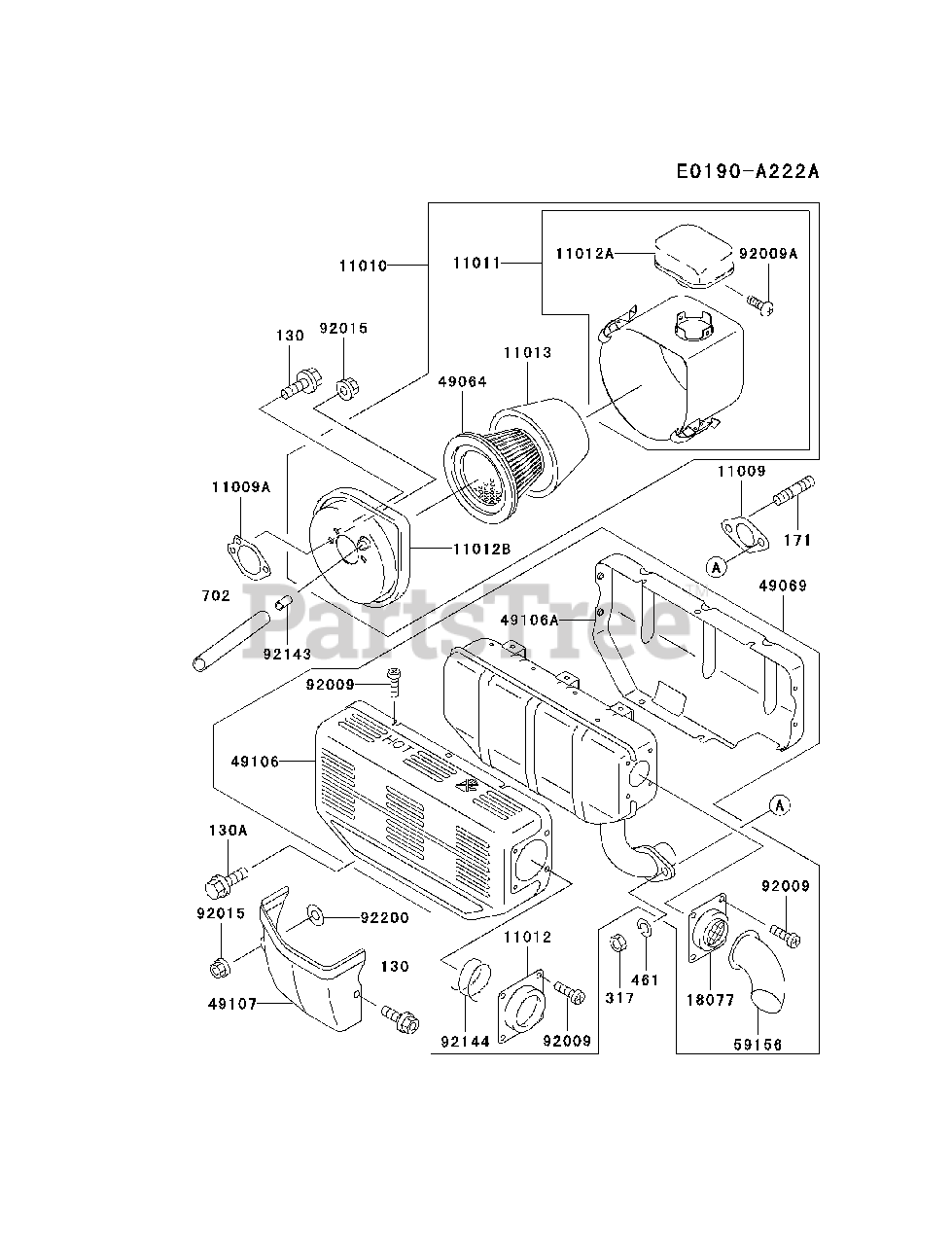

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11009

Kawasaki 11009-2487

GASKET,MUFFLER
(Superseded to 11009-2163)

$4.99

$

In Stock, Qty 6

0

11009A

Kawasaki 11009-2925

GASKET,AIR FILTER
(Superseded to 11060-2334)

$1.99

$

In Stock, Qty 8

0

11010

Kawasaki 11010-2474-9H

FILTER-ASSY-AIR

$177.99

$

Usually ships in 2-5 days

0

11011

Kawasaki 11011-2247-9H

CASE-AIR FILTER

$73.99

$

Usually ships in 2-5 days

0

11012

Kawasaki 11012-2322-9X

CAP

$10.99

$

Usually ships in 2-5 days

0

11012A

Kawasaki 11012-2357

CAP,AIR FILTER

$8.99

$

Usually ships in 2-5 days

0

11012B

Kawasaki 11012-2358

CAP,AIR FILTER

$40.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-2159

ELEMENT-AIR FILTER

$13.99

$

Usually ships in 2-5 days

0

18077

Kawasaki 18077-2094

ARRESTER-SPARK

$12.99

$

Usually ships in 2-5 days

0

49064

Kawasaki 49064-2077

FILTER-AIR

$60.99

$

Usually ships in 2-5 days

0

49069

Kawasaki 49069-2276-9X

MUFFLER-ASSY

$215.99

$

Usually ships in 2-5 days

0

49106

Kawasaki 49106-2545-9X

COVER-MUFFLER

$

$

Not available

49106A

Kawasaki 49106-2546-9X

COVER-MUFFLER

$

$

Not available

49107

Kawasaki 49107-2140-9H

COVER-EXHAUST PIPE

$

$

Not available

59156

Kawasaki 59156-2230-9X

PIPE-TAIL
(Superseded to 59156-2230)

$25.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2322

SCREW

$0.99

$

In Stock, only 2 left!

0

92009A

Kawasaki 92009-2388

SCREW

$0.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 7

0

92143

Kawasaki 92143-2207

COLLAR,6.2X8.1X25

$3.49

$

Usually ships in 2-5 days

0

92144

Kawasaki 92144-2262

SPRING

$4.99

$

In Stock, only 1 left!

0

92200

Kawasaki 92200-2070

WASHER
(Superseded to 92022-2374)

$1.49

$

In Stock, only 4 left!

0

130

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130G0816

BOLT-FLANGED
(Superseded to 130BA0816)

$1.99

$

In Stock, Qty 5

0

171

Kawasaki 171G0820

BOLT-STUD
(Superseded to 171BA0820)

$1.99

$

In Stock, Qty 6

0

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 20+

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0

702

Kawasaki 702A081000

TUBE-RUBBER

$12.99

$

Usually ships in 2-5 days

0
