FE290D-BS13 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

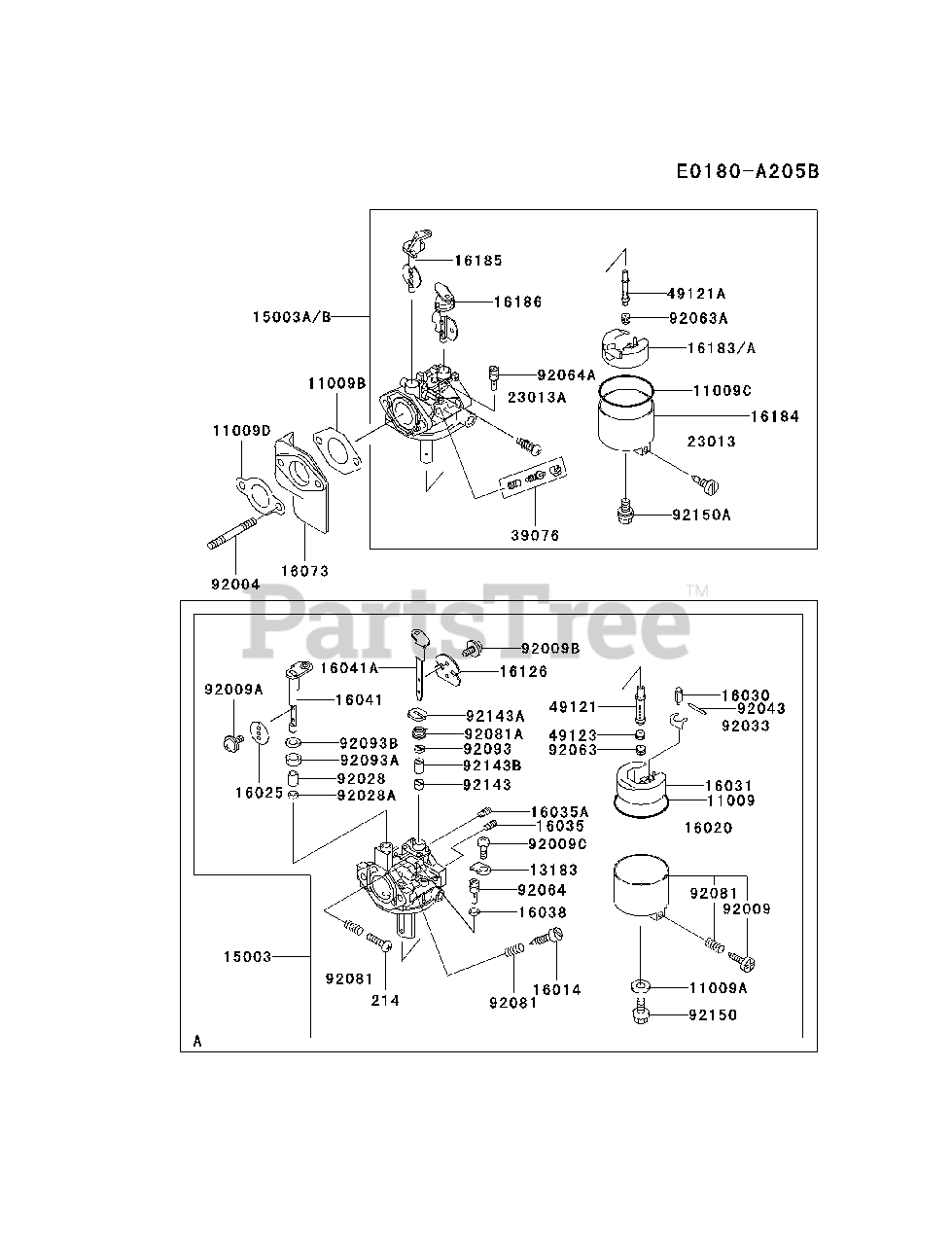

CARBURETOR Parts Diagram

  • Title

11009B

Kawasaki 110092827

GASKET,CARBURETOR

$3.99

$

In Stock, Qty 14

0

11009C

Kawasaki 110092919

GASKET

$11.99

$

In Stock, Qty 20+

0

11009D

Kawasaki 110092939

GASKET,INSULATOR
(Superseded to 11009-2825)

$1.99

$

In Stock, Qty 20+

0

15003A

Kawasaki 15003-2379

CARBURETOR-ASSY
(Superseded to 15003-2647)

Note: Substitute part, supplied until the stock is exhausted.

$274.99

$

Usually ships in 2-5 days

0

15003B

Kawasaki 150032647

CARBURETOR-ASSY
(Superseded to 15003-2379)

$274.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 160732154

INSULATOR
(Superseded to 16073-2135)

$10.99

$

In Stock, only 4 left!

0

16183

Kawasaki 16183-2004

FLOAT-ASSY
(Superseded to 16183-2005)

Note: Substitute part, supplied until the stock is exhausted.

$54.99

$

In Stock, only 1 left!

0

16183A

Kawasaki 161832005

FLOAT-ASSY
(Superseded to 16183-2001)

$54.99

$

In Stock, only 1 left!

0

16184

Kawasaki 161842002

CHAMBER-ASSY-FLOAT

$55.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 161852008

VALVE-ASSY-THROTTLE

$64.99

$

Usually ships in 2-5 days

0

16186

Kawasaki 161862018

VALVE-ASSY-CHOKE

$72.99

$

Usually ships in 2-5 days

0

23013

Kawasaki 230132053

SCREW-ASSY

$13.99

$

Usually ships in 2-5 days

0

23013A

Kawasaki 230132054

SCREW-ASSY

$10.99

$

Usually ships in 2-5 days

0

39076

Kawasaki 390762055

LIMITER

$13.99

$

Usually ships in 2-5 days

0

49121A

Kawasaki 491212193

NOZZLE-MAIN
(Superseded to 49121-2209)

$20.99

$

Usually ships in 2-5 days

0

92004

Kawasaki 920042125

STUD,6X80

$3.99

$

Usually ships in 2-5 days

0
