FE290D-BS22 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

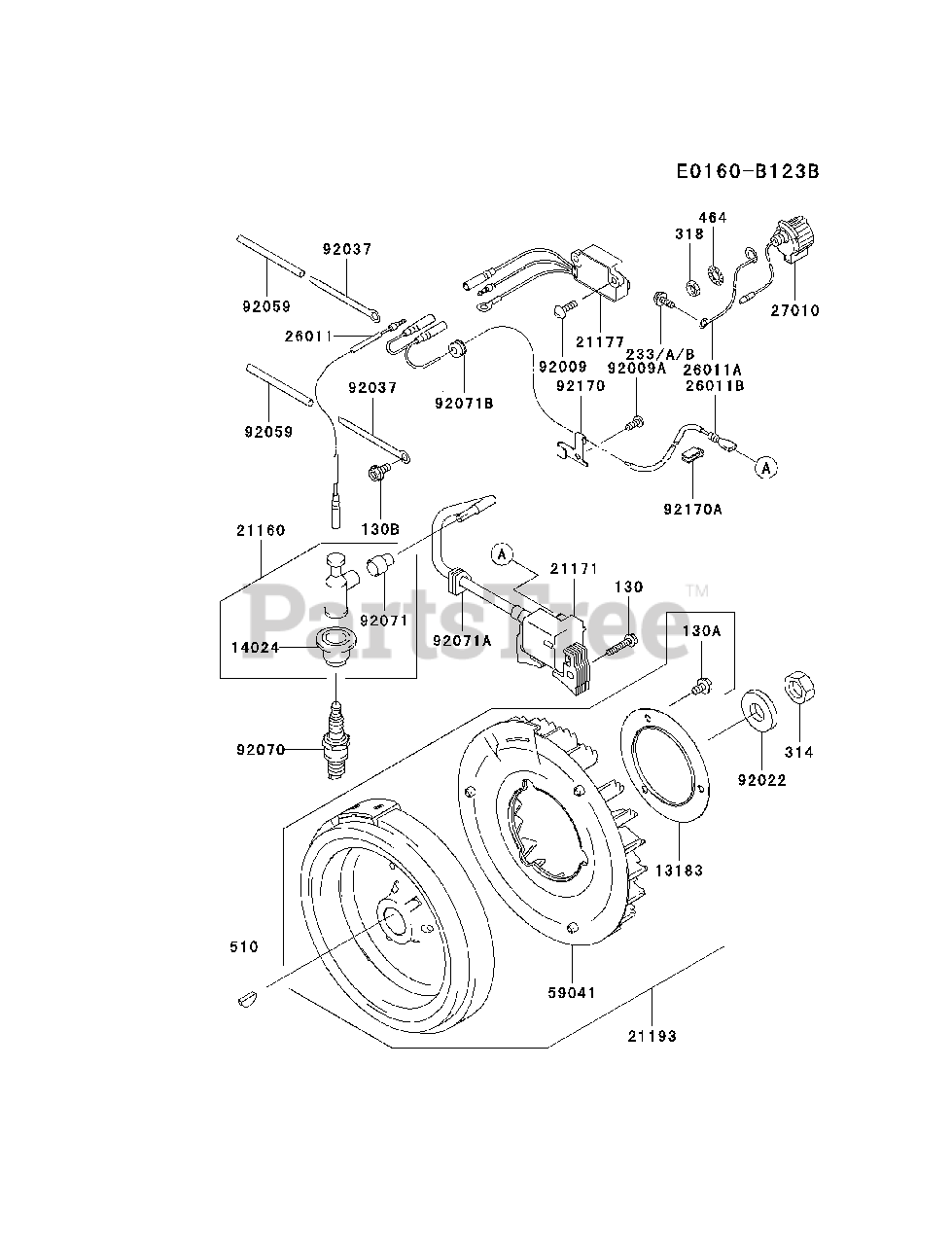

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

13183

Kawasaki 131832407

PLATE

$4.49

$

In Stock, only 1 left!

0

14024

Kawasaki 140242234

COVER

$3.49

$

In Stock, only 1 left!

0

21160

Kawasaki 211602051

CAP-ASSY-PLUG

$20.99

$

In Stock, only 3 left!

0

21171

Kawasaki 211712207

COIL-ASSY-IGNITION

$120.99

$

In Stock, only 3 left!

0

21177

Kawasaki 211772064

CONTROLLER

$51.99

$

Usually ships in 2-5 days

0

21193

Kawasaki 211932161

FLYWHEEL-ASSY

$390.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 260112243

WIRE-LEAD

$3.49

$

Usually ships in 2-5 days

0

26011A

Kawasaki 260112266

WIRE-LEAD

$2.49

$

In Stock, only 3 left!

0

26011B

Kawasaki 260112353

WIRE-LEAD

$9.49

$

Usually ships in 2-5 days

0

27010

Kawasaki 270102066

SWITCH
(Superseded to 314433-8511B)

$22.99

$

In Stock, only 2 left!

0

59041

Kawasaki 590412082

FAN

$14.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920092303

SCREW

$2.99

$

Usually ships in 2-5 days

0

92009A

Kawasaki 920092308

SCREW

$0.99

$

In Stock, Qty 12

0

92022

Kawasaki 920222205

WASHER

$2.99

$

Usually ships in 2-5 days

0

92037

Kawasaki 920372006

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92059

Kawasaki 920592011

TUBE,5X6X75

$0.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2077

PLUG-SPARK,BPR5ES,SOLID
(Superseded to 4006)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92071

Kawasaki 920712008

GROMMET

$1.49

$

Usually ships in 2-5 days

0

92071A

Kawasaki 920712112

GROMMET

$6.99

$

In Stock, only 1 left!

0

92071B

Kawasaki 920712125

GROMMET

$1.99

$

In Stock, only 1 left!

0

92170

Kawasaki 921702016

CLAMP

$2.99

$

In Stock, only 1 left!

0

92170A

Kawasaki 921702017

CLAMP

$4.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0525

BOLT-FLANGED,5X25
(Superseded to 130B0525)

$1.49

$

In Stock, Qty 11

0

130A

Kawasaki 130BA0610

BOLT-FLANGED,6X10
(Superseded to 130B0610)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130BA0612

BOLT-FLANGED,6X12
(Superseded to 92009-7008)

$1.99

$

In Stock, Qty 20+

0

233A

Kawasaki 233AB0514

SCREW-PAN-WP+-,5X14

$0.99

$

In Stock, Qty 8

0

233B

Kawasaki 233F0514

SCREW-PAN-WP+-,5X14
(Superseded to 233AB0514)

Note: Substitute part, supplied until the stock is exhausted.

$0.99

$

In Stock, Qty 8

0

314

Kawasaki 314BA1600

NUT-HEX-FINE,16MM
(Superseded to 314G1600)

$2.49

$

Usually ships in 2-5 days

0

318

Kawasaki 318AA0800

NUT-HEX-SMALL,8MM

$0.99

$

In Stock, only 3 left!

0

464

Kawasaki 464EA0800

WASHER-TOOTHED,8MM

$0.99

$

Usually ships in 2-5 days

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
