FE290D-CS20 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

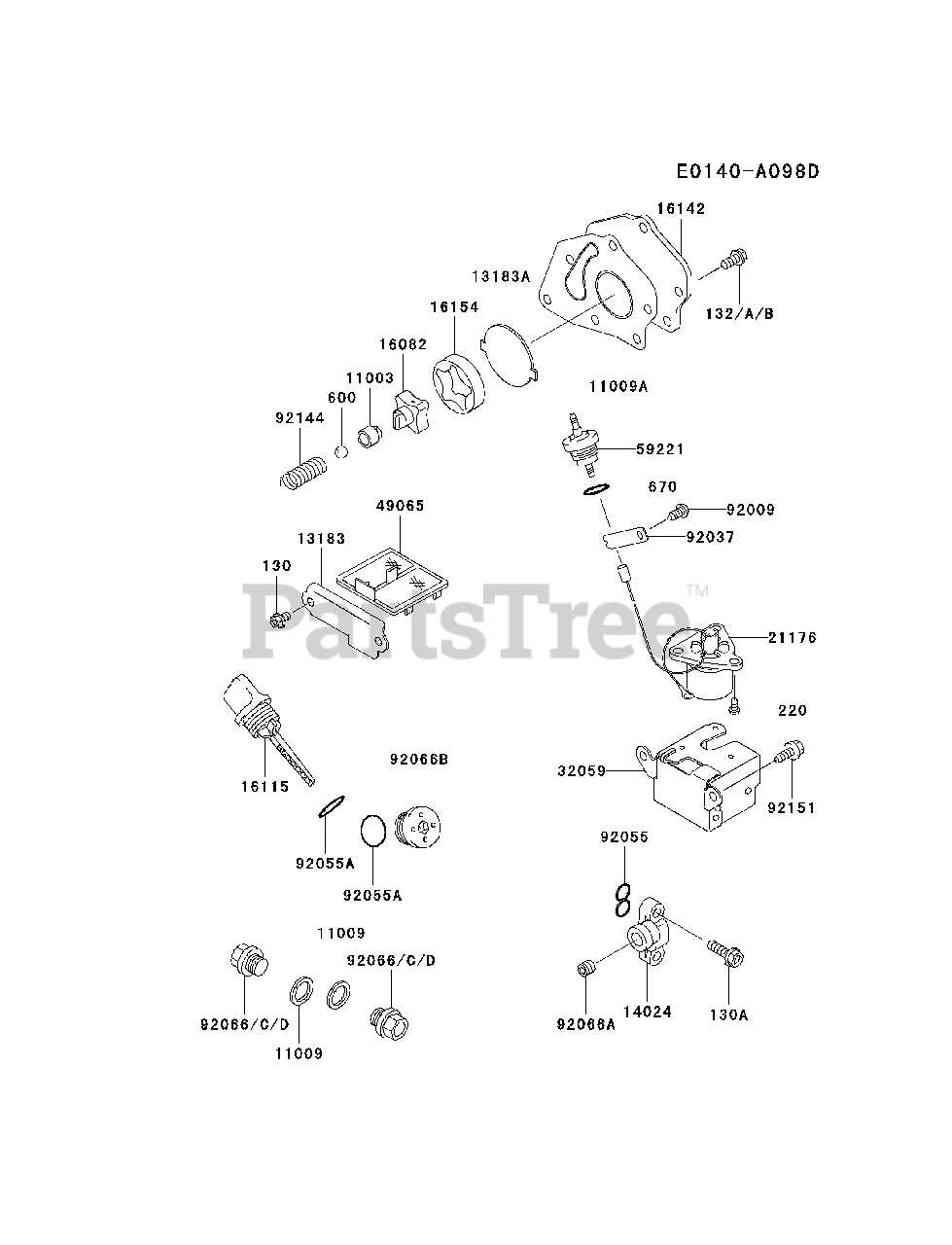

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

11003

Kawasaki 110032089

SEAT-VALVE

$7.49

$

Usually ships in 2-5 days

0

11009

Kawasaki 110092175

GASKET,14.2X19X2
(Superseded to 317370-7883-00)

$1.99

$

In Stock, Qty 6

0

11009A

Kawasaki 110092828

GASKET,OIL PUMP

$7.49

$

In Stock, Qty 20+

0

13183

Kawasaki 131832295

PLATE,OIL FILTER

$1.99

$

In Stock, Qty 10

0

13183A

Kawasaki 131832298

PLATE,OIL PUMP

$2.49

$

In Stock, Qty 6

0

14024

Kawasaki 140242228

COVER

$14.99

$

Usually ships in 2-5 days

0

16082

Kawasaki 160822062

PUMP-ASSY-OIL

$32.99

$

In Stock, only 2 left!

0

16115

Kawasaki 161152079

CAP-OIL FILLER

$5.49

$

Usually ships in 2-5 days

0

16142

Kawasaki 161422062

COVER-PUMP

$7.49

$

In Stock, Qty 13

0

16154

Kawasaki 161542054

ROTOR-PUMP,OUT

$9.49

$

In Stock, only 2 left!

0

21176

Kawasaki 211762099

SENSOR
(Superseded to 21176-2085)

$57.99

$

In Stock, only 2 left!

0

32059

Kawasaki 320592085

BRACKET-SWITCH

$11.99

$

In Stock, only 1 left!

0

49065

Kawasaki 490652068

FILTER-OIL

$7.99

$

In Stock, only 2 left!

0

59221

Kawasaki 592212123

CONNECTOR-CORD
(Superseded to 59221-2054)

$51.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920092308

SCREW

$0.99

$

In Stock, only 2 left!

0

92037

Kawasaki 920372051

CLAMP

$0.99

$

Usually ships in 2-5 days

0

92055

Kawasaki 920552063

RING-O

$4.49

$

In Stock, only 3 left!

0

92055A

Kawasaki 920552185

RING-O,20MM

$1.49

$

In Stock, only 2 left!

0

92066

Kawasaki 92066-2203

PLUG,DRAIN
(Superseded to 92066-2253)

Note: Substitute part, supplied until the stock is exhausted.

$2.49

$

In Stock, only 2 left!

0

92066A

Kawasaki 920662211

PLUG

$2.99

$

Usually ships in 2-5 days

0

92066B

Kawasaki 920662243

PLUG

$6.49

$

In Stock, only 1 left!

0

92066D

Kawasaki 920662253

PLUG,14X12

$2.49

$

In Stock, only 2 left!

0

92144

Kawasaki 921442202

SPRING

$1.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 921512166

BOLT

$0.99

$

In Stock, Qty 10

0

130

Kawasaki 130AA0508

BOLT-FLANGED,5X8
(Superseded to 130B0508)

$0.99

$

In Stock, Qty 8

0

130A

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, only 2 left!

0

132A

Kawasaki 132BA0612

BOLT-FLANGED-SMALL,6X12
(Superseded to 92150-1599)

$1.49

$

Usually ships in 2-5 days

0

132B

Kawasaki 132G0612

BOLT-FLANGED-SMALL,6X12
(Superseded to 132BA0612)

Note: Substitute part, supplied until the stock is exhausted.

$1.49

$

Usually ships in 2-5 days

0

220

Kawasaki 220AA0408

SCREW-PAN-CROS,4X8
(Superseded to 220B0408)

$0.99

$

In Stock, Qty 12

0

600

Kawasaki 600A1000

BALL-STEEL,5/16"

$0.99

$

In Stock, Qty 5

0

670

Kawasaki 670B2015

O RING,15MM

$1.49

$

In Stock, Qty 7

0
