FE350D-AS00 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

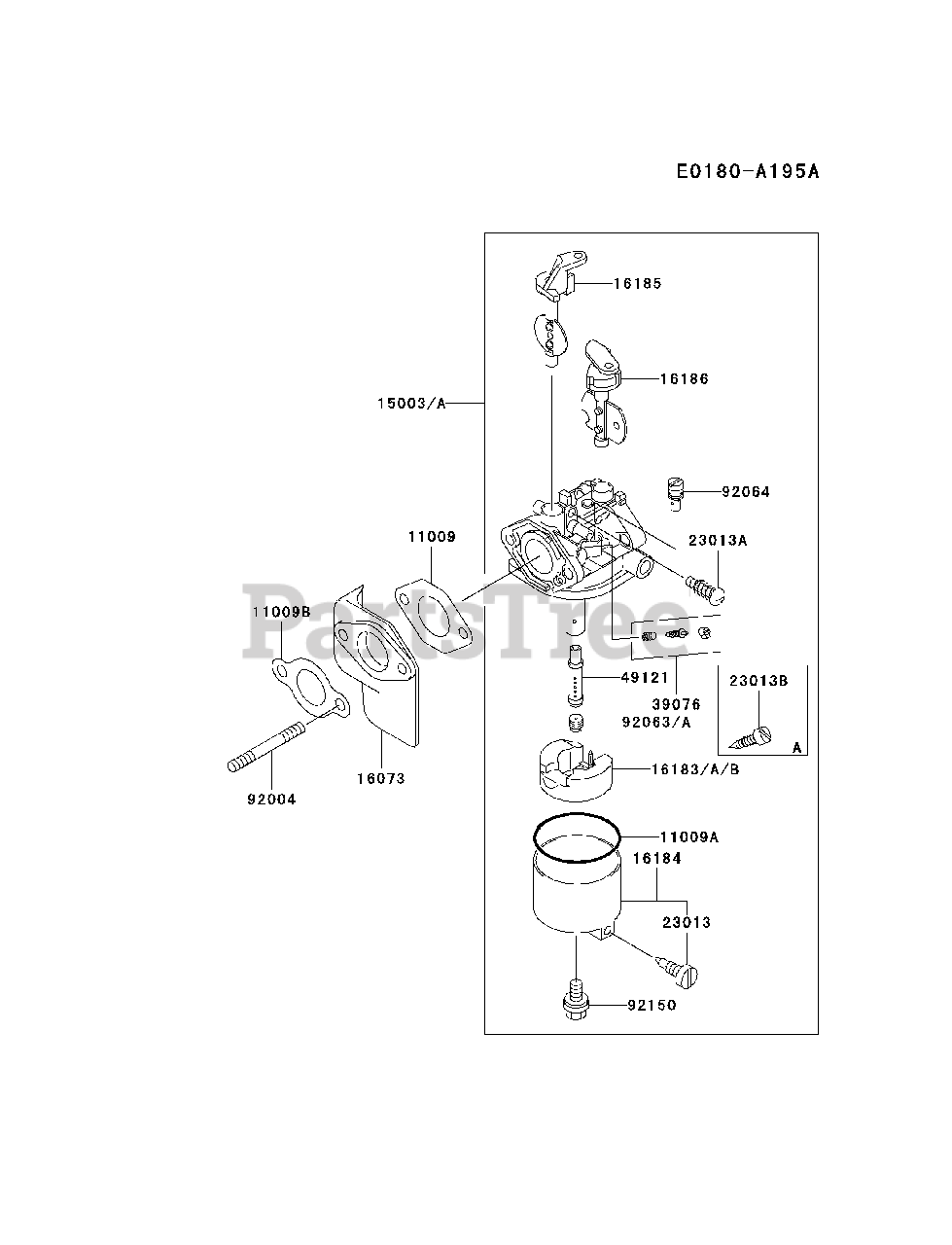

CARBURETOR Parts Diagram

  • Title

16073

Kawasaki 160732154

INSULATOR
(Superseded to 16073-2135)

$9.99

$

In Stock, only 4 left!

0

16183

Kawasaki 16183-2001

FLOAT-ASSY
(Superseded to 16183-2005)

Note: Substitute part, supplied until the stock is exhausted.

$49.99

$

Usually ships in 2-5 days

0

16183B

Kawasaki 16183-2004

FLOAT-ASSY
(Superseded to 16183-2005)

$49.99

$

Usually ships in 2-5 days

0

16184

Kawasaki 161842002

CHAMBER-ASSY-FLOAT

$50.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 161852014

VALVE-ASSY-THROTTLE

$58.99

$

Usually ships in 2-5 days

0

16186

Kawasaki 161862018

VALVE-ASSY-CHOKE

$65.99

$

Usually ships in 2-5 days

0

23013

Kawasaki 230132053

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

23013A

Kawasaki 230132054

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

23013B

Kawasaki 230132055

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

49121

Kawasaki 491212179

NOZZLE-MAIN

$19.99

$

Usually ships in 2-5 days

0

92004

Kawasaki 920042125

STUD,6X80

$3.99

$

Usually ships in 2-5 days

0

92063

Kawasaki 920632224

JET-MAIN,#98

$15.99

$

In Stock, only 1 left!

0

92064

Kawasaki 920642082

JET-PILOT,#42

$20.99

$

Usually ships in 2-5 days

0

92150

Kawasaki 921502209

BOLT

$7.49

$

In Stock, only 1 left!

0

11009

Kawasaki 110092827

GASKET,CARBURETOR

$3.99

$

In Stock, Qty 17

0

11009A

Kawasaki 110092919

GASKET

$10.99

$

In Stock, Qty 20+

0

11009B

Kawasaki 110092939

GASKET,INSULATOR
(Superseded to 11009-2825)

$1.99

$

In Stock, Qty 20+

0

15003

Kawasaki 150032232

CARBURETOR-ASSY.

$212.99

$

Usually ships in 2-5 days

0
