FE350D-AS05 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

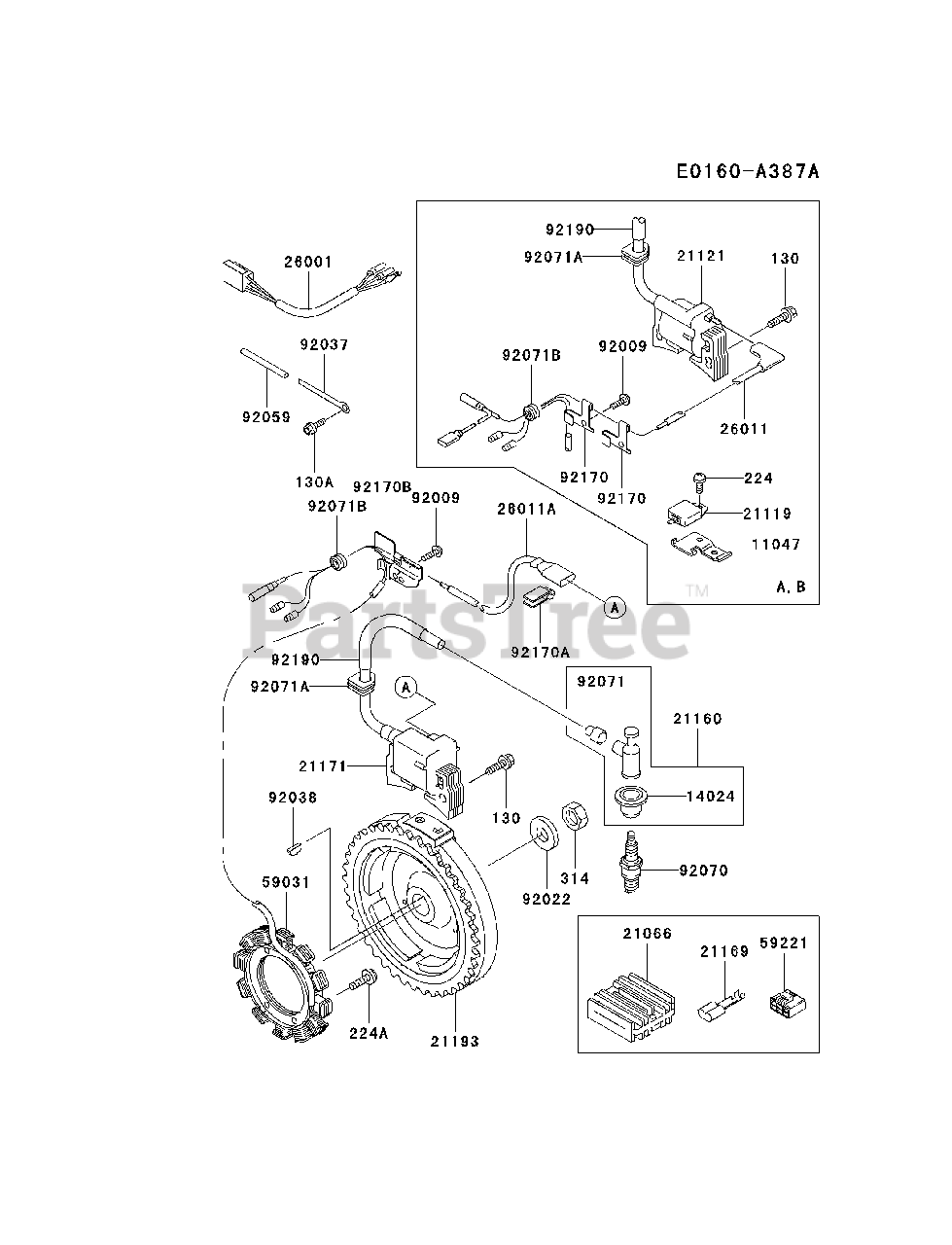

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

11047

Kawasaki 11047-2129

BRACKET

$

$

Not available

14024

Kawasaki 140242234

COVER

$3.49

$

In Stock, only 1 left!

0

21066

Kawasaki 210662004

REGULATOR-VOLTAGE

$101.99

$

Usually ships in 2-5 days

0

21119

Kawasaki 211192146

IGNITER
(Superseded to 21119-2125)

$90.99

$

Usually ships in 2-5 days

0

21121

Kawasaki 211212067

COIL-IGNITION

$72.99

$

In Stock, only 2 left!

0

21160

Kawasaki 211602051

CAP-ASSY-PLUG

$20.99

$

In Stock, only 3 left!

0

21169

Kawasaki 211692055

TERMINAL

$1.49

$

In Stock, Qty 10

0

21193

Kawasaki 211932128

FLYWHEEL-ASSY

$

$

Not available

26001

Kawasaki 260012370

HARNESS

$13.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-2228

WIRE-LEAD

$

$

Not available

59031

Kawasaki 590312088

COIL-CHARGING
(Superseded to 59031-2084)

$133.99

$

Usually ships in 2-5 days

0

59221

Kawasaki 592212099

CONNECTOR-CORD

$1.99

$

In Stock, only 4 left!

0

92009

Kawasaki 920092308

SCREW

$0.99

$

In Stock, Qty 12

0

92022

Kawasaki 920222178

WASHER

$2.99

$

Usually ships in 2-5 days

0

92037

Kawasaki 920372006

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92038

Kawasaki 920382094

KEY

$2.49

$

In Stock, Qty 10

0

92059

Kawasaki 920592011

TUBE,5X6X75

$0.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2077

PLUG-SPARK,BPR5ES
(Superseded to 4006)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92071

Kawasaki 920712008

GROMMET

$1.49

$

Usually ships in 2-5 days

0

92071A

Kawasaki 920712112

GROMMET

$6.99

$

In Stock, only 1 left!

0

92071B

Kawasaki 920712125

GROMMET

$1.99

$

In Stock, only 1 left!

0

92170

Kawasaki 921702016

CLAMP

$2.99

$

In Stock, only 1 left!

0

92170A

Kawasaki 921702017

CLAMP

$4.49

$

Usually ships in 2-5 days

0

92190

Kawasaki 921902069

TUBE,7.5X10X35

$0.99

$

In Stock, only 4 left!

0

130

Kawasaki 130B0525

BOLT-FLANGED
(Superseded to 130AA0525)

$1.49

$

In Stock, Qty 11

0

130A

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

224

Kawasaki 224B0508

SCREW-PAN-WP-CROS
(Superseded to 224AA0508)

$0.99

$

In Stock, only 3 left!

0

224A

Kawasaki 224B0620

SCREW-PAN-WP-CROS
(Superseded to 224AA0620)

$0.99

$

In Stock, only 2 left!

0

314

Kawasaki 314G1800

NUT-HEX-FINE

$2.49

$

In Stock, only 2 left!

0
