FE350D-AS12 - Kawasaki Engine FUEL-TANK/FUEL-VALVE Parts Diagram

Engine

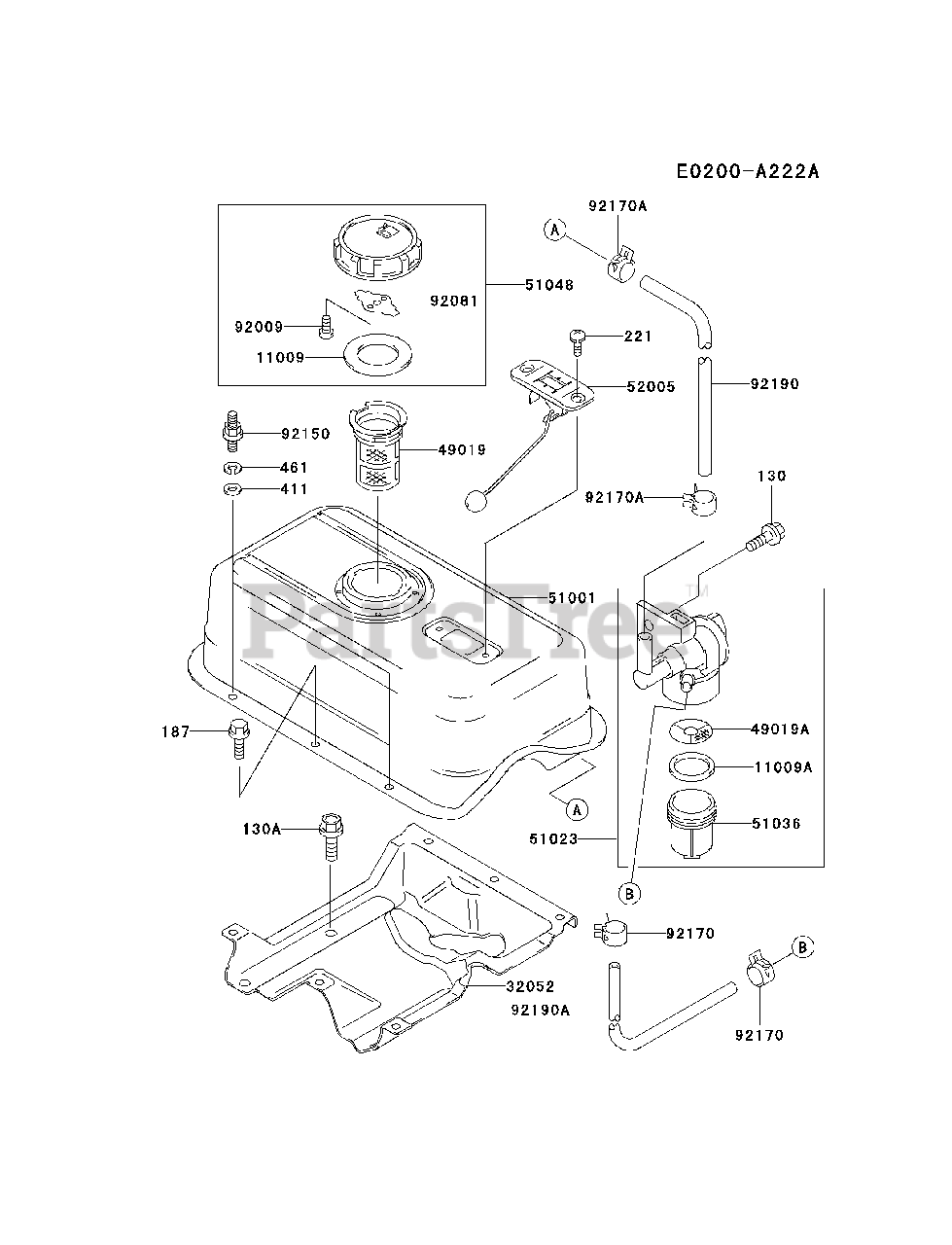

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title

11009

Kawasaki 110092115

GASKET
(Superseded to 11009-2044)

$2.49

$

In Stock, only 4 left!

0

11009A

Kawasaki 110092876

GASKET,FUEL TAP

$4.99

$

In Stock, Qty 13

0

32052

Kawasaki 32052-2211-9H

BRACKET-TANK

$

$

Not available

49019

Kawasaki 490192051

FILTER-FUEL
(Superseded to 49019-2003)

$6.99

$

In Stock, only 2 left!

0

49019A

Kawasaki 490192095

FILTER-FUEL
(Superseded to 49019-2101)

$6.49

$

In Stock, Qty 19

0

51001

Kawasaki 5100122589H

TANK-COMP-FUEL

$

$

Currently unavailable

51023

Kawasaki 510232148

TAP-ASSY

$34.99

$

In Stock, Qty 5

0

51036

Kawasaki 510362071

CUP,FUEL TAP

$8.99

$

In Stock, Qty 5

0

51048

Kawasaki 510482055

CAP-ASSY-TANK
(Superseded to 51048-2071)

$12.99

$

In Stock, Qty 6

0

52005

Kawasaki 520052100

GAUGE

$17.99

$

In Stock, only 2 left!

0

92009

Kawasaki 920092021

SCREW

$0.99

$

In Stock, only 3 left!

0

92081

Kawasaki 920812036

SPRING

$2.49

$

In Stock, only 1 left!

0

92150

Kawasaki 921502197

BOLT

$3.49

$

Usually ships in 2-5 days

0

92170

Kawasaki 921702042

CLAMP

$1.49

$

In Stock, Qty 10

0

92170A

Kawasaki 921702082

CLAMP

$0.99

$

In Stock, Qty 10

0

92190

Kawasaki 921902082

TUBE,7X12X220

$3.99

$

Usually ships in 2-5 days

0

92190A

Kawasaki 921902118

TUBE,6X10X120

$2.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130G0816

BOLT-FLANGED
(Superseded to 130BA0816)

$1.99

$

In Stock, Qty 5

0

187

Kawasaki 187J0612

BOLT-UPSET-WSP

$

$

Not available

221

Kawasaki 221C0512

SCREW-CSK-CROS
(Superseded to 221AB0512)

$0.99

$

In Stock, Qty 12

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 11

0

461

Kawasaki 461F0600

WASHER-SPRING
(Superseded to 461DA0600)

$0.99

$

In Stock, Qty 6

0
