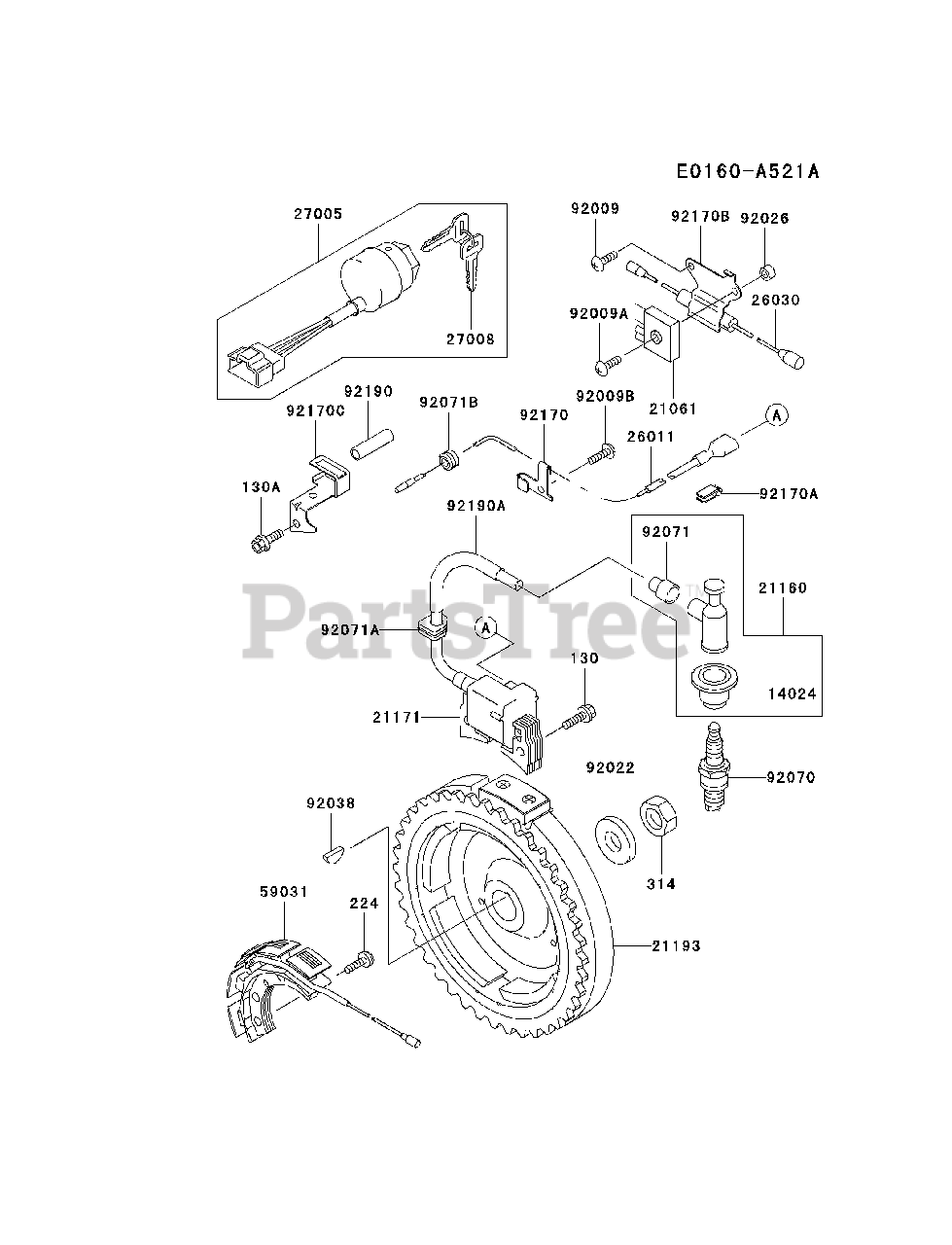

FE350D-AS17 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

14024

Kawasaki 14024-2234

COVER

$3.49

$

Usually ships in 2-5 days

0

21061

Kawasaki 21061-2059

RECTIFIER

$17.99

$

Usually ships in 2-5 days

0

21160

Kawasaki 21160-2051

CAP-ASSY-PLUG

$20.99

$

In Stock, only 1 left!

0

21171

Kawasaki 21171-2207

COIL-ASSY-IGNITION

$119.99

$

In Stock, only 1 left!

0

21193

Kawasaki 21193-2128

FLYWHEEL-ASSY
(Superseded to 21193-2135)

$279.99

$

In Stock, only 2 left!

0

26011

Kawasaki 26011-2351

WIRE-LEAD,L=420MM

$3.99

$

Usually ships in 2-5 days

0

26030

Kawasaki 26030-2004

HARNESS

$7.99

$

Usually ships in 2-5 days

0

27005

Kawasaki 27005-2056

SWITCH-ASSY-IGNITION

$

$

Not available

27008

Kawasaki 27008-2055

KEY-LOCK

$13.99

$

Usually ships in 2-5 days

0

59031

Kawasaki 59031-2091

COIL-CHARGING

$67.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2303

SCREW

$2.99

$

In Stock, Qty 20+

0

92009A

Kawasaki 92009-2304

SCREW

$

$

Not available

92009B

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 5

0

92022

Kawasaki 92022-2178

WASHER

$2.99

$

Usually ships in 2-5 days

0

92026

Kawasaki 92026-2317

SPACER,5.5X10X6

$

$

Not available

92038

Kawasaki 92038-2094

KEY

$2.49

$

In Stock, only 2 left!

0

92070

Kawasaki 92070-2077

PLUG-SPARK,BPR5ES,SOLID
(Superseded to 4006)

Note: NGK

$3.49

$

In Stock, Qty 20+

0

92071

Kawasaki 92071-2008

GROMMET

$1.49

$

Usually ships in 2-5 days

0

92071A

Kawasaki 92071-2112

GROMMET

$6.99

$

Usually ships in 2-5 days

0

92071B

Kawasaki 92071-2125

GROMMET

$1.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2016

CLAMP

$2.99

$

Usually ships in 2-5 days

0

92170A

Kawasaki 92170-2017

CLAMP

$4.49

$

Usually ships in 2-5 days

0

92170B

Kawasaki 92170-2034

CLAMP

$3.49

$

Usually ships in 2-5 days

0

92170C

Kawasaki 92170-2073

CLAMP

$4.99

$

Usually ships in 2-5 days

0

92190

Kawasaki 92190-2052

TUBE,25X26X50

$1.49

$

In Stock, only 4 left!

0

92190A

Kawasaki 92190-2069

TUBE,7.5X10X35

$0.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0525

BOLT-FLANGED
(Superseded to 130AA0525)

$0.99

$

In Stock, only 2 left!

0

130A

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

224

Kawasaki 224B0620

SCREW-PAN-WP-CROS
(Superseded to 224AA0620)

$0.99

$

In Stock, Qty 6

0

314

Kawasaki 314G1800

NUT-HEX-FINE

$2.49

$

In Stock, only 2 left!

0
