FE400D-AS01 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

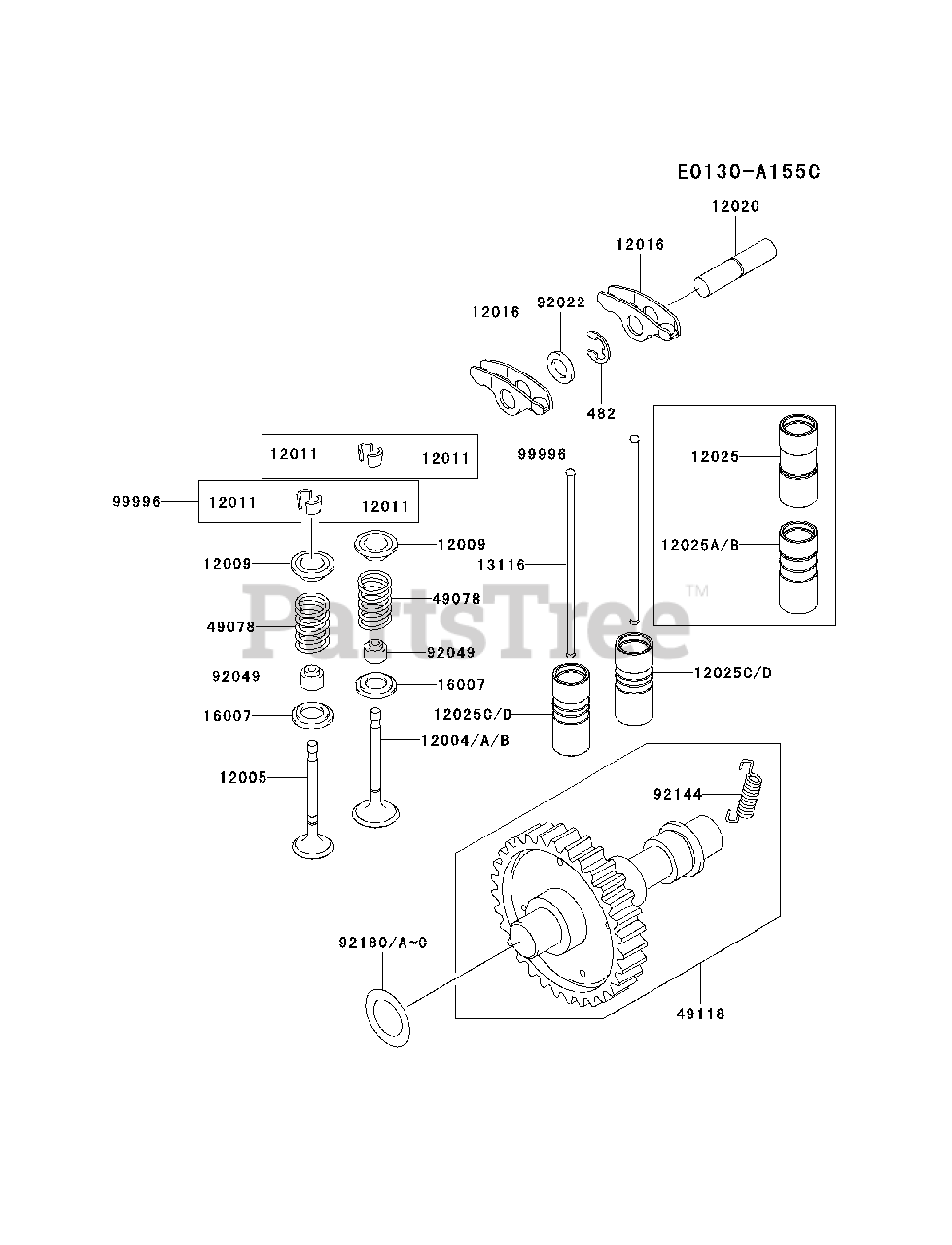

VALVE/CAMSHAFT Parts Diagram

  • Title

12004

Kawasaki 12004-2102

VALVE-INTAKE
(Superseded to 12004-2120)

$35.99

$

In Stock, only 1 left!

0

12005

Kawasaki 120052091

VALVE-EXHAUST

$44.99

$

In Stock, only 1 left!

0

12009

Kawasaki 120092060

RETAINER-VALVE SPRING

$5.99

$

In Stock, only 2 left!

0

12011

Kawasaki 120112052

COLLET

$2.99

$

In Stock, Qty 6

0

12016

Kawasaki 120162061

ARM-ROCKER

$11.99

$

Usually ships in 2-5 days

0

12020

Kawasaki 120202060

SHAFT-ROCKER

$6.99

$

In Stock, only 1 left!

0

12025

Kawasaki 12025-2001

ADJUSTER-LASH
(Superseded to 12025-2003)

Note: Substitute part, supplied until the stock is exhausted.

$47.99

$

In Stock, only 2 left!

0

12025B

Kawasaki 12025-2002

ADJUSTER-LASH
(Superseded to 12025-2003)

$47.99

$

In Stock, only 2 left!

0

13116

Kawasaki 131162073

ROD-PUSH

$11.99

$

In Stock, only 2 left!

0

16007

Kawasaki 160072052

SEAT-SPRING

$1.49

$

In Stock, Qty 20+

0

49078

Kawasaki 490782070

SPRING-ENGINE VALVE

$6.99

$

Usually ships in 2-5 days

0

49118

Kawasaki 491182140

CAMSHAFT-COMP

$181.99

$

In Stock, only 1 left!

0

92022

Kawasaki 920222397

WASHER,12.1X19X1.6

$0.99

$

In Stock, Qty 5

0

92049

Kawasaki 920492100

SEAL-OIL,VSB 7X12X5.5X9.7

$5.49

$

In Stock, Qty 10

0

92144

Kawasaki 921442323

SPRING

$3.99

$

In Stock, only 2 left!

0

92180

Kawasaki 921802017

SHIM,T=0.3

$4.49

$

In Stock, only 1 left!

0

92180A

Kawasaki 921802018

SHIM,T=0.4

$8.99

$

In Stock, only 1 left!

0

92180B

Kawasaki 921802019

SHIM,T=0.5

$8.99

$

Usually ships in 2-5 days

0

92180C

Kawasaki 921802063

SHIM,T=0.2

$

$

Not available

99996

Kawasaki 999962077

KIT,COLLET

$1.99

$

Usually ships in 2-5 days

0

482

Kawasaki 482J0100

CIRCLIP-TYPE-E,10MM
(Superseded to 3100723)

$

$

Not available
