FG110 K1 AT/A (FAAA) - Honda 9" Tiller, Made in USA (SN: FAAA-1600001 - FAAA-9999999) HANDLEBAR@THROTTLE LEVER Parts Diagram

9" Tiller, Made in USA

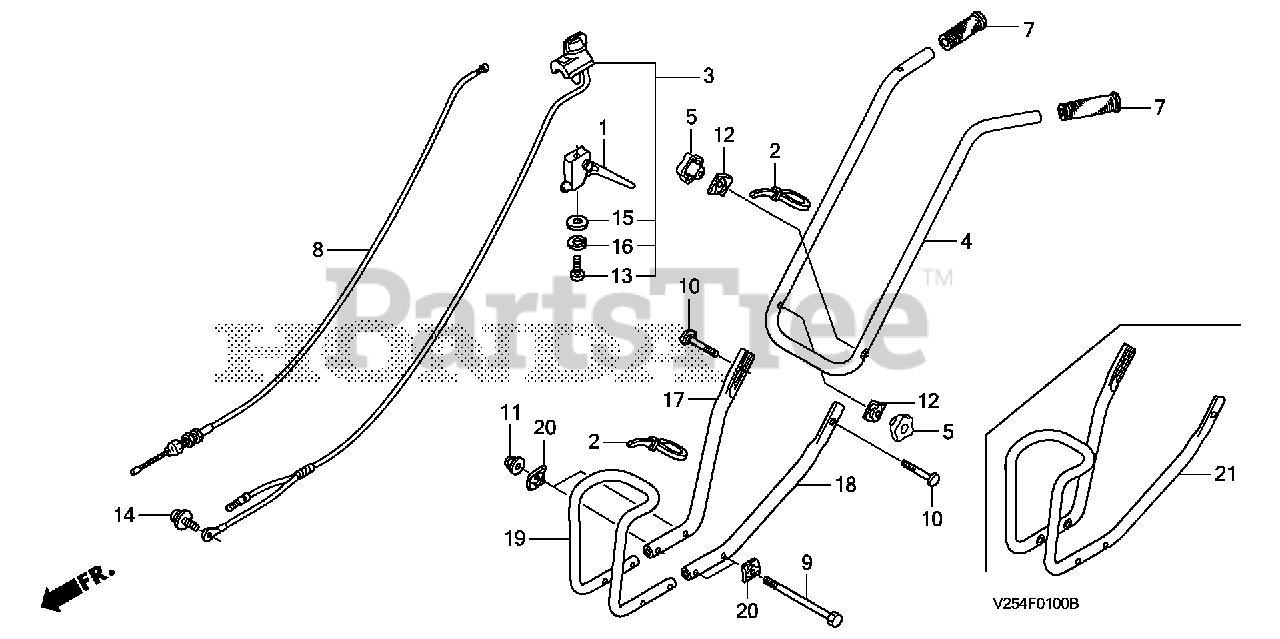

HANDLEBAR@THROTTLE LEVER Parts Diagram

  • Title

1

Honda 17850-V25-000

LEVER ASSY., THROTTLE

$9.99

$

In Stock, only 2 left!

0

2

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 13

0

3

Honda 35120-V06-013

SWITCH ASSY., ENGINE STOP

$22.99

$

In Stock, only 2 left!

0

4

Honda 53111-V25-000

PIPE, HANDLE (UPPER)

$42.99

$

In Stock, only 1 left!

0

5

Honda 53125-VE1-R00

GRIP, HANDLE JOINT

$6.49

$

In Stock, Qty 7

0

7

Honda 53165-V25-000

GRIP, HANDLE

$3.99

$

In Stock, only 2 left!

0

8

Honda 54510-V25-000

CABLE, CLUTCH

$8.49

$

In Stock, only 3 left!

0

9

Honda 90104-V25-000

BOLT, HEX. (6X177.5)

$26.99

$

Usually ships in 3-6 days

0

10

Honda 90102-V25-000

BOLT, HANDLE HOLDER

$2.49

$

Usually ships in 3-6 days

0

11

Honda 90303-V10-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 9

0

12

Honda 90501-898-000

WASHER, FRAME JOINT

$3.49

$

In Stock, only 2 left!

0

13

Honda 93500-03012-0A

SEE PART DETAILS - PRI; SCREW, PAN (3X12) (Honda Code 0182154).

$1.49

$

In Stock, Qty 7

0

14

Honda 93893-05012-00

SCREW-WASHER (5X12) (Honda Code 0638734).

$1.99

$

In Stock, only 2 left!

0

15

Honda 94101-03800

WASHER, PLAIN (3MM)

$1.49

$

In Stock, only 4 left!

0

16

Honda 94111-03000

SEE PART DETAILS - PRI; WASHER, SPRING (3MM)

$1.49

$

In Stock, only 3 left!

0

20

Honda 90501-V25-000

WASHER, FRAME JOINT

$0.99

$

In Stock, only 2 left!

0

21

Honda 53151-V25-010

PIPE, HANDLE (LOWER)

$63.99

$

Usually ships in 3-6 days

0
