FG150D-AS01 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

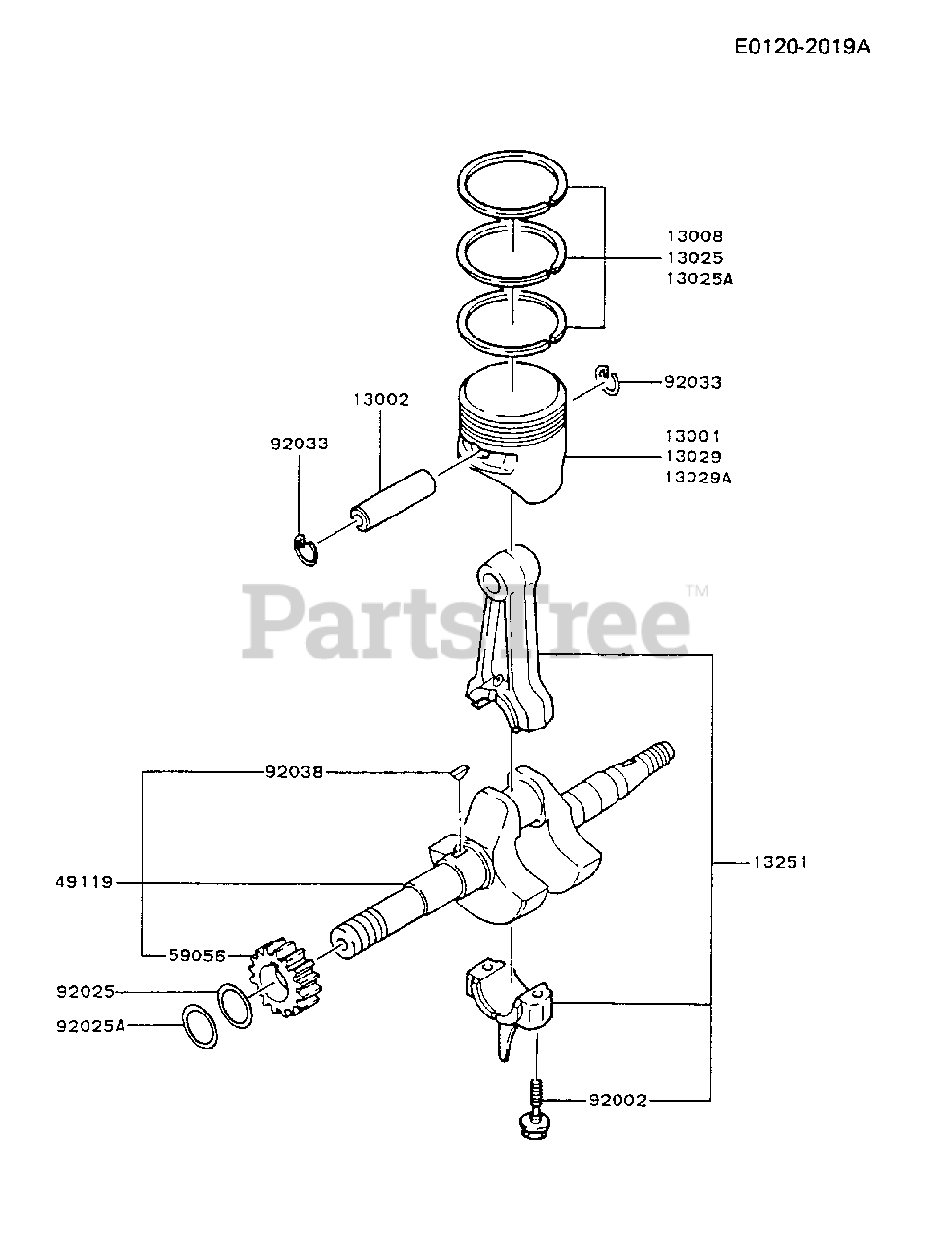

PISTON/CRANKSHAFT Parts Diagram

  • Title

13001

Kawasaki 13001-2062

PISTON-ENGINE
(Superseded to 13001-2142)

$46.99

$

Usually ships in 2-5 days

0

13002

Kawasaki 13002-2071

PIN-PISTON
(Superseded to 13002-2081)

$

$

Not available

13008

Kawasaki 130086041

RING-SET-PISTON
(Superseded to 314601-3010A)

$

$

Not available

13025

Kawasaki 130252065

RING-SET-PISTON L,0.25

$

$

Not available

13025A

Kawasaki 130252066

RING-SET-PISTON L,0.50

$30.99

$

In Stock, only 1 left!

0

13029

Kawasaki 130292069

PISTON-ENGINE L,0.25

$

$

Not available

13029A

Kawasaki 130292070

PISTON-ENGINE L,0.50

$44.99

$

In Stock, only 1 left!

0

13251

Kawasaki 13251-6003

ROD-ASSY-CONNECTING
(Superseded to 13251-2075)

$

$

Not available

49119

Kawasaki 49119-6027

CRANKSHAFT-ASSY

$

$

Not available

59056

Kawasaki 59056-2016

GEAR-HELICAL

$

$

Currently unavailable

92002

Kawasaki 920022053

BOLT
(Superseded to 315601-3245A)

$6.99

$

In Stock, Qty 6

0

92025

Kawasaki 92025-2070

SHIM,T=1.00

$

$

Not available

92025A

Kawasaki 92025-2071

SHIM,T=1.20

$

$

Not available

92033

Kawasaki 920332001

RING-SNAP

$

$

Not available

92038

Kawasaki 920382077

KEY

$3.49

$

In Stock, Qty 10

0
