FG400 A1 (FZCW) - Honda Tiller, Made in Japan (SN: FZCW-1000001 - FZCW-9999999) ROTOR Parts Diagram

Tiller, Made in Japan

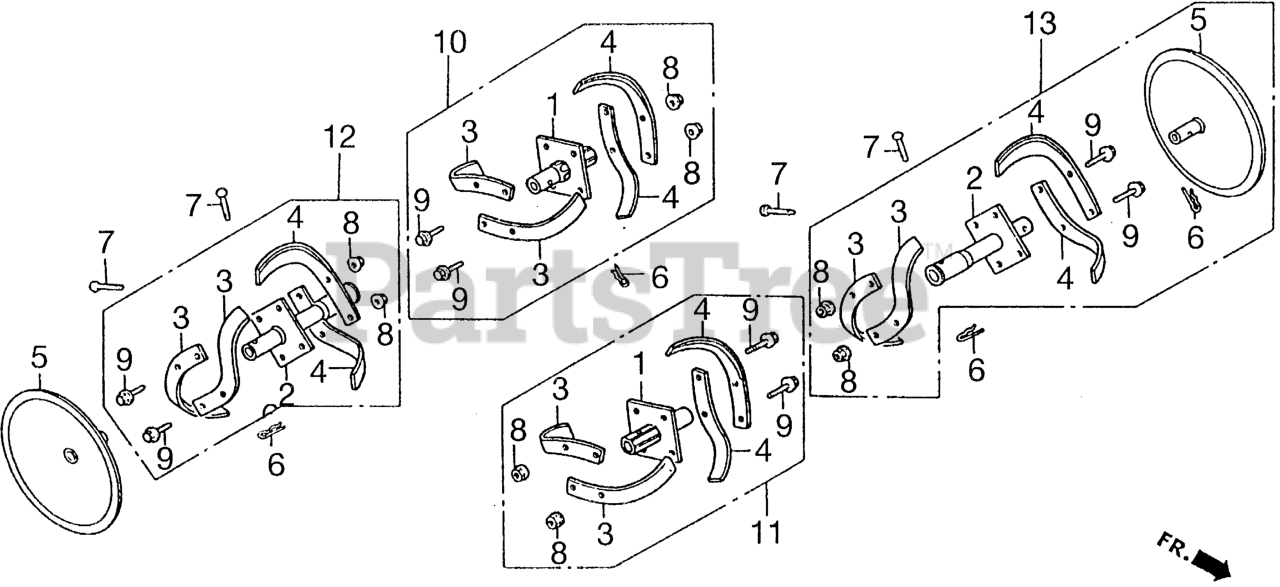

ROTOR Parts Diagram

  • Title

1

Honda 72111-733-020

PIPE, MAIN ROTOR

$60.99

$

Usually ships in 3-6 days

0

2

Honda 72211-733-010

PIPE, ROTOR (OUTER)

$99.99

$

Usually ships in 3-6 days

0

3

Honda 72461-733-000

TINE A, ROTOR

$25.99

$

Usually ships in 3-6 days

0

4

Honda 72465-733-000

TINE B, ROTOR

$25.99

$

Usually ships in 3-6 days

0

5

Honda 72510-733-010

DISK, SIDE

$51.99

$

Usually ships in 3-6 days

0

6

Honda 90651-703-000

PIN, SNAP (7MM)

$1.99

$

In Stock, Qty 11

0

7

Honda 90755-733-000

PIN, WHEEL (8X43)

$8.49

$

Usually ships in 3-6 days

0

8

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

9

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.99

$

In Stock, only 3 left!

0

10

Honda 72140-V08-620

ROTOR ASSY., R. MAIN

$

$

Currently unavailable

11

Honda 72150-V08-620

ROTOR ASSY., L. MAIN

$

$

Currently unavailable

12

Honda 72160-733-700

SEE PART DETAILS - PRI; ROTOR ASSY., R. (OUTER)

$

$

Not available

13

Honda 72170-733-700

SEE PART DETAILS - PRI; ROTOR ASSY., L. (OUTER)

$

$

Not available
