FG500 A2 (FZCY) - Honda Tiller, Made in Japan (SN: FZCY-1000001 - FZCY-9999999) CAMSHAFT Parts Diagram

Tiller, Made in Japan

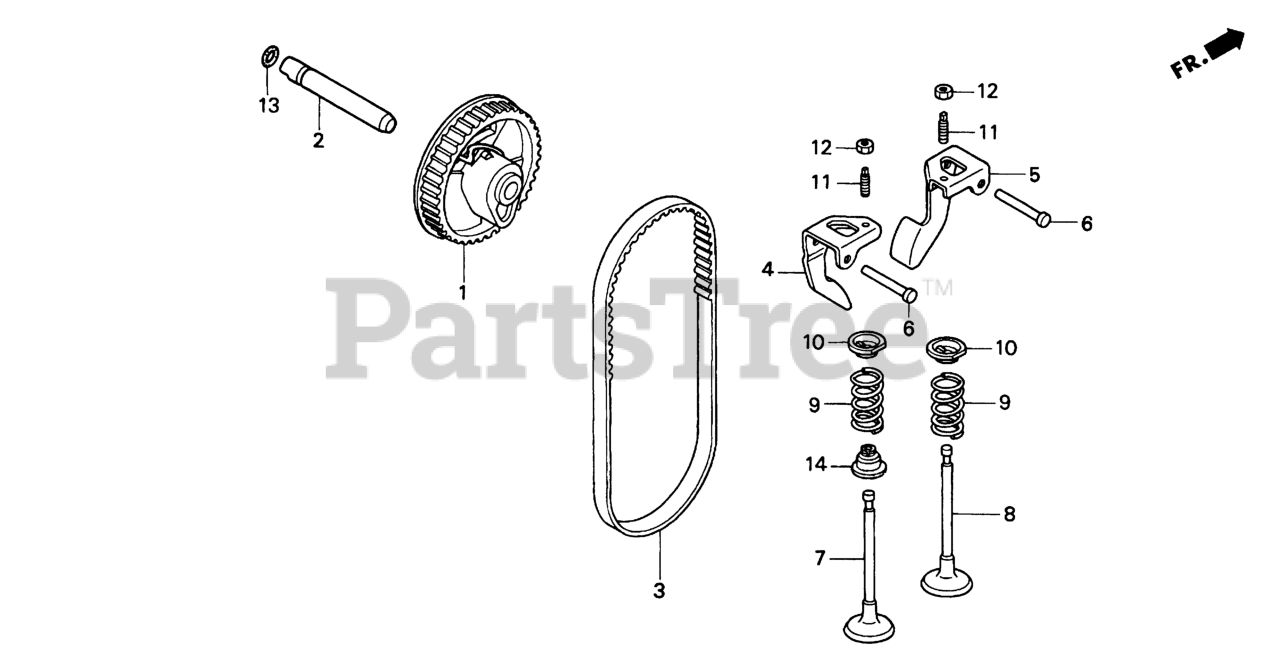

CAMSHAFT Parts Diagram

  • Title

1

Honda 14320-ZL8-000

SEE PART DETAILS - SUP; PULLEY, CAMSHAFT
(Superseded to 14320-ZL8-010)

$22.99

$

In Stock, only 4 left!

0

1

Honda 14320-ZL8-010

SEE PART DETAILS - PRI; PULLEY, CAMSHAFT

$22.99

$

In Stock, only 4 left!

0

2

Honda 14324-ZL8-000

SHAFT, CAM PULLEY (Honda Code 5580063).

$4.99

$

In Stock, only 1 left!

0

3

Honda 14400-ZL8-003

SEE PART DETAILS - SUP; BELT, TIMING (84HU7 G-200)
(Superseded to 14400-ZL8-013)

$23.99

$

Usually ships in 3-6 days

0

3

Honda 14400-ZL8-013

SEE PART DETAILS - PRI; BELT, TIMING (84HU7 G-200)

$23.99

$

Usually ships in 3-6 days

0

4

Honda 14431-Z0J-000

SEE PART DETAILS - PRI; ARM, IN. VALVE ROCKER (Honda Code 7526122).

$6.49

$

In Stock, Qty 12

0

5

Honda 14441-Z0J-000

SEE PART DETAILS - PRI; ARM, EX. VALVE ROCKER (Honda Code 7526130).

$6.99

$

In Stock, Qty 20+

0

6

Honda 14461-ZL8-000

SHAFT, ROCKER ARM (Honda Code 5580105).

$2.49

$

In Stock, only 2 left!

0

7

Honda 14711-ZL8-000

SEE PART DETAILS - PRI; VALVE, IN. (TECHNOSTAR)

$65.99

$

In Stock, Qty 5

0

8

Honda 14721-ZL8-000

SEE PART DETAILS - SUP; VALVE, EX. (L8E)

$58.99

$

In Stock, Qty 12

0

9

Honda 14751-ZL8-000

SPRING, VALVE (Honda Code 5580139).

$0.99

$

In Stock, Qty 12

0

10

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (EXHAUST SIDE)

$1.49

$

In Stock, Qty 20+

0

11

Honda 90012-333-000

SCREW, TAPPET ADJ. (Honda Code 0294819).

$3.49

$

In Stock, Qty 14

0

12

Honda 90206-001-000

NUT, TAPPET ADJ. (Honda Code 0004598).

$1.99

$

In Stock, Qty 20+

0

13

Honda 91301-ZM0-V31

SEE PART DETAILS - PRI; O-RING (6.8X1.9) (ARAI)

$2.99

$

In Stock, Qty 20+

0

14

Honda 12209-ZM0-003

SEAL, VALVE STEM (Honda Code 6839831).

Note: Use from Engine SN 1758847.

$8.49

$

In Stock, Qty 11

0
