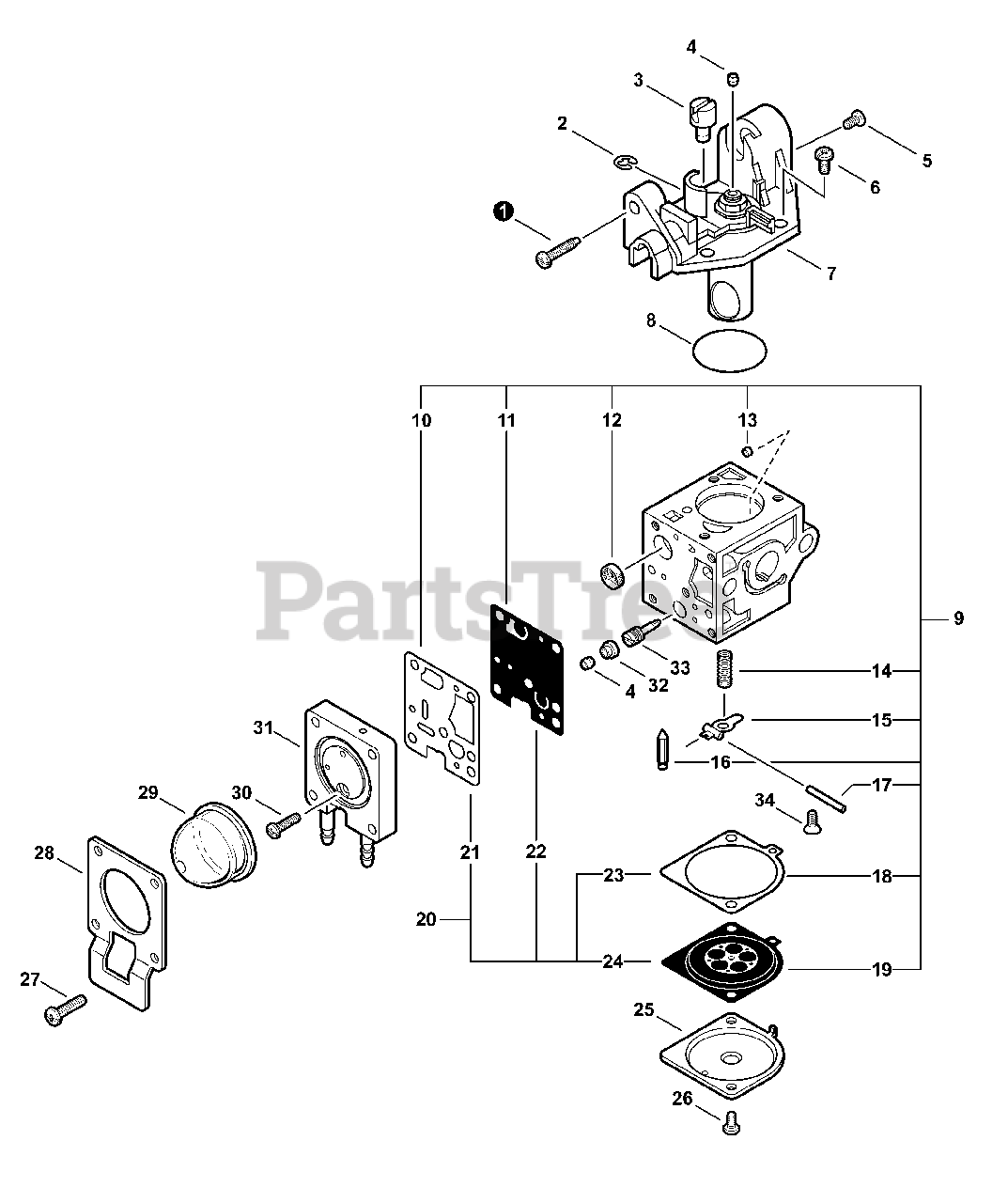

FH 235 - Shindaiwa Shafted Hedge Trimmer (SN: T45212001001 - T45212999999) Carburetor Parts Diagram

Shafted Hedge Trimmer

Carburetor Parts Diagram

  • Title

Echo A021003880

CARBURETOR -- RB-K113
(Superseded to A021003881)

Note: Inlcudes Items 2-34

$105.99

$

Usually ships in 2-4 days

0

1

Echo P005000100

SCREW, IDLE ADJUST

$5.49

$

Usually ships in 2-4 days

0

2

Echo P005000190

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

3

Echo P005002090

SWIVEL

$4.99

$

Usually ships in 2-4 days

0

4

Echo P005001270

PLUG

$1.49

$

In Stock, Qty 20+

0

5

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

6

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 10

0

7

Echo P005002460

ROTOR COVER ASY

$33.99

$

In Stock, only 1 left!

0

8

Echo P005000280

O-RING

$3.49

$

In Stock, Qty 20+

0

9

Echo P005001670

REPAIR KIT

Note: Includes Items 10-19

$20.99

$

In Stock, Qty 20+

0

10

------------------

GASKET, PUMP

$

$

Not available

11

------------------

DIAPHRAGM, PUMP

$

$

Not available

12

------------------

STRAINER

$

$

Not available

13

------------------

GUIDE, ROLLER

$

$

Not available

14

------------------

SPRING, METERING LEVER

$

$

Not available

15

------------------

LEVER, METERING

$

$

Not available

16

------------------

VALVE, INLET NEEDLE

$

$

Not available

17

------------------

PIN, METERING LEVER

$

$

Not available

18

------------------

GASKET, METERING

$

$

Not available

19

------------------

DIAPHRAGM, METERING

$

$

Not available

20

Echo P005001660

DIAPHRAGM/GASKET KIT
(Superseded to P005002270)

Note: Includes Items 21-24

$10.99

$

In Stock, Qty 20+

0

21

------------------

GASKET, PUMP

$

$

Not available

22

------------------

DIAPHRAGM, PUMP

$

$

Not available

23

------------------

GASKET, METERING

$

$

Not available

24

------------------

DIAPHRAGM, METERING

$

$

Not available

25

Echo 12534252130

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

26

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

27

Echo P005001900

SCREW, PURGE BULB RETAINER

$0.99

$

In Stock, Qty 20+

0

28

Echo P005000250

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 20+

0

29

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

30

Echo P005000270

SCREW, PURGE BASE

$1.49

$

In Stock, Qty 20+

0

31

Echo P005001890

BASE, PURGE

$18.99

$

In Stock, Qty 20+

0

32

Echo P005001250

CAP, LIMITER

$1.49

$

Usually ships in 2-4 days

0

33

Echo P005001260

NEEDLE - HIGH SPEED

$5.99

$

In Stock, only 3 left!

0

34

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0
