FH 235 - Shindaiwa Shafted Hedge Trimmer (SN: T45212001001 - T45212999999) Recoil Starter Parts Diagram

Shafted Hedge Trimmer

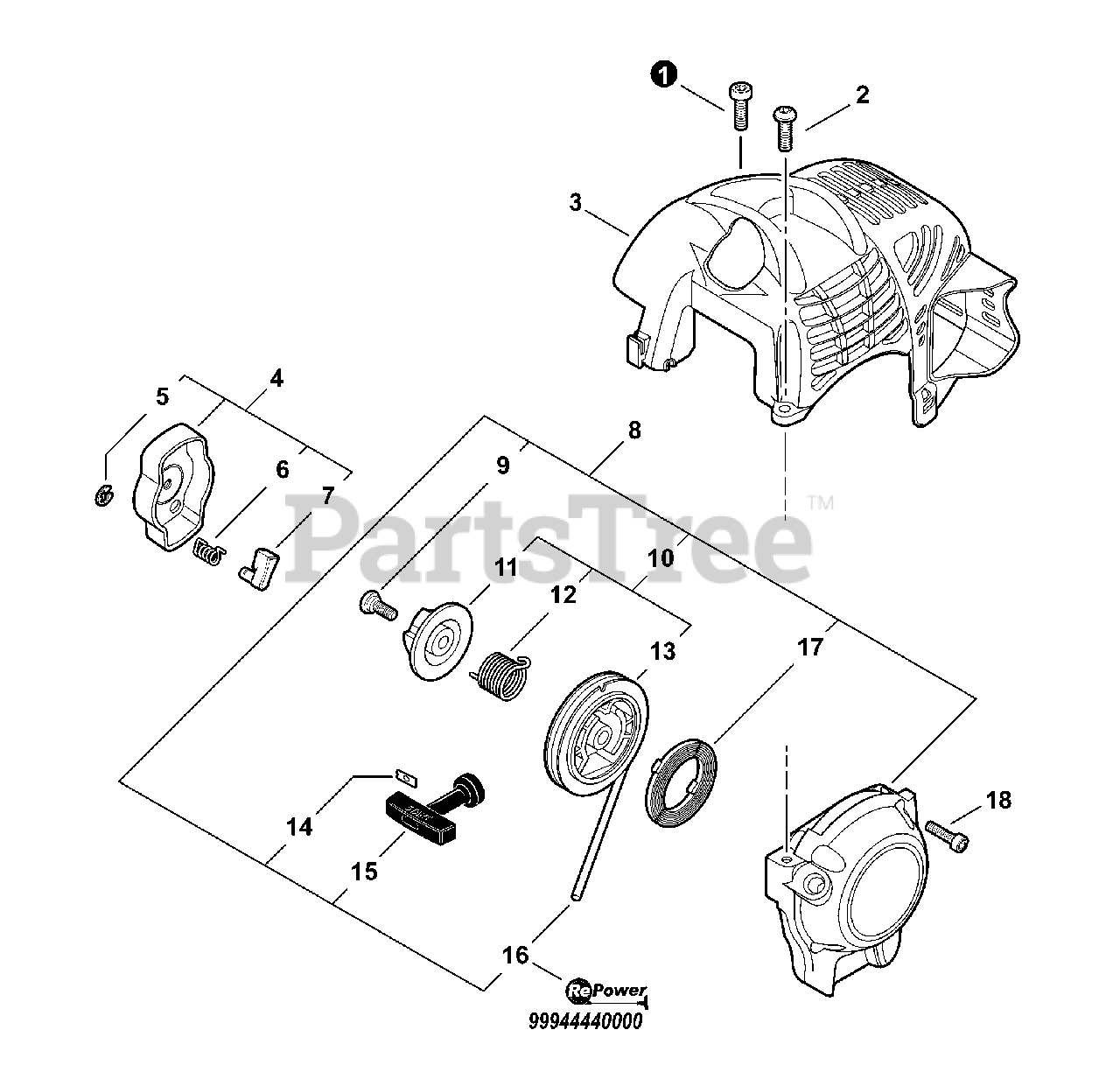

Recoil Starter Parts Diagram

  • Title

1

Echo V805000150

SCREW - 5×16 -- TORX

$0.99

$

In Stock, Qty 20+

0

2

Echo V805000000

SCREW - 5×16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

3

Echo A160002850

COVER, ENGINE

$26.99

$

Usually ships in 2-4 days

0

4

Echo A052000180

STARTER PAWL ASY

Note: Includes Items 5-7

$9.99

$

In Stock, Qty 10

0

5

Echo P022002100

RING, RETAINING - 4

$0.99

$

In Stock, only 2 left!

0

6

Echo 17723412220

SPRING, RETURN

$4.49

$

In Stock, Qty 20+

0

7

Echo P022006850

PAWL

$3.99

$

In Stock, Qty 13

0

8

Echo A051001322

STARTER ASY

Note: Includes Items 9-17

$26.99

$

In Stock, Qty 8

0

9

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, only 2 left!

0

10

Echo P050009920

ROPE REEL KIT

Note: Includes Items 11-13

$23.99

$

In Stock, only 2 left!

0

11

Echo A525000020

PLATE, CAM

$8.49

$

In Stock, only 4 left!

0

12

Echo P022008270

SPRING, DAMPER

$8.99

$

In Stock, Qty 15

0

13

Echo A506000500

ROPE, REEL

$9.49

$

In Stock, Qty 11

0

14

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, only 2 left!

0

15

Echo 17722827030

GRIP, STARTER

$6.99

$

In Stock, Qty 8

0

16

Echo P022019990

ROPE, STARTER
(Superseded to P022008260)

$5.99

$

Usually ships in 2-4 days

0

17

Echo P022019680

SPRING, REWIND

$10.99

$

In Stock, Qty 20+

0

18

Echo V804000060

SCREW - 4×16 -- TORX

$0.99

$

In Stock, only 1 left!

0
