FH 235 - Shindaiwa Shafted Hedge Trimmer (SN: U12115001001 - U12115999999) GEAR CASE Parts Diagram

Shafted Hedge Trimmer

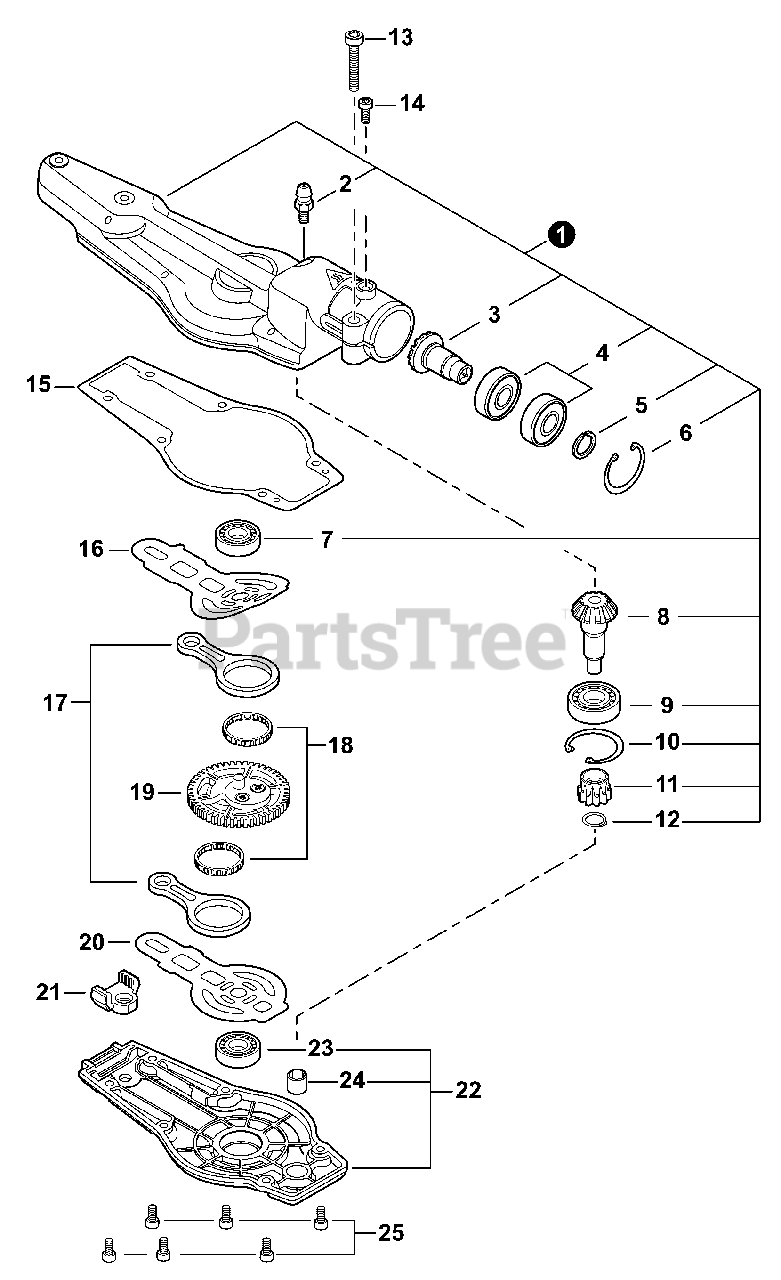

GEAR CASE Parts Diagram

  • Title

1

Echo P100002210

GEAR CASE ASSY

Note: Includes Items 2-12

$164.99

$

Usually ships in 2-4 days

0

2

Echo V187000080

FITTING, GREASE

$1.99

$

In Stock, Qty 5

0

3

Echo V651001070

GEAR, BEVEL

$32.99

$

In Stock, only 2 left!

0

4

Echo 90085706901

BEARING, BALL 6901

$40.99

$

In Stock, only 2 left!

0

5

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

6

Echo 90070200024

RING, SNAP 24

$1.99

$

In Stock, only 4 left!

0

7

Echo 90080000608

BEARING, BALL 608

$7.49

$

In Stock, only 2 left!

0

8

Echo V651001080

GEAR, BEVEL

$14.99

$

Usually ships in 2-4 days

0

9

Echo 90080036001

BEARING, BALL 6001

$11.99

$

In Stock, Qty 20+

0

10

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

11

Echo V650000730

GEAR, SPUR

$15.99

$

In Stock, only 3 left!

0

12

Echo 90070100008

RING, RETAINING 8

$0.99

$

In Stock, only 4 left!

0

13

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

14

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

15

Echo V110000200

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 20+

0

16

Echo V150004320

PLATE, WEAR

$4.99

$

In Stock, only 4 left!

0

17

Echo C532000530

ROD, CONNECTING

$33.99

$

In Stock, only 2 left!

0

18

Echo V572000000

BEARING, NEEDLE 30

$18.99

$

In Stock, only 1 left!

0

19

Echo V060000130

GEAR, SPUR

$74.99

$

Usually ships in 2-4 days

0

20

Echo V150004310

PLATE, WEAR

$4.99

$

In Stock, only 2 left!

0

21

Echo V541000620

SEAL

$3.99

$

In Stock, only 2 left!

0

22

Echo P100002220

COVER ASSY, GEAR CASE
(Superseded to P100003631)

Note: Includes Items 23-24

$49.99

$

In Stock, only 4 left!

0

23

Echo 90080000608

BEARING, BALL 608

$7.49

$

In Stock, only 2 left!

0

24

Echo V551000000

BEARING, NEEDLE

$10.99

$

In Stock, only 2 left!

0

25

Echo V804000050

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0
