FH480V-CS22 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

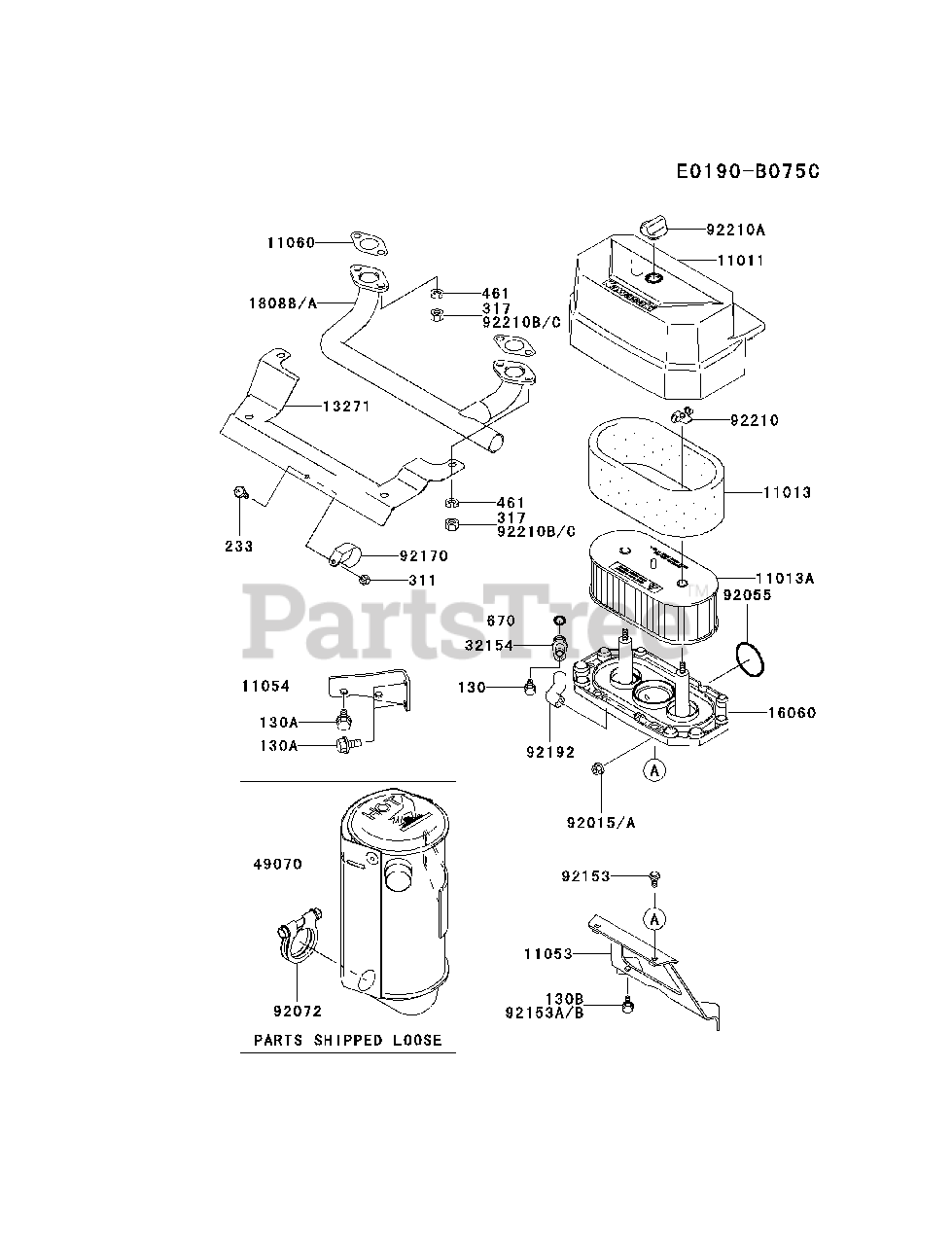

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 110117045

CASE-AIR FILTER
(Superseded to 11011-7035)

$22.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 110137025

ELEMENT-AIR FILTER

$6.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 110137031

ELEMENT-AIR FILTER
(Superseded to 11013-7026)

$26.99

$

In Stock, Qty 20+

0

11053

Kawasaki 110537022

BRACKET

$37.99

$

Usually ships in 2-5 days

0

11054

Kawasaki 1105470029H

BRACKET

$

$

Currently unavailable

11060

Kawasaki 110607021

GASKET,MUFFLER
(Superseded to 11060-7006)

$2.49

$

In Stock, Qty 20+

0

13271

Kawasaki 132717022

PLATE

$17.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 160607016

PIPE-INTAKE
(Superseded to 16060-7013)

$22.99

$

In Stock, Qty 6

0

18088A

Kawasaki 180887008

PIPE-EXHAUST
(Superseded to 18088-7001)

$151.99

$

Usually ships in 2-5 days

0

32154

Kawasaki 321547006

PIPE

$9.49

$

Usually ships in 2-5 days

0

49070

Kawasaki 490707021

MUFFLER-COMP

$

$

Not available

92015A

Kawasaki 920151367

NUT

$4.49

$

In Stock, Qty 20+

0

92055

Kawasaki 920557015

RING-O

$1.99

$

In Stock, Qty 17

0

92072

Kawasaki 920727012

BAND

$15.99

$

In Stock, Qty 5

0

92153

Kawasaki 921537038

BOLT,6X10

$2.99

$

In Stock, only 3 left!

0

92153A

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92170

Kawasaki 921707002

CLAMP

$3.99

$

In Stock, only 2 left!

0

92192

Kawasaki 921927010

TUBE

$9.49

$

In Stock, Qty 11

0

92210

Kawasaki 922107004

NUT,M6

$3.49

$

In Stock, Qty 20+

0

92210A

Kawasaki 922107019

NUT

$6.99

$

In Stock, Qty 20+

0

92210B

Kawasaki 922107027

NUT,M8

$2.49

$

In Stock, Qty 20+

0

130

Kawasaki 130AA0610

BOLT-FLANGED,6X10
(Superseded to 130B0610)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130AA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

233

Kawasaki 233AA0416

SCREW-PAN-WP+-,4X16
(Superseded to 233B0416)

$0.99

$

In Stock, Qty 6

0

311

Kawasaki 311AA0400

NUT-HEX,4MM
(Superseded to 311509-6152-00)

$0.99

$

In Stock, Qty 9

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0

670

Kawasaki 670B2010

O RING,10MM

$1.99

$

In Stock, Qty 12

0
