FH541V-AS36 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

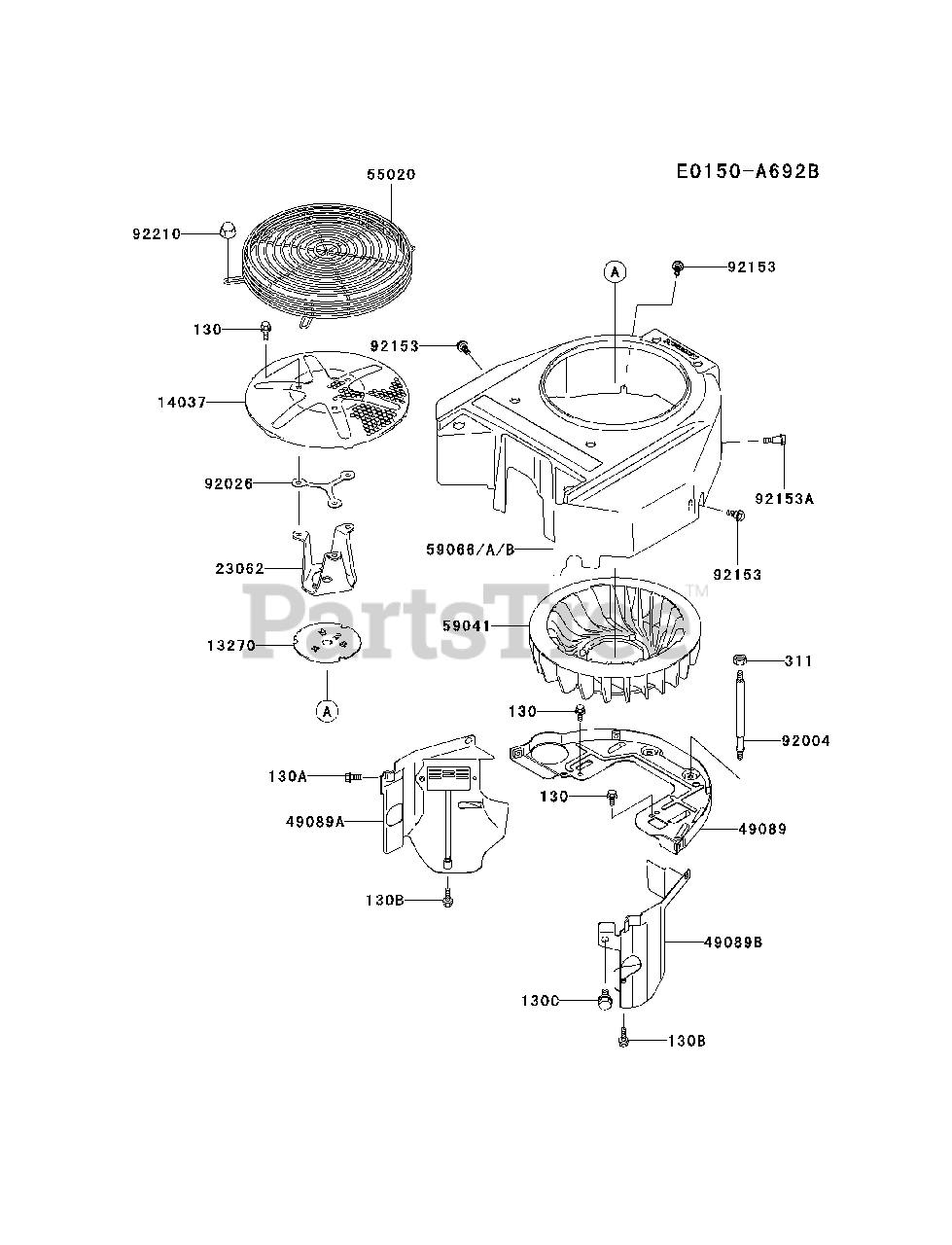

COOLING-EQUIPMENT Parts Diagram

  • Title

13270

Kawasaki 132707007

PLATE

$5.99

$

In Stock, Qty 7

0

14037

Kawasaki 1403770209H

SCREEN
(Superseded to 14037-7010)

$

$

Currently unavailable

23062

Kawasaki 230627010

BRACKET-COMP
(Superseded to 23062-7008)

$10.99

$

In Stock, only 1 left!

0

49089

Kawasaki 490897033

SHROUD-ENGINE
(Superseded to 49089-7007)

$31.99

$

Usually ships in 2-5 days

0

49089A

Kawasaki 490897042

SHROUD-ENGINE

$32.99

$

Usually ships in 2-5 days

0

49089B

Kawasaki 490897043

SHROUD-ENGINE

$33.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 550207004

GUARD
(Superseded to 55020-7001)

$32.99

$

Usually ships in 2-5 days

0

59041

Kawasaki 59041-7010

FAN
(Superseded to 59041-0014)

$19.99

$

In Stock, Qty 10

0

59066

Kawasaki 59066-7024

HOUSING-FAN

Note: Substitute part, supplied until the stock is exhausted.

$

$

Not available

59066B

Kawasaki 590667037

HOUSING-FAN
(Superseded to 59066-7024)

$

$

Not available

92004

Kawasaki 92004-7006

STUD
(Superseded to 92004-7025)

$6.99

$

In Stock, Qty 13

0

92026

Kawasaki 920267007

SPACER

$5.99

$

In Stock, only 4 left!

0

92153

Kawasaki 921537007

BOLT

$4.49

$

In Stock, Qty 11

0

92153A

Kawasaki 92153-7008

BOLT

$

$

Not available

92210

Kawasaki 922100003

NUT

$0.99

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

BOLT-FLANGED
(Superseded to 130AA0616)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0625

BOLT-FLANGED
(Superseded to 130AA0625)

$0.99

$

In Stock, Qty 6

0

130C

Kawasaki 130B0816

BOLT-FLANGED
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 7

0

311

Kawasaki 311B0600

NUT-HEX,6MM
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 10

0
