FH541V-BS37 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

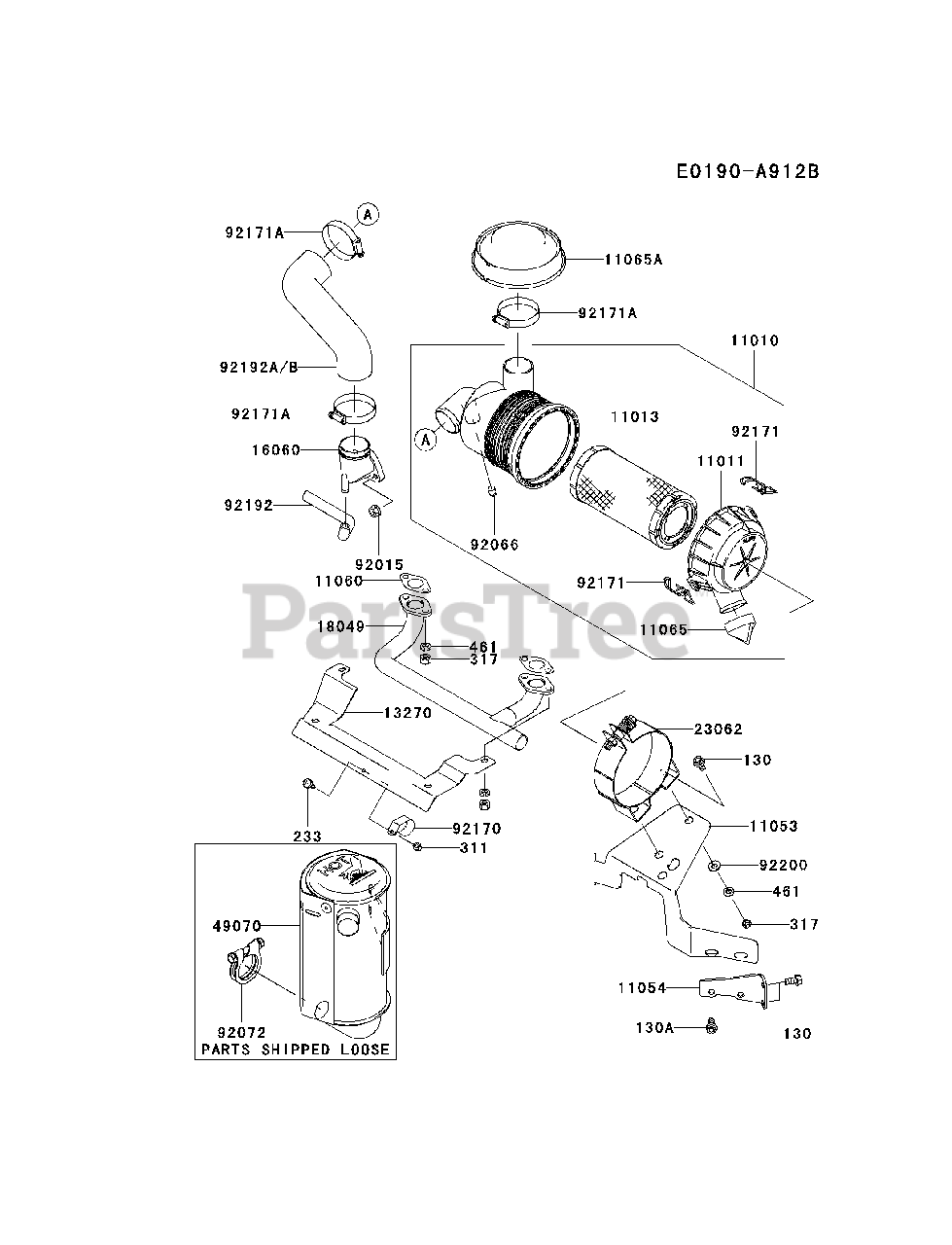

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-7017

FILTER-ASSY-AIR
(Superseded to 11010-7034)

$110.99

$

Usually ships in 2-5 days

0

11011

Kawasaki 110117032

CASE-AIR FILTER

$54.99

$

In Stock, only 1 left!

0

11013

Kawasaki 110137029

ELEMENT-AIR FILTER

$21.99

$

In Stock, Qty 16

0

11053

Kawasaki 110537019

BRACKET

$62.99

$

Usually ships in 2-5 days

0

11054

Kawasaki 1105470029H

BRACKET

$

$

Currently unavailable

11060

Kawasaki 110607021

GASKET,MUFFLER
(Superseded to 11060-7006)

$2.49

$

In Stock, Qty 20+

0

11065

Kawasaki 110657008

CAP

$21.99

$

In Stock, Qty 20+

0

11065A

Kawasaki 11065-7011

CAP
(Superseded to 11065-7026)

$

$

Not available

13270

Kawasaki 132707008

PLATE

$17.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 160607011

PIPE-INTAKE

$29.99

$

In Stock, only 4 left!

0

18049

Kawasaki 180497001

PIPE-EXHAUST

$139.99

$

Usually ships in 2-5 days

0

23062

Kawasaki 230627012

BRACKET-COMP

$41.99

$

Usually ships in 2-5 days

0

49070

Kawasaki 490707021

MUFFLER-COMP

$

$

Not available

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92066

Kawasaki 920667018

PLUG

$11.99

$

Usually ships in 2-5 days

0

92072

Kawasaki 920727012

BAND

$15.99

$

In Stock, Qty 5

0

92170

Kawasaki 921707002

CLAMP

$3.99

$

In Stock, only 2 left!

0

92171

Kawasaki 921717009

CLAMP

$13.99

$

In Stock, Qty 12

0

92171A

Kawasaki 92171-7010

CLAMP

$8.99

$

In Stock, Qty 11

0

92192

Kawasaki 921927013

TUBE

$45.99

$

Usually ships in 2-5 days

0

92192A

Kawasaki 92192-7014

TUBE
(Superseded to 92192-7095)

Note: Substitute part, supplied until the stock is exhausted.

$50.99

$

In Stock, only 2 left!

0

92192B

Kawasaki 92192-7081

TUBE
(Superseded to 92192-7095)

$50.99

$

In Stock, only 2 left!

0

92200

Kawasaki 922001213

WASHER,8.5X18X2.3

$2.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0816

BOLT-FLANGED,8X16
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0820

BOLT-FLANGED,8X20
(Superseded to 130AA0820)

$0.99

$

In Stock, only 2 left!

0

233

Kawasaki 233B0416

SCREW-PAN-WP+-,4X16
(Superseded to 233AA0416)

$0.99

$

In Stock, Qty 6

0

311

Kawasaki 311B0400

NUT-HEX,4MM
(Superseded to 311AA0400)

$0.99

$

In Stock, Qty 9

0

317

Kawasaki 317R0800

NUT-HEX-SMALL,8MM
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 20+

0

461

Kawasaki 461F0800

WASHER-SPRING,8MM
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
