FH580V-BS34 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

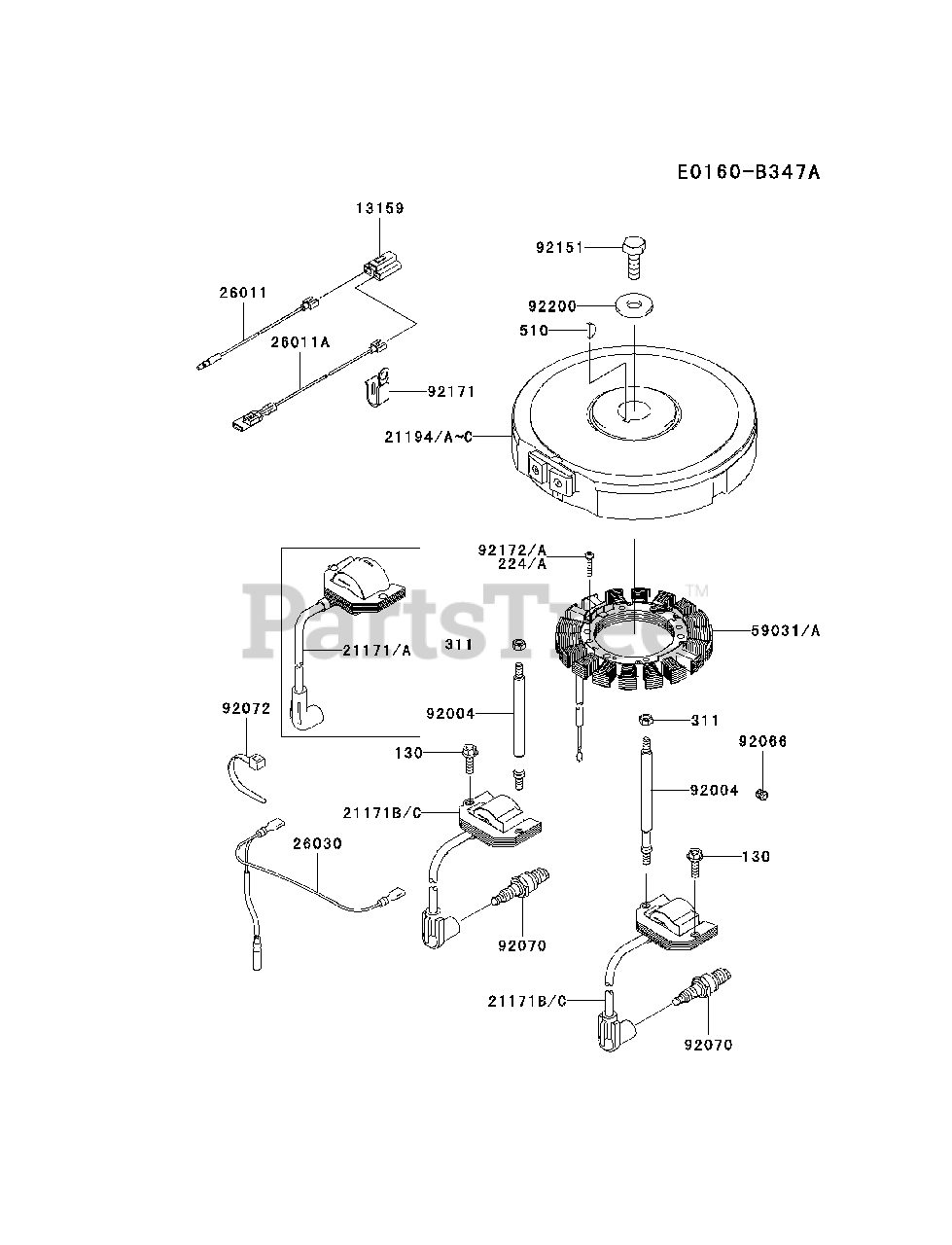

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

13159

Kawasaki 131597001

CONNECTOR

$1.49

$

In Stock, Qty 7

0

21171A

Kawasaki 21171-7013

COIL-ASSY-IGNITION
(Superseded to 21171-7034)

Note: Substitute part, supplied until the stock is exhausted.

$83.99

$

In Stock, Qty 20+

0

21171C

Kawasaki 211717034

COIL-ASSY-IGNITION
(Superseded to 21171-7003)

$83.99

$

In Stock, Qty 20+

0

21194A

Kawasaki 21194-7007

FLYWHEEL-COMP
(Superseded to 21194-7026)

Note: Substitute part, supplied until the stock is exhausted.

$197.99

$

In Stock, only 2 left!

0

21194C

Kawasaki 21194-7026

FLYWHEEL-COMP
(Superseded to 21194-0023)

$197.99

$

In Stock, only 2 left!

0

26011

Kawasaki 260117002

WIRE-LEAD

$2.99

$

Usually ships in 2-5 days

0

26011A

Kawasaki 260117005

WIRE-LEAD

$2.99

$

Usually ships in 2-5 days

0

26030

Kawasaki 260307001

HARNESS

$11.99

$

In Stock, Qty 12

0

59031

Kawasaki 590317002

COIL-CHARGING
(Superseded to 59031-7011)

$78.99

$

In Stock, Qty 8

0

92004

Kawasaki 92004-7009

STUD
(Superseded to 92004-7026)

$4.99

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 12

0

92070

Kawasaki 920707003

PLUG-SPARK,RCJ8Y,SOLID

$4.99

$

In Stock, Qty 20+

0

92072

Kawasaki 920727003

BAND

$1.49

$

In Stock, only 1 left!

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

In Stock, Qty 20+

0

92171

Kawasaki 921717008

CLAMP

$1.99

$

In Stock, only 1 left!

0

92172A

Kawasaki 921727018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 922007002

WASHER

$3.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

224A

Kawasaki 224B0520

SCREW-PAN-WP-CROS,5X20
(Superseded to 224AA0520)

Note: Substitute part, supplied until the stock is exhausted.

$0.99

$

In Stock, Qty 20+

0

311

Kawasaki 311AA0600

NUT-HEX,6MM
(Superseded to 16011-002)

$0.99

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
