FH580V-DS29 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

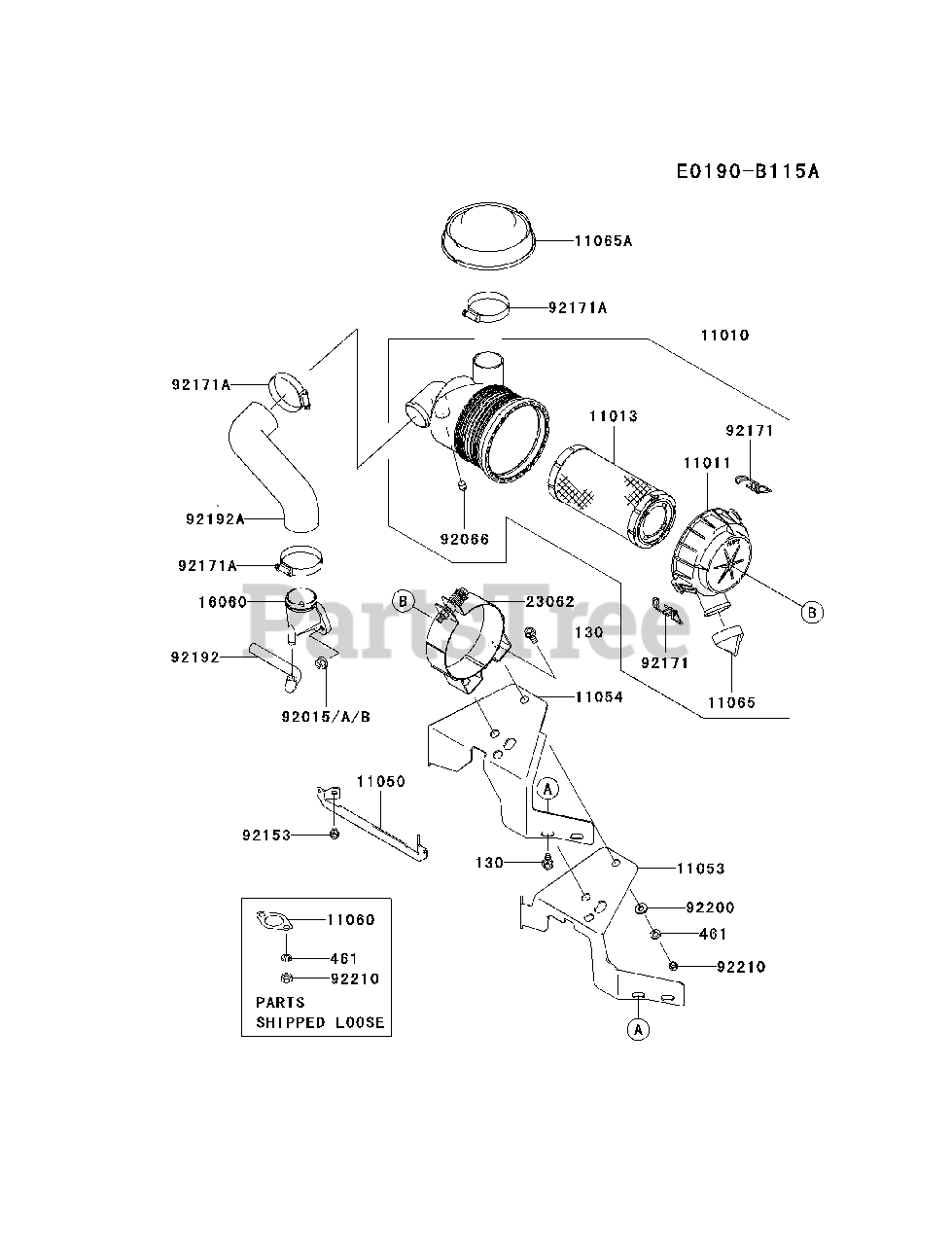

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-7017

FILTER-ASSY-AIR
(Superseded to 11010-7034)

$110.99

$

Usually ships in 2-5 days

0

11011

Kawasaki 110117032

CASE-AIR FILTER

$54.99

$

In Stock, only 1 left!

0

11013

Kawasaki 110137029

ELEMENT-AIR FILTER

$21.99

$

In Stock, Qty 16

0

11050

Kawasaki 110507006

BRACKET

$9.49

$

Usually ships in 2-5 days

0

11053

Kawasaki 110537019

BRACKET

$62.99

$

Usually ships in 2-5 days

0

11054

Kawasaki 110547005

BRACKET

$32.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 110607021

GASKET,MUFFLER
(Superseded to 11060-7006)

$2.49

$

In Stock, Qty 20+

0

11065

Kawasaki 110657008

CAP

$21.99

$

In Stock, Qty 20+

0

11065A

Kawasaki 11065-7011

CAP
(Superseded to 11065-7026)

$

$

Not available

16060

Kawasaki 160607011

PIPE-INTAKE

$29.99

$

In Stock, only 4 left!

0

23062

Kawasaki 230627012

BRACKET-COMP

$41.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

Note: Substitute part, supplied until the stock is exhausted.

$4.49

$

In Stock, Qty 20+

0

92015B

Kawasaki 920151367

NUT

$4.49

$

In Stock, Qty 20+

0

92066

Kawasaki 920667018

PLUG

$11.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92171

Kawasaki 921717009

CLAMP

$13.99

$

In Stock, Qty 12

0

92171A

Kawasaki 92171-7010

CLAMP

$8.99

$

In Stock, Qty 11

0

92192

Kawasaki 921927013

TUBE

$45.99

$

Usually ships in 2-5 days

0

92192A

Kawasaki 921927095

TUBE

$50.99

$

In Stock, only 2 left!

0

92200

Kawasaki 922001213

WASHER,8.5X18X2.3

$2.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 922107027

NUT,M8

$2.49

$

In Stock, Qty 20+

0

130

Kawasaki 130AA0820

BOLT-FLANGED,8X20
(Superseded to 130B0820)

$0.99

$

In Stock, only 2 left!

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
