FH601D-ES01 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

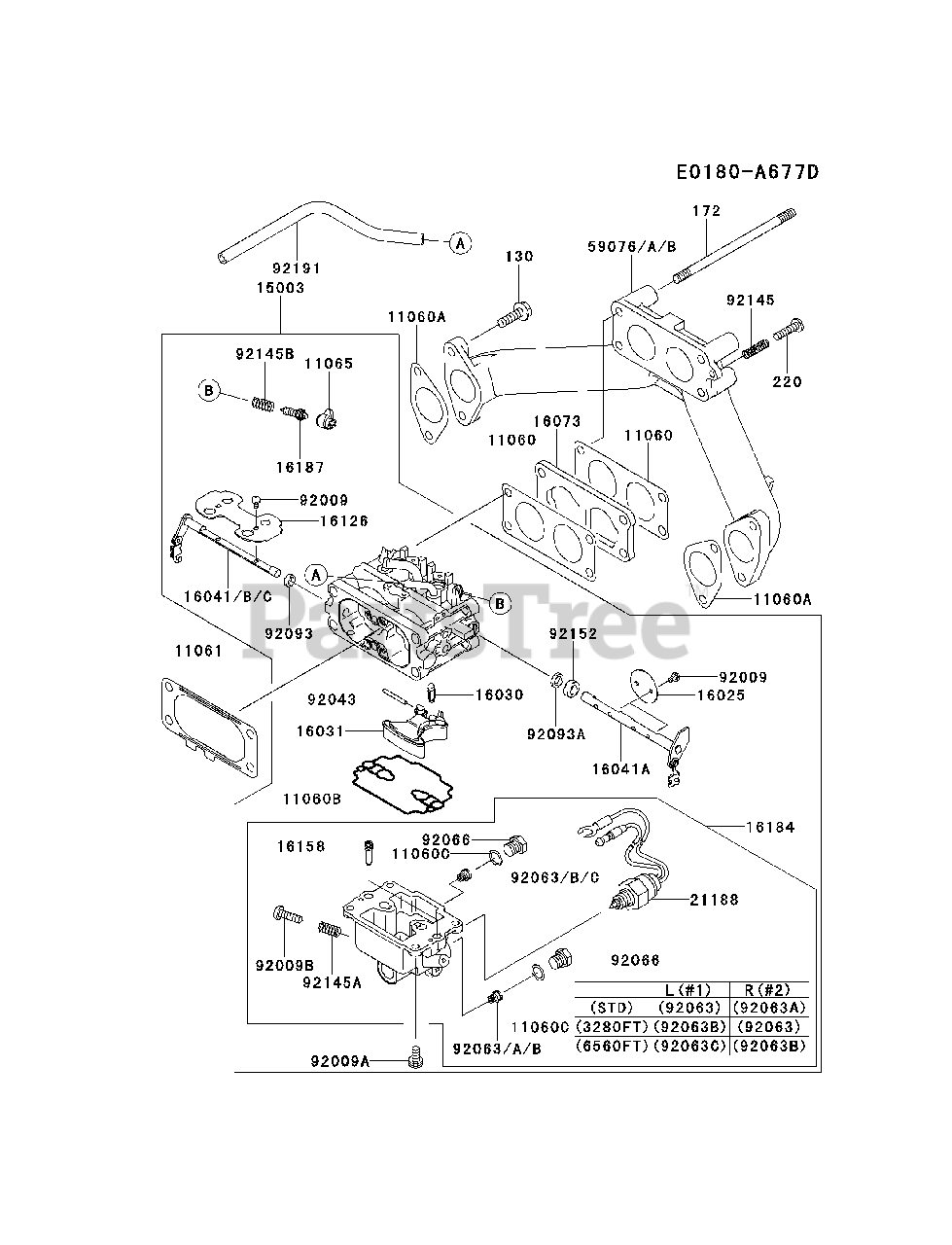

CARBURETOR Parts Diagram

  • Title

11060

Kawasaki 110607010

GASKET,CARBURETOR

$2.49

$

In Stock, Qty 20+

0

11060A

Kawasaki 110607011

GASKET,MANIFOLD

$2.49

$

In Stock, Qty 20+

0

11060B

Kawasaki 110607018

GASKET,FLOAT CHAMBER

$1.49

$

In Stock, Qty 20+

0

11060C

Kawasaki 110607019

GASKET,MAIN PLUG

$1.99

$

In Stock, Qty 20+

0

11061

Kawasaki 110617042

GASKET,AIR FILTER
(Superseded to 11060-7025)

$3.49

$

In Stock, Qty 20+

0

11065

Kawasaki 110657004

CAP,LIMITTER

$23.99

$

Usually ships in 2-5 days

0

15003

Kawasaki 15003-7049

CARBURETOR-ASSY
(Superseded to 15004-7018)

$517.99

$

Usually ships in 2-5 days

0

16025

Kawasaki 160257004

VALVE-THROTTLE

$10.99

$

Usually ships in 2-5 days

0

16030

Kawasaki 160307002

VALVE-FLOAT

$20.99

$

In Stock, Qty 20+

0

16031

Kawasaki 160317001

FLOAT

$31.99

$

In Stock, Qty 6

0

16041A

Kawasaki 160417015

SHAFT-CARBURETOR

$67.99

$

Usually ships in 2-5 days

0

16041B

Kawasaki 160417060

SHAFT-CARBURETOR,CHOKE
(Superseded to 16041-7011)

$35.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-7003

INSULATOR

$

$

Not available

16126

Kawasaki 16126-7010

VALVE

$

$

Not available

16158

Kawasaki 161587004

JET-SLOW,#54

$32.99

$

Usually ships in 2-5 days

0

16184

Kawasaki 16184-7007

CHAMBER-ASSY-FLOAT

$

$

Not available

16187

Kawasaki 161877004

NEEDLE-JET

$15.99

$

Usually ships in 2-5 days

0

21188

Kawasaki 211887001

SOLENOID

$190.99

$

In Stock, only 2 left!

0

59076A

Kawasaki 59076-7015

MANIFOLD-INTAKE
(Superseded to 59076-7006)

$

$

Not available

92009

Kawasaki 920097003

SCREW

$1.49

$

In Stock, Qty 20+

0

92009A

Kawasaki 920097005

SCREW

$1.99

$

In Stock, Qty 17

0

92009B

Kawasaki 920097006

SCREW,DRAIN

$1.99

$

In Stock, Qty 15

0

92043

Kawasaki 920437004

PIN,FLOAT

$7.49

$

In Stock, only 2 left!

0

92063

Kawasaki 920637021

JET-MAIN,#92,L

$21.99

$

Usually ships in 2-5 days

0

92063A

Kawasaki 92063-7022

JET-MAIN,#95,R

$

$

Not available

92063B

Kawasaki 920637023

JET-MAIN,#89

$23.99

$

Usually ships in 2-5 days

0

92063C

Kawasaki 92063-7024

JET-MAIN,#86

$

$

Not available

92066

Kawasaki 920667008

PLUG,MAIN JET

$4.99

$

In Stock, only 1 left!

0

92093

Kawasaki 920937001

SEAL,D=5.9

$2.49

$

In Stock, Qty 20+

0

92093A

Kawasaki 920937002

SEAL,D=6.9

$2.49

$

In Stock, Qty 20+

0

92145

Kawasaki 921457005

SPRING

$0.99

$

In Stock, Qty 10

0

92145A

Kawasaki 921457011

SPRING

$2.99

$

In Stock, Qty 12

0

92145B

Kawasaki 921457013

SPRING

$2.99

$

Usually ships in 2-5 days

0

92152

Kawasaki 921527002

COLLAR

$12.99

$

Usually ships in 2-5 days

0

92191

Kawasaki 921917010

TUBE,4.76X7.94X160

$1.49

$

In Stock, Qty 9

0
