FH680V-AS39 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

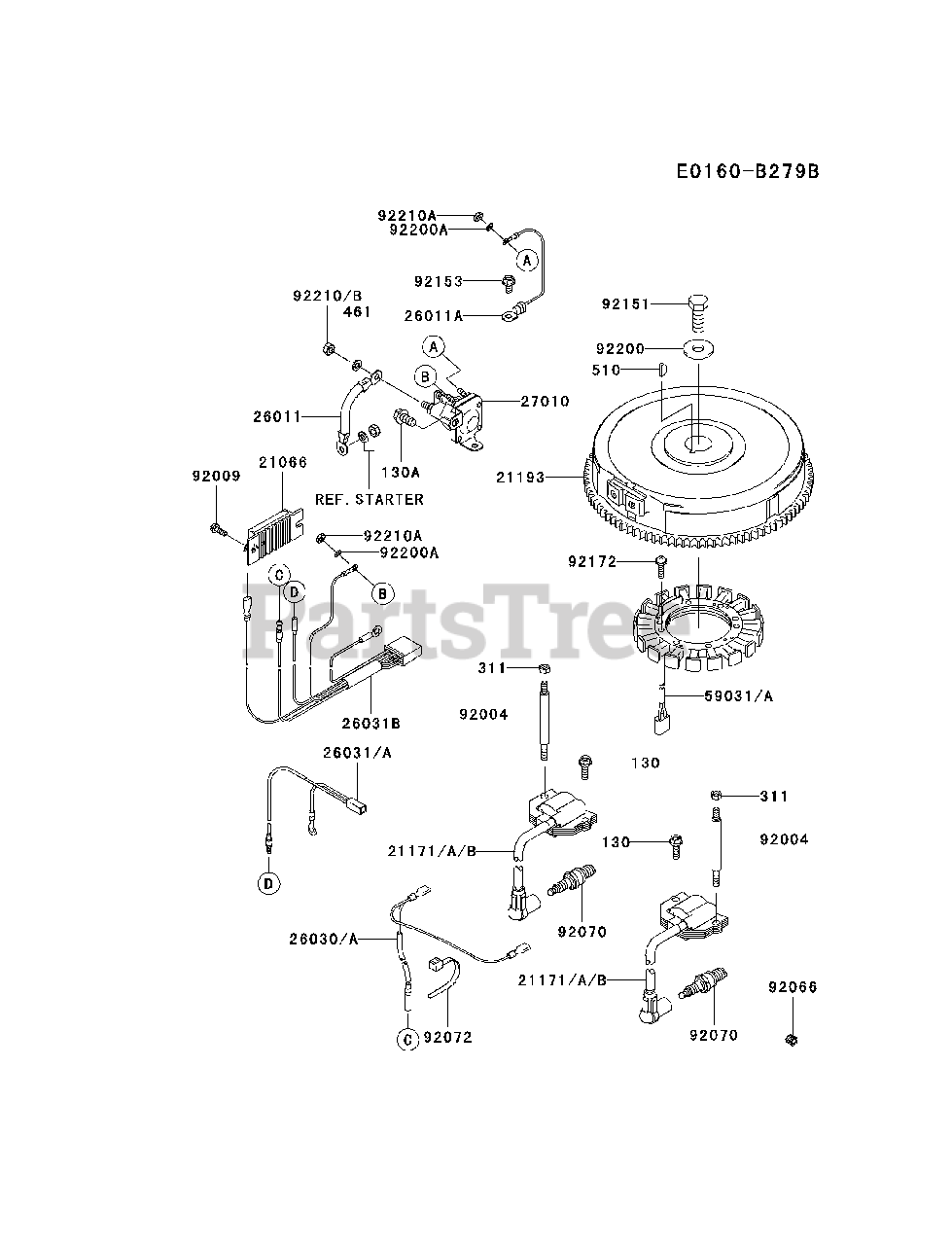

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 210667011

REGULATOR-VOLTAGE
(Superseded to 21066-7001)

$79.99

$

In Stock, Qty 20+

0

21171

Kawasaki 21171-7039

COIL-ASSY-IGNITION
(Superseded to 21171-0745)

$111.99

$

In Stock, Qty 20+

0

21193

Kawasaki 21193-7019

FLYWHEEL-ASSY
(Superseded to 21193-7045)

$332.99

$

In Stock, only 1 left!

0

26011

Kawasaki 26011-7023

WIRE-LEAD
(Superseded to 26011-0911)

$4.49

$

Usually ships in 2-5 days

0

26011A

Kawasaki 260117024

WIRE-LEAD,L=95

$2.49

$

Usually ships in 2-5 days

0

26030

Kawasaki 260307001

HARNESS

$11.99

$

In Stock, Qty 12

0

26031A

Kawasaki 260317012

HARNESS
(Superseded to 26031-7002)

$8.99

$

In Stock, only 4 left!

0

26031B

Kawasaki 260317038

HARNESS

$34.99

$

In Stock, only 1 left!

0

27010

Kawasaki 270107003

SWITCH

$26.99

$

Usually ships in 2-5 days

0

59031

Kawasaki 590317009

COIL-CHARGING
(Superseded to 59031-7001)

$133.99

$

In Stock, Qty 20+

0

92004

Kawasaki 92004-7009

STUD
(Superseded to 92004-7026)

$4.99

$

In Stock, Qty 20+

0

92009

Kawasaki 920092308

SCREW

$0.99

$

In Stock, Qty 12

0

92066

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 12

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92072

Kawasaki 920727003

BAND

$1.49

$

In Stock, only 1 left!

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92172

Kawasaki 921727018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 922007002

WASHER

$3.49

$

Usually ships in 2-5 days

0

92200A

Kawasaki 922007037

WASHER

$0.99

$

In Stock, only 2 left!

0

92210

Kawasaki 92210-7013

NUT
(Superseded to 92210-7034)

$0.99

$

Usually ships in 2-5 days

0

92210A

Kawasaki 922107030

NUT

$0.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

130A

Kawasaki 130AA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

311

Kawasaki 311AA0600

NUT-HEX,6MM
(Superseded to 16011-002)

$0.99

$

In Stock, Qty 20+

0

461

Kawasaki 461DA0600

WASHER-SPRING,6MM
(Superseded to 92022-1580)

$0.99

$

In Stock, Qty 6

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
