FH680V-FS08 - Kawasaki Engine FUEL-TANK/FUEL-VALVE Parts Diagram

Engine

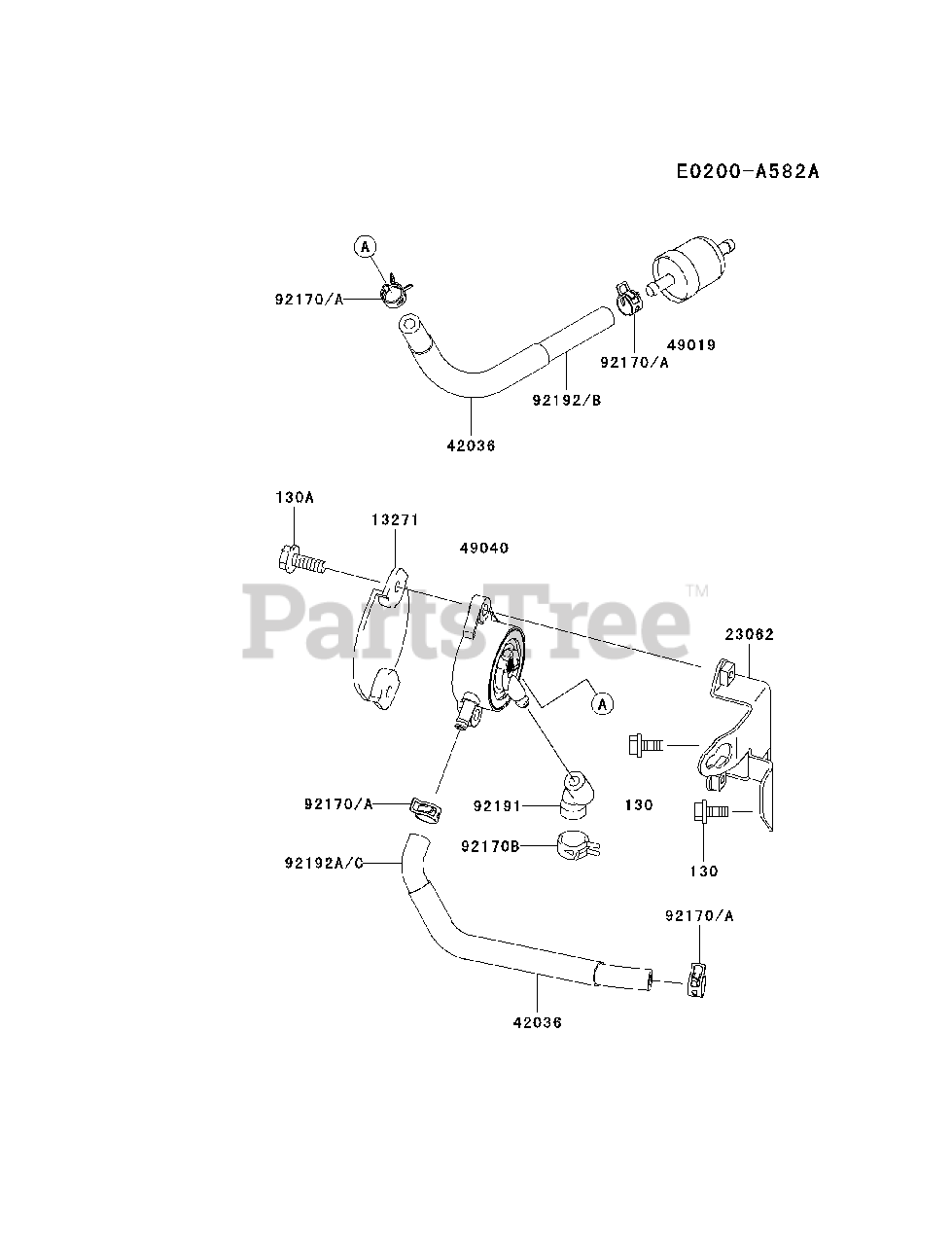

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title

13271

Kawasaki 132717004

PLATE

$4.49

$

In Stock, only 2 left!

0

23062

Kawasaki 23062-7004-9H

BRACKET-COMP
(Superseded to 23062-7019-9H)

$10.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 420367008

SLEEVE

$1.99

$

In Stock, only 3 left!

0

49019

Kawasaki 49019-7001

FILTER-FUEL
(Superseded to 49019-0027)

$9.99

$

In Stock, Qty 20+

0

49040

Kawasaki 49040-7001

PUMP-FUEL
(Superseded to 49040-2075)

$37.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 921702009

CLAMP

Note: Substitute part, supplied until the stock is exhausted.

$

$

Not available

92170A

Kawasaki 921702088

CLAMP

$

$

Not available

92170B

Kawasaki 921707003

CLAMP

$1.49

$

In Stock, Qty 5

0

92191

Kawasaki 921917027

TUBE

$3.99

$

In Stock, Qty 5

0

92192

Kawasaki 92192-7037

TUBE,6.35X12.7X160
(Superseded to 92192-7170)

$

$

Not available

92192A

Kawasaki 92192-7039

TUBE,6.35X12.7X200

$5.49

$

In Stock, only 2 left!

0

92192B

Kawasaki 92192-7055

TUBE,6.2X13.2X160
(Superseded to 92192-1549)

Note: Substitute part, supplied until the stock is exhausted.

$

$

Not available

92192C

Kawasaki 92192-7057

TUBE,6.2X13.2X200
(Superseded to 92192-7039)

Note: Substitute part, supplied until the stock is exhausted.

$5.49

$

In Stock, only 2 left!

0

130

Kawasaki 130B0616

BOLT-FLANGED,6X16
(Superseded to 130AA0616)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0620

BOLT-FLANGED,6X20
(Superseded to 130AA0620)

$3.49

$

In Stock, only 2 left!

0
