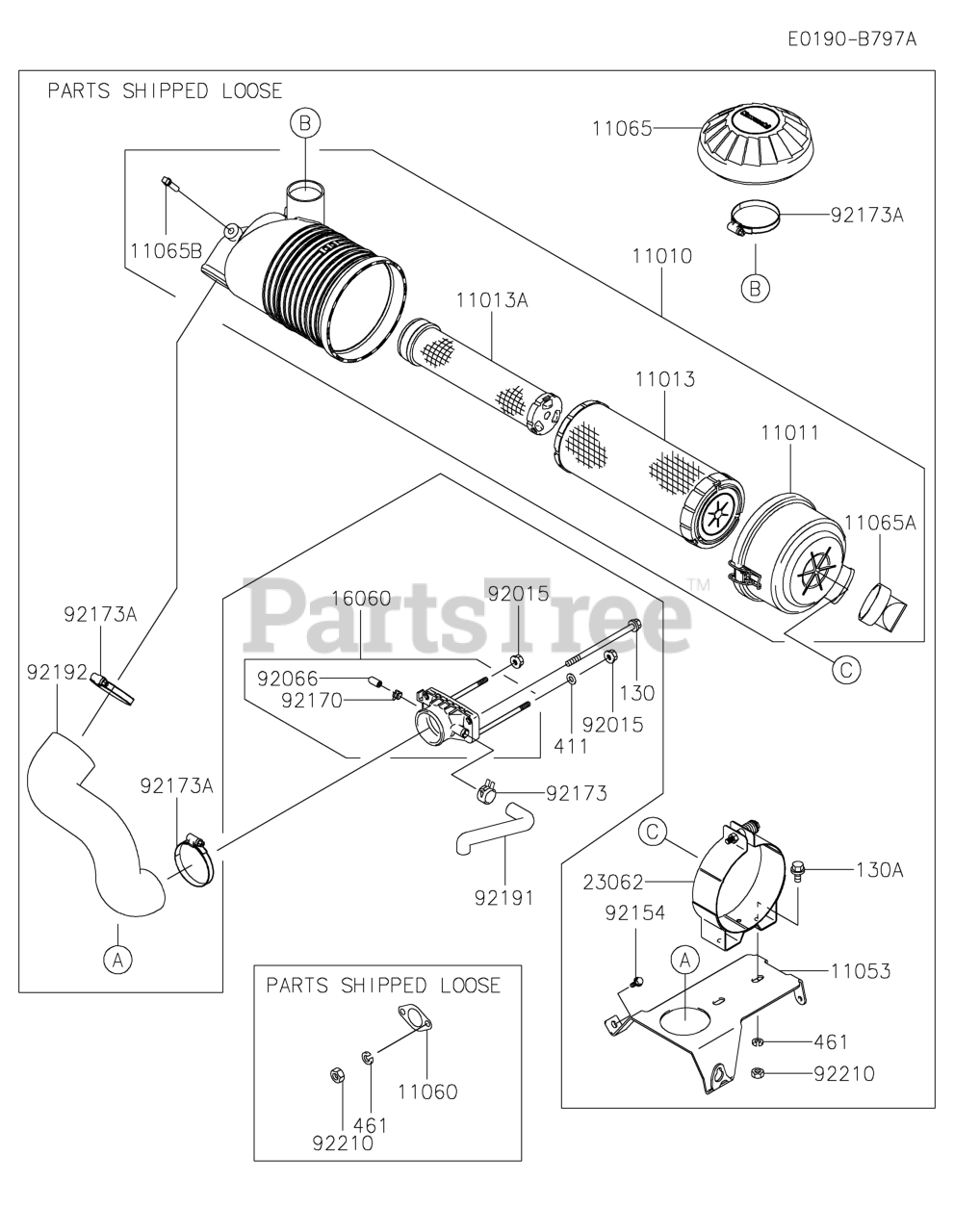

FH721D-GS08 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-0970

FILTER-ASSY-AIR

$187.99

$

In Stock, Qty 5

0

11011

Kawasaki 11011-7056

CASE-AIR FILTER

$46.99

$

In Stock, only 1 left!

0

11013

Kawasaki 11013-7044

ELEMENT-AIR FILTER

$27.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7045

ELEMENT-AIR FILTER

$27.99

$

In Stock, Qty 16

0

11053

Kawasaki 11053-7002

BRACKET
(Superseded to 11057-0415)

$35.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11065

Kawasaki 11065-7025

CAP
(Superseded to 11065-1384)

$41.99

$

In Stock, Qty 20+

0

11065A

Kawasaki 11065-7031

CAP

$13.99

$

In Stock, only 1 left!

0

11065B

Kawasaki 11065-7032

CAP

$4.49

$

In Stock, only 4 left!

0

16060

Kawasaki 16060-0766

PIPE-INTAKE

$22.99

$

Usually ships in 2-5 days

0

23062

Kawasaki 23062-7009

BRACKET-COMP

$44.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, only 4 left!

0

92066

Kawasaki 92066-0095

PLUG

$5.49

$

In Stock, Qty 5

0

92154

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 8

0

92170

Kawasaki 92170-2042

CLAMP

$1.49

$

In Stock, only 3 left!

0

92173

Kawasaki 92173-7003

CLAMP

$2.49

$

In Stock, Qty 5

0

92173A

Kawasaki 92173-7010

CLAMP

$8.49

$

In Stock, Qty 20+

0

92191

Kawasaki 92191-7032

TUBE,BREATHER

$6.99

$

In Stock, only 1 left!

0

92192

Kawasaki 92192-7049

TUBE

$53.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-7027

NUT,M8

$1.99

$

In Stock, Qty 20+

0

130

Kawasaki 130AA06105

BOLT-FLANGED,6X105
(Superseded to 130B06105)

$2.49

$

In Stock, Qty 6

0

130A

Kawasaki 130AA0814

BOLT-FLANGED,8X14
(Superseded to 130B0814)

$

$

Not available

411

Kawasaki 411AA0600

WASHER-PLAIN,6MM
(Superseded to 411B0600)

$4.49

$

Usually ships in 2-5 days

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
