FH770D-AS04 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

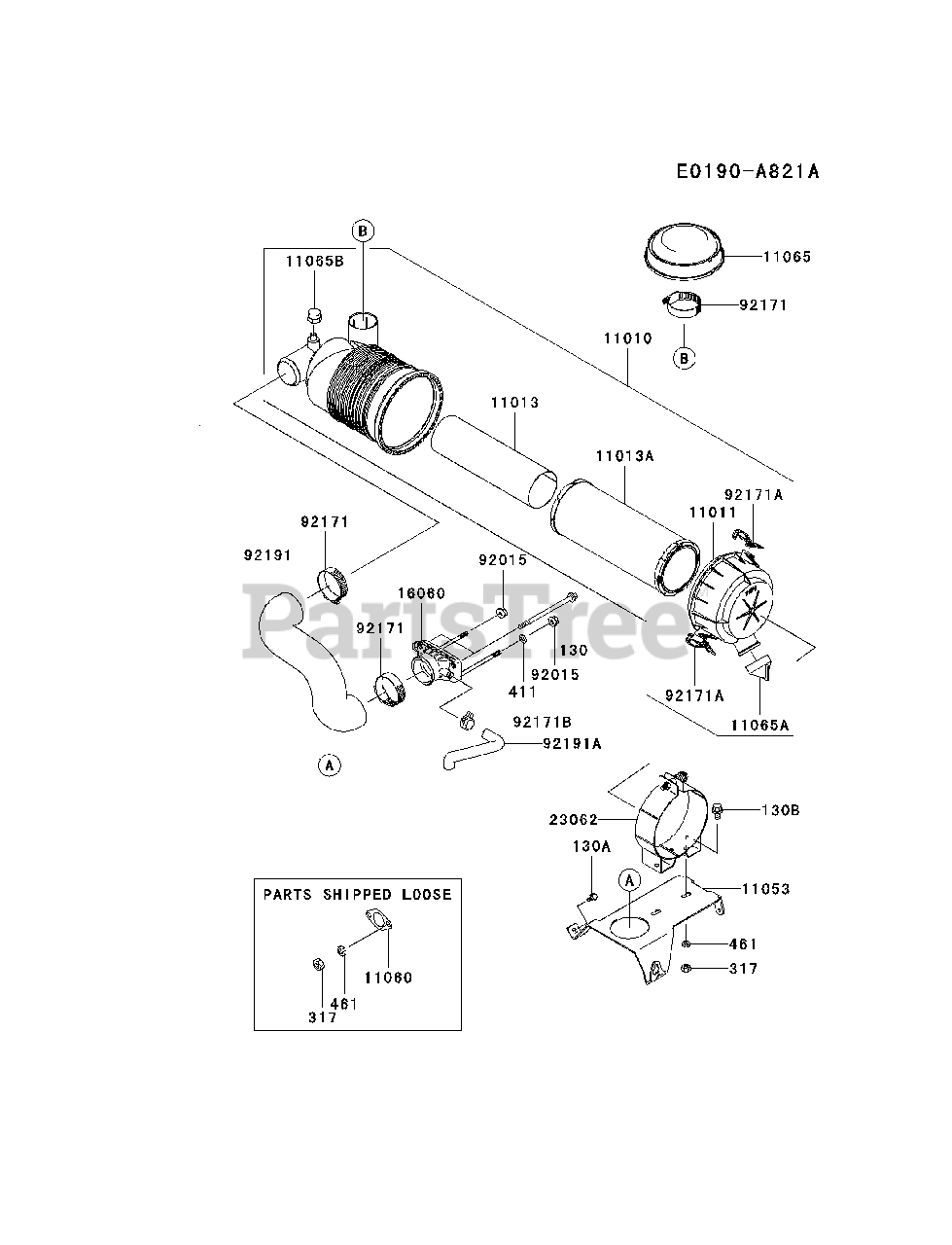

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-7011

FILTER-ASSY-AIR
(Superseded to 11010-7032)

$

$

Not available

11011

Kawasaki 110117014

CASE-AIR FILTER

$54.99

$

In Stock, Qty 5

0

11013

Kawasaki 110137019

ELEMENT-AIR FILTER

$31.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 110137020

ELEMENT-AIR FILTER

$28.99

$

In Stock, Qty 20+

0

11053

Kawasaki 11053-7002

BRACKET
(Superseded to 11057-0415)

$35.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 110607016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11065

Kawasaki 11065-7006

CAP
(Superseded to 11065-7025)

$42.99

$

In Stock, Qty 20+

0

11065A

Kawasaki 110657008

CAP

$21.99

$

In Stock, Qty 20+

0

11065B

Kawasaki 110657009

CAP

$10.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 16060-7022

PIPE-INTAKE
(Superseded to 16060-0731)

$

$

Not available

23062

Kawasaki 230627009

BRACKET-COMP

$45.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92171

Kawasaki 92171-7007

CLAMP
(Superseded to 92173-7010)

$8.99

$

In Stock, Qty 20+

0

92171A

Kawasaki 921717009

CLAMP

$13.99

$

In Stock, Qty 12

0

92171B

Kawasaki 92171-7013

CLAMP
(Superseded to 921737003)

$2.49

$

In Stock, Qty 10

0

92191

Kawasaki 92191-7031

TUBE,INTAKE
(Superseded to 92192-7049)

$64.99

$

Usually ships in 2-5 days

0

92191A

Kawasaki 921917032

TUBE,BREATHER

$7.99

$

In Stock, Qty 5

0

130

Kawasaki 130B06105

BOLT-FLANGED
(Superseded to 130AA06105)

$2.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0814

BOLT-FLANGED

$

$

Not available

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 20+

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 11

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
