FH770D-AS05 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

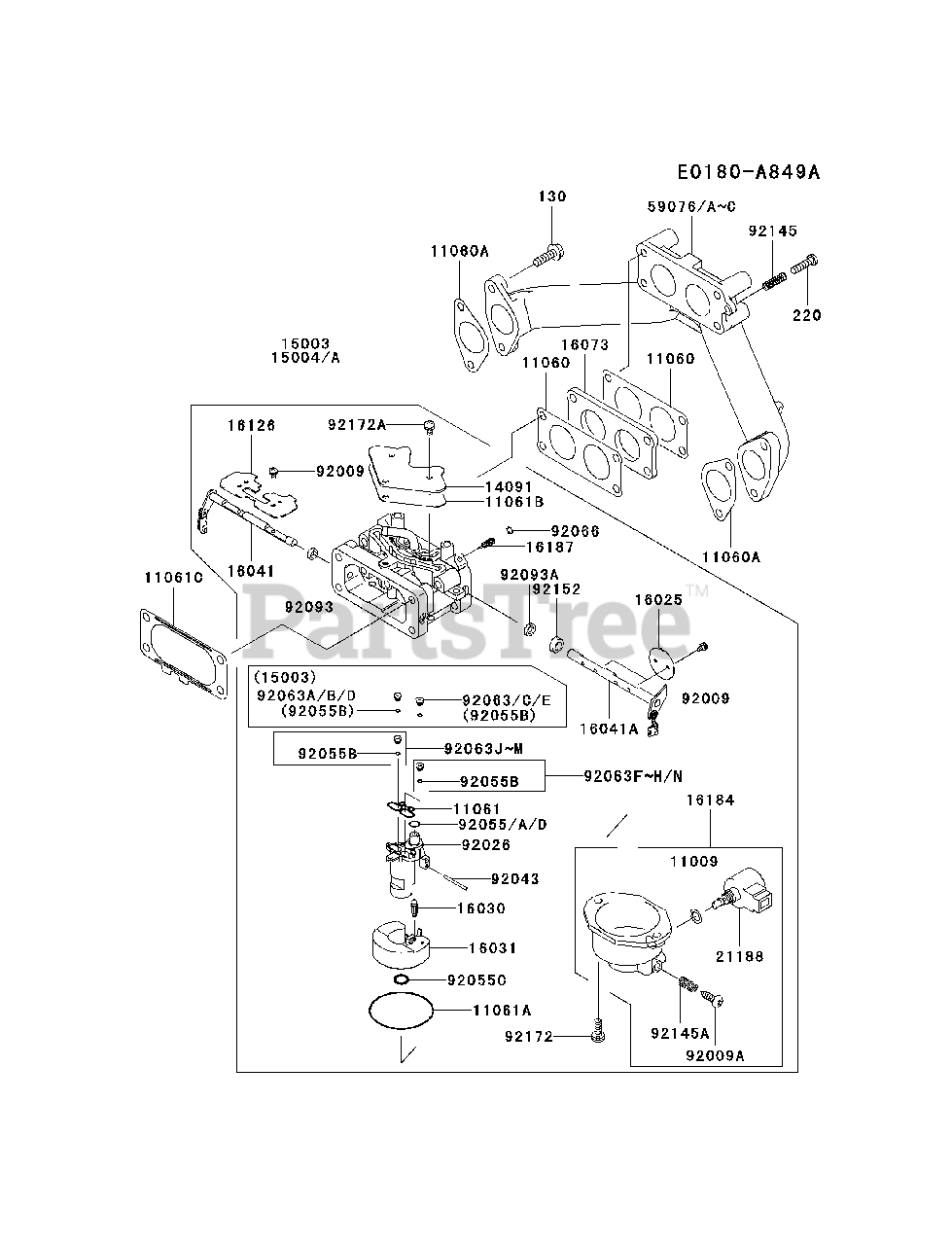

CARBURETOR Parts Diagram

  • Title

11009

Kawasaki 11009-2056

GASKET
(Superseded to 317472-6145A)

$0.99

$

In Stock, Qty 20+

0

11060

Kawasaki 11060-7010

GASKET,CARBURETOR

$2.49

$

In Stock, Qty 10

0

11060A

Kawasaki 11060-7011

GASKET,MANIFOLD

$2.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7037

GASKET

$6.99

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-7038

GASKET

$2.49

$

In Stock, Qty 20+

0

11061B

Kawasaki 11061-7039

GASKET

$4.49

$

In Stock, Qty 20+

0

11061C

Kawasaki 11061-7042

GASKET,AIR FILTER
(Superseded to 11060-7025)

$3.49

$

In Stock, Qty 7

0

14091

Kawasaki 14091-7031

COVER

$14.99

$

Usually ships in 2-5 days

0

15003

Kawasaki 15003-7125

CARBURETOR-ASSY
(Superseded to 15004-7036)

$

$

Not available

15004A

Kawasaki 15004-7036

CARBURETOR-ASSY
(Superseded to 15004-0756)

$

$

Not available

16025

Kawasaki 16025-7010

VALVE-THROTTLE

$24.99

$

Usually ships in 2-5 days

0

16030

Kawasaki 16030-7004

VALVE-FLOAT

$25.99

$

In Stock, Qty 8

0

16031

Kawasaki 16031-7003

FLOAT

$44.99

$

In Stock, only 3 left!

0

16041

Kawasaki 16041-7028

SHAFT-CARBURETOR,CHOKE

$46.99

$

Usually ships in 2-5 days

0

16041A

Kawasaki 16041-7032

SHAFT-CARBURETOR

$

$

Not available

16073

Kawasaki 16073-7002

INSULATOR

$

$

Not available

16126

Kawasaki 16126-7015

VALVE

$15.99

$

Usually ships in 2-5 days

0

16184

Kawasaki 16184-7017

CHAMBER-ASSY-FLOAT

$362.99

$

Usually ships in 2-5 days

0

16187

Kawasaki 16187-7002

NEEDLE-JET

$13.99

$

In Stock, Qty 5

0

21188

Kawasaki 21188-7003

SOLENOID

$95.99

$

In Stock, Qty 10

0

59076

Kawasaki 59076-7006

MANIFOLD-INTAKE
(Superseded to 59076-7015)

$

$

Not available

92009

Kawasaki 92009-7003

SCREW

$0.99

$

In Stock, Qty 20+

0

92009A

Kawasaki 92009-7006

SCREW,DRAIN

$1.49

$

In Stock, only 3 left!

0

92026

Kawasaki 92026-7011

SPACER

$8.49

$

Usually ships in 2-5 days

0

92043

Kawasaki 92043-7014

PIN

$6.99

$

Usually ships in 2-5 days

0

92055

Kawasaki 92055-7012

RING-O
(Superseded to 92055-7024)

$0.99

$

In Stock, Qty 20+

0

92055B

Kawasaki 92055-7013

RING-O

$0.99

$

In Stock, Qty 20+

0

92055C

Kawasaki 92055-7016

RING-O

$2.49

$

In Stock, Qty 20+

0

92063

Kawasaki 92063-7086

JET-MAIN,#124

$21.99

$

Usually ships in 2-5 days

0

92063A

Kawasaki 92063-7087

JET-MAIN,#122

$26.99

$

Usually ships in 2-5 days

0

92063B

Kawasaki 92063-7092

JET-MAIN,#119,3280FT

$21.99

$

Usually ships in 2-5 days

0

92063C

Kawasaki 92063-7093

JET-MAIN,#121,3280FT

$26.99

$

Usually ships in 2-5 days

0

92063D

Kawasaki 92063-7094

JET-MAIN,#116,6560FT

$

$

Not available

92063E

Kawasaki 92063-7095

JET-MAIN,#118,6560FT

$

$

Not available
