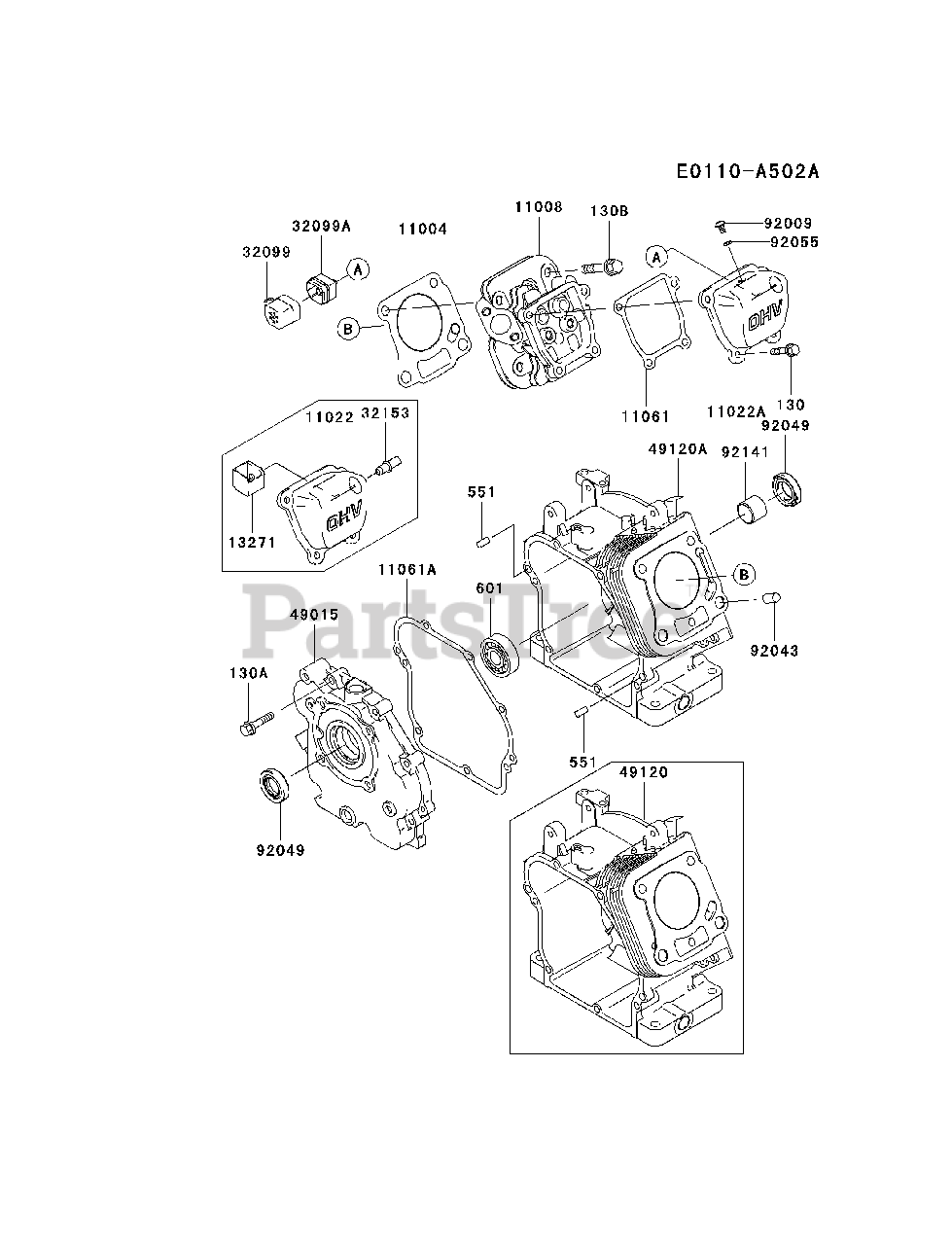

FJ100D-AS00 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

CYLINDER/CRANKCASE Parts Diagram

  • Title

11004

Kawasaki 11004-2143

GASKET-HEAD
(Superseded to 11004-2147)

$13.99

$

In Stock, only 1 left!

0

11008

Kawasaki 11008-2156

HEAD-COMP-CYLINDER

$

$

Not available

11022

Kawasaki 11022-2075

CASE-ROCKER

$

$

Not available

11022A

Kawasaki 11022-2080

CASE-ROCKER

$25.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-2100

GASKET,CASE-ROCKER

$3.49

$

Usually ships in 2-5 days

0

11061A

Kawasaki 11061-2104

GASKET,COVER-CRANKCA
(Superseded to 11061-2217)

$9.99

$

Usually ships in 2-5 days

0

13271

Kawasaki 13271-2202

PLATE,BREATHER

$

$

Not available

32099

Kawasaki 32099-2402

CASE

$1.49

$

Usually ships in 2-5 days

0

32099A

Kawasaki 32099-2403

CASE

$1.49

$

Usually ships in 2-5 days

0

32153

Kawasaki 32153-2093

PIPE

$

$

Not available

49015

Kawasaki 49015-6252

COVER-CRANKCASE

$

$

Not available

49120

Kawasaki 49120-6139

CRANKCASE-COMP
(Superseded to 49120-6149)

$

$

Not available

49120A

Kawasaki 49120-6149

CRANKCASE-COMP

$

$

Not available

92009

Kawasaki 92009-2322

SCREW

$0.99

$

In Stock, only 2 left!

0

92043

Kawasaki 92043-1037

PIN

$0.99

$

In Stock, Qty 16

0

92049

Kawasaki 92049-2001

SEAL-OIL

$5.49

$

In Stock, Qty 12

0

92055

Kawasaki 92055-1343

RING-O

$0.99

$

In Stock, Qty 10

0

92141

Kawasaki 92141-2120

BEARING-PLANE

$5.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0612

BOLT-FLANGED,6X12
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130G0630

BOLT-FLANGED,6X30
(Superseded to 130BA0630)

$1.99

$

In Stock, Qty 17

0

130B

Kawasaki 130T0840

BOLT-FLANGED,8X40
(Superseded to 130CA0840)

$1.99

$

Usually ships in 2-5 days

0

551

Kawasaki 551A0612

PIN-DOWEL,6X12

$0.99

$

Usually ships in 2-5 days

0

601

Kawasaki 601A6004

BEARING-BALL

$13.99

$

Usually ships in 2-5 days

0
