FJ100D-CS00 - Kawasaki Engine FUEL-TANK/FUEL-VALVE Parts Diagram

Engine

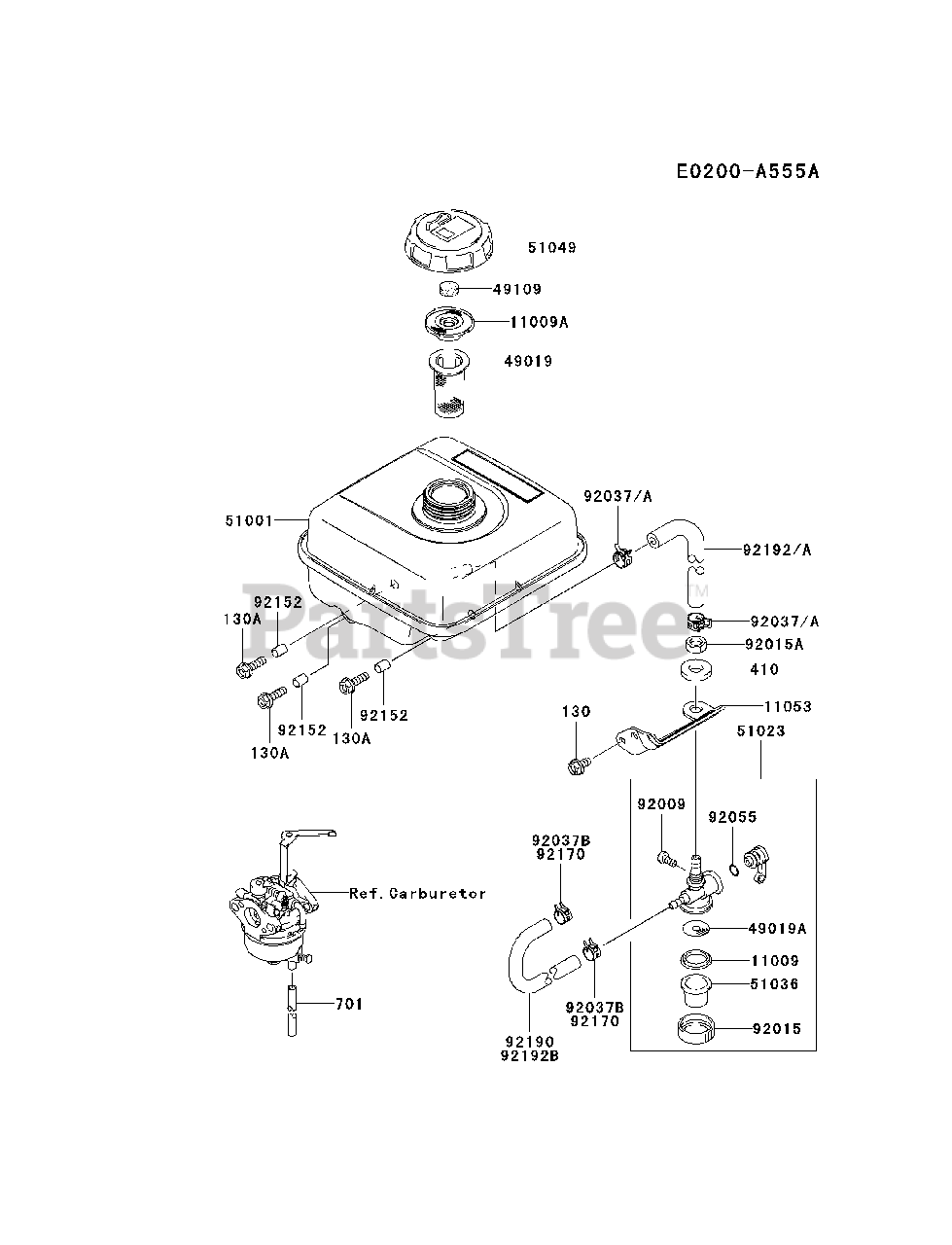

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title

11009

Kawasaki 110092021

GASKET
(Superseded to 313650-6518-02)

$

$

Not available

11009A

Kawasaki 110092831

GASKET,BREATHER

$2.99

$

In Stock, only 1 left!

0

11053

Kawasaki 110532100

BRACKET
(Superseded to 110552004)

$

$

Not available

49019

Kawasaki 490192060

FILTER-FUEL
(Superseded to 311901-6662A)

$7.99

$

Usually ships in 2-5 days

0

49019A

Kawasaki 490192095

FILTER-FUEL
(Superseded to 49019-2101)

$6.99

$

In Stock, Qty 19

0

49109

Kawasaki 491092054

ELEMENT-BREATHER,TANK
(Superseded to 49109-2001)

$0.99

$

In Stock, Qty 11

0

51001

Kawasaki 51001-2320

TANK-COMP-FUEL
(Superseded to 99916-2185)

$169.99

$

Usually ships in 2-5 days

0

51023

Kawasaki 510232131

TAP-ASSY
(Superseded to 51023-2001)

$

$

Not available

51036

Kawasaki 510362063

CUP,FUEL TAP
(Superseded to 51036-2001)

$4.99

$

In Stock, Qty 20+

0

51049

Kawasaki 510492103

CAP-TANK
(Superseded to 51049-2100)

$4.99

$

In Stock, only 1 left!

0

92009

Kawasaki 920092004

SCREW

$0.99

$

In Stock, only 3 left!

0

92015

Kawasaki 920152007

NUT

$7.49

$

In Stock, Qty 12

0

92015A

Kawasaki 920152317

NUT

$1.99

$

In Stock, Qty 9

0

92037

Kawasaki 920371181

CLAMP,HOSE CLIP

$3.99

$

Usually ships in 2-5 days

0

92055

Kawasaki 920552002

RING-O

$

$

Not available

92152

Kawasaki 92152-2080

COLLAR
(Superseded to 92152-2100)

$1.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 921702043

CLAMP

$1.49

$

In Stock, Qty 13

0

92192A

Kawasaki 921922109

TUBE,6.2X13.2X230

$

$

Not available

92192B

Kawasaki 921922119

TUBE,4X11X180

$17.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0612

BOLT-FLANGED,6X12
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130G0620

BOLT-FLANGED,6X20
(Superseded to 130BA0620)

$1.99

$

In Stock, only 2 left!

0

410

Kawasaki 410B1000

W-PLAIN-S,10MM
(Superseded to 410AA1000)

$0.99

$

Usually ships in 2-5 days

0

701

Kawasaki 701Q051000

TUBE-PVC
(Superseded to 701Q0575)

$3.99

$

Usually ships in 2-5 days

0
