FJ180V-AM24 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

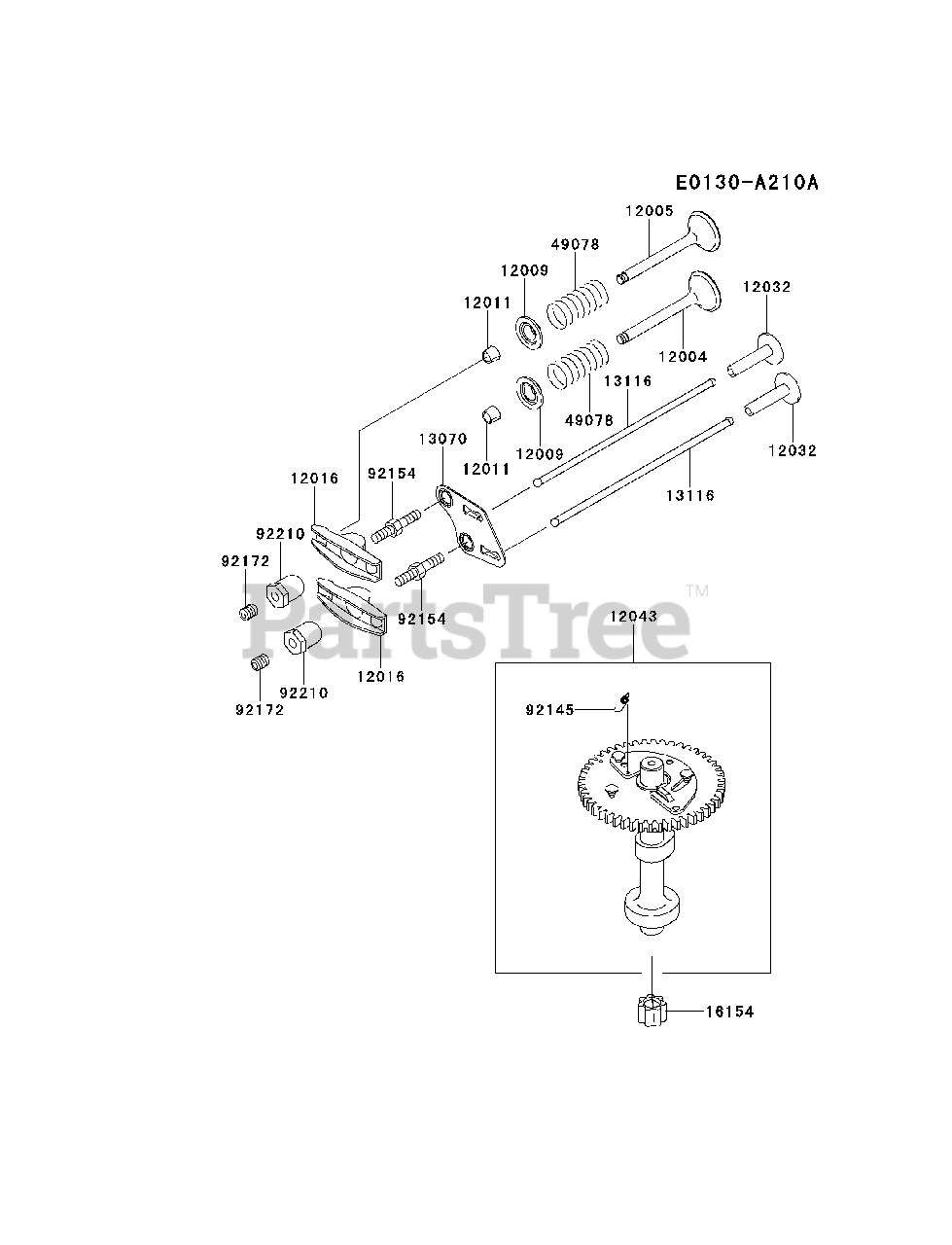

VALVE/CAMSHAFT Parts Diagram

  • Title

12004

Kawasaki 120042122

VALVE-INTAKE

$28.99

$

In Stock, Qty 12

0

12005

Kawasaki 120052107

VALVE-EXHAUST

$51.99

$

In Stock, Qty 5

0

12009

Kawasaki 120092072

RETAINER-VALVE SPRING

$4.99

$

In Stock, only 3 left!

0

12011

Kawasaki 120112056

COLLET

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 120162067

ARM-ROCKER

$11.99

$

Usually ships in 2-5 days

0

12032

Kawasaki 120322074

TAPPET

$

$

Not available

12043

Kawasaki 120432001

CAMSHAFT-ASSY-VALVE

$160.99

$

Usually ships in 2-5 days

0

13070

Kawasaki 130702118

GUIDE

$1.49

$

Usually ships in 2-5 days

0

13116

Kawasaki 131162076

ROD-PUSH
(Superseded to 13116-7003)

$6.99

$

Usually ships in 2-5 days

0

16154

Kawasaki 161547004

ROTOR-PUMP
(Superseded to 16154-7001)

$7.49

$

In Stock, only 1 left!

0

49078

Kawasaki 490782089

SPRING-ENGINE VALVE

$13.99

$

In Stock, only 2 left!

0

92145

Kawasaki 921452179

SPRING

$1.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 921542009

BOLT

$2.99

$

Usually ships in 2-5 days

0

92172

Kawasaki 921722107

SCREW

$1.99

$

In Stock, Qty 5

0

92210

Kawasaki 922102123

NUT,M6

$3.49

$

Usually ships in 2-5 days

0
