FJ180V-AM29 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

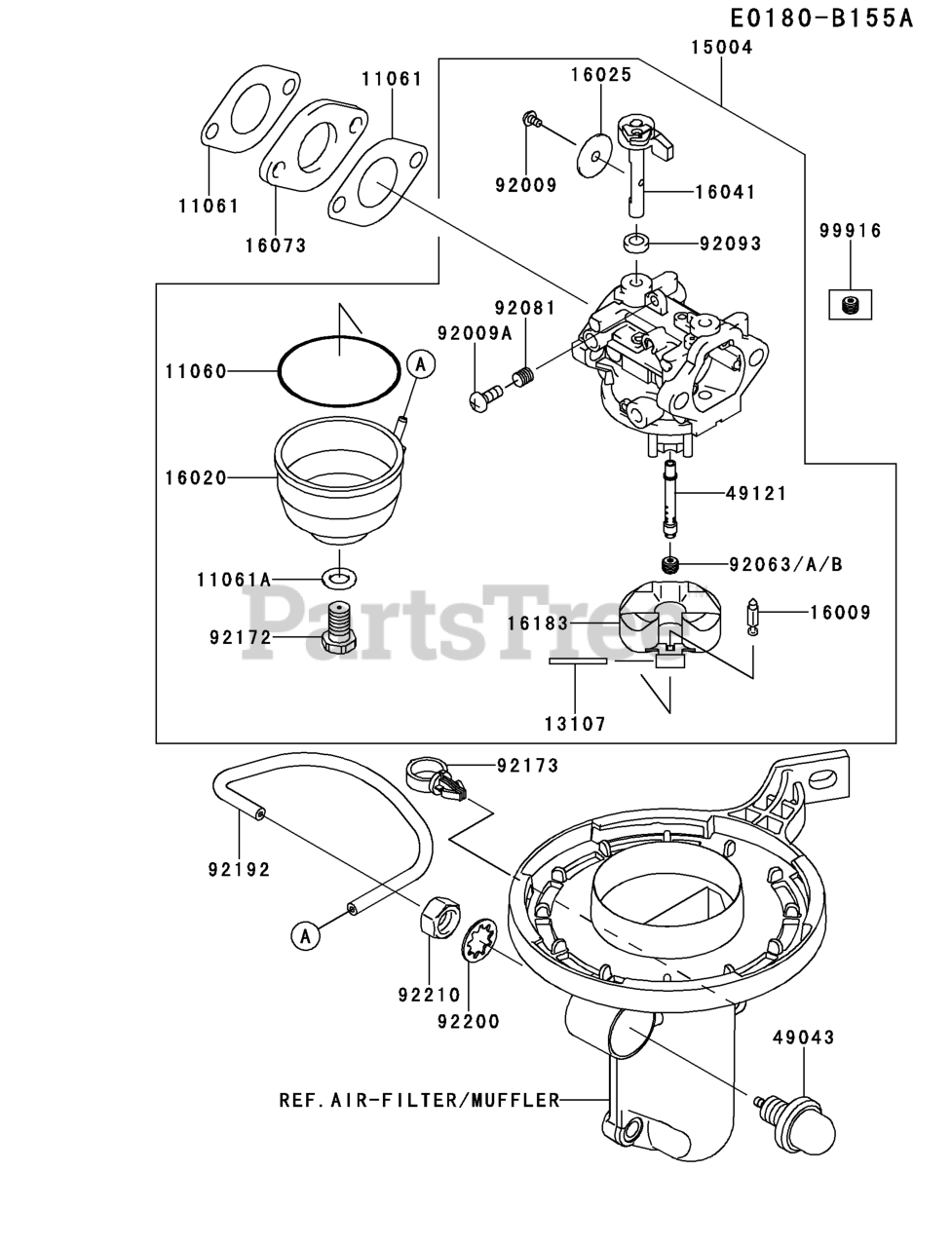

CARBURETOR Parts Diagram

  • Title

11060

Kawasaki 11060-2190

GASKET

$4.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-2215

GASKET,INSULATOR
(Superseded to 11061-7015)

$1.99

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-7010

GASKET,SCREW

$3.49

$

In Stock, Qty 20+

0

13107

Kawasaki 13107-7024

SHAFT

$7.99

$

Usually ships in 2-5 days

0

15004

Kawasaki 15004-0961

CARBURETOR-ASSY
(Superseded to 15004-7011)

$219.99

$

In Stock, only 1 left!

0

16009

Kawasaki 16009-2136

NEEDLE-JET

$22.99

$

In Stock, only 4 left!

0

16020

Kawasaki 16020-7005

CHAMBER-FLOAT

$35.99

$

In Stock, only 1 left!

0

16025

Kawasaki 16025-7007

VALVE-THROTTLE

$9.49

$

In Stock, Qty 12

0

16041

Kawasaki 16041-7019

SHAFT-CARBURETOR

$33.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-2240

INSULATOR
(Superseded to 16073-7006)

$2.49

$

In Stock, Qty 8

0

16183

Kawasaki 16183-2002

FLOAT-ASSY

$21.99

$

In Stock, only 2 left!

0

49043

Kawasaki 49043-7002

PUMP-PRIMING

$7.49

$

In Stock, Qty 20+

0

49121

Kawasaki 49121-7014

NOZZLE-MAIN

$32.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2083

SCREW
(Superseded to 31037A-6157A)

$2.49

$

In Stock, Qty 11

0

92009A

Kawasaki 92009-2349

SCREW

$1.49

$

In Stock, Qty 5

0

92063

Kawasaki 92063-7067

JET-MAIN,#70,3280FT

$10.99

$

Usually ships in 2-5 days

0

92063A

Kawasaki 92063-7108

JET-MAIN,#66,3280FT

$10.99

$

Usually ships in 2-5 days

0

92063B

Kawasaki 92063-7109

JET-MAIN,#68,6560FT

$10.99

$

Usually ships in 2-5 days

0

92081

Kawasaki 92081-2234

SPRING

$4.49

$

In Stock, Qty 5

0

92093

Kawasaki 92093-2100

SEAL

$3.49

$

In Stock, Qty 14

0

92172

Kawasaki 92172-7003

SCREW

$13.99

$

In Stock, only 1 left!

0

92173

Kawasaki 92173-1439

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92192

Kawasaki 92192-7162

TUBE,2.36X4.85X190
(Superseded to 92192-2453)

$4.99

$

In Stock, only 1 left!

0

92200

Kawasaki 92200-1851

WASHER-TOOTHED

$0.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-0736

NUT,M10

$1.99

$

Usually ships in 2-5 days

0

99916

Kawasaki 99916-7009

KIT,JET-MAIN,#68,#66

$22.99

$

Usually ships in 2-5 days

0
