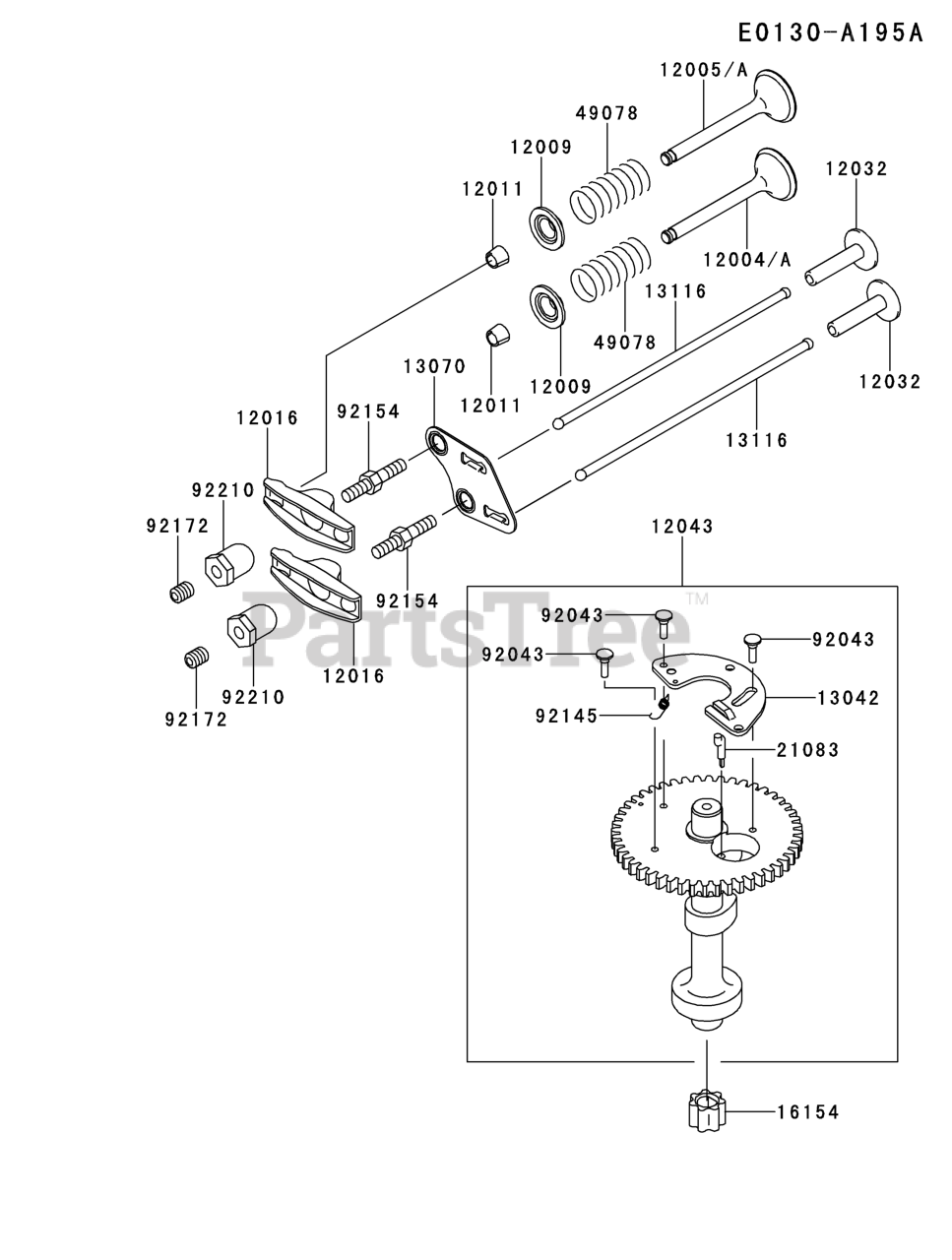

FJ180V-AM54 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

VALVE/CAMSHAFT Parts Diagram

  • Title

12004

Kawasaki 12004-2119

VALVE-INTAKE
(Superseded to 12004-2122)

$28.99

$

In Stock, Qty 12

0

12004A

Kawasaki 12004-2122

VALVE-INTAKE

$28.99

$

In Stock, Qty 12

0

12005

Kawasaki 12005-2105

VALVE-EXHAUST

$

$

Not available

12005A

Kawasaki 12005-2107

VALVE-EXHAUST

$51.99

$

In Stock, Qty 5

0

12009

Kawasaki 12009-2072

RETAINER-VALVE SPRING

$4.99

$

In Stock, only 3 left!

0

12011

Kawasaki 12011-2056

COLLET

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 12016-2067

ARM-ROCKER

$11.99

$

Usually ships in 2-5 days

0

12032

Kawasaki 12032-2074

TAPPET

$

$

Not available

12043

Kawasaki 12043-2001

CAMSHAFT-ASSY-VALVE

$160.99

$

Usually ships in 2-5 days

0

13042

Kawasaki 13042-2121

WEIGHT

$4.49

$

Usually ships in 2-5 days

0

13070

Kawasaki 13070-2118

GUIDE

$1.49

$

Usually ships in 2-5 days

0

13116

Kawasaki 13116-2076

ROD-PUSH
(Superseded to 13116-7003)

$6.99

$

Usually ships in 2-5 days

0

16154

Kawasaki 16154-7004

ROTOR-PUMP
(Superseded to 16154-7001)

$7.49

$

In Stock, only 1 left!

0

21083

Kawasaki 21083-2088

ARM

$

$

Not available

49078

Kawasaki 49078-2089

SPRING-ENGINE VALVE

$13.99

$

In Stock, only 2 left!

0

92043

Kawasaki 92043-2262

PIN

$

$

Not available

92145

Kawasaki 92145-2179

SPRING

$1.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 92154-2009

BOLT

$2.99

$

Usually ships in 2-5 days

0

92172

Kawasaki 92172-2107

SCREW

$1.99

$

In Stock, Qty 5

0

92210

Kawasaki 92210-2123

NUT,M6

$3.49

$

Usually ships in 2-5 days

0
