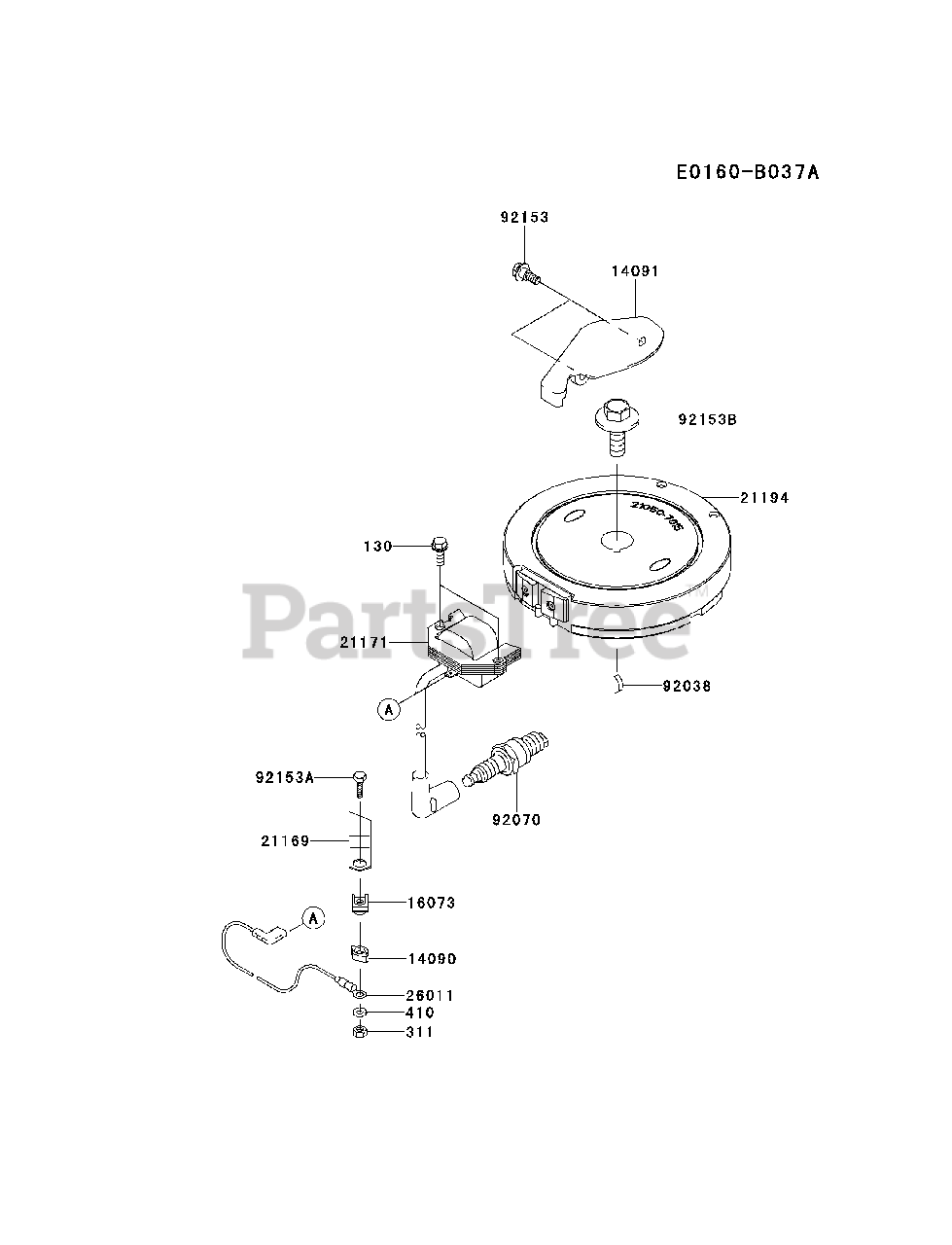

FJ180V-AS34 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
14090

Kawasaki Part# 14090-2108

COVER
(Superseded to 14024-2183)
Usually ships in 1 day

$

$0.45

0

14091

Kawasaki Part# 14091-7036

COVER
(Superseded to 14091-7024)
Usually ships in 3 to 6 days

$

$0.86

0

16073

Kawasaki Part# 16073-2192

INSULATOR
(Superseded to 16073-2124)
Usually ships in 1 day

$

$0.89

0

21169
Usually ships in 1 day

$

$0.65

0

21171

Kawasaki Part# 21171-7030

COIL-ASSY-IGNITION
(Superseded to 21171-2267)
Usually ships in 1 day

$

$103.64

0

21194

Kawasaki Part# 21194-7024

FLYWHEEL-COMP
(Superseded to 21194-2355)
Usually ships in 3 to 6 days

$

$168.56

0

26011
Usually ships in 1 day

$

$2.73

0

Usually ships in 1 day

$

$2.38

0

92070

Kawasaki Part# 92070-2088

PLUG-SPARK,BPR5ES,SOLID
(Superseded to BPR5ES)

Note: NGK

Usually ships in 1 day

$

$3.34

0

Usually ships in 1 day

$

$2.73

0

92153A
Usually ships in 1 day

$

$0.54

0

92153B
Usually ships in 3 to 6 days

$

$2.10

0

130

Kawasaki Part# 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)
Usually ships in 1 day

$

$2.35

0

311

Kawasaki Part# 311AA0400

NUT-HEX,4MM
(Superseded to 311509-6152-00)
Usually ships in 1 day

$

$0.27

0

410

Kawasaki Part# 410AA0400

W-PLAIN-S,4MM
(Superseded to 21025-002)
Usually ships in 1 day

$

$0.37

0
