FLT 185420 (7800370) - Murray 42" Lawn Tractor, 18.5hp (2008) Electrical Group - Hydro Drive Parts Diagram

42" Lawn Tractor, 18.5hp

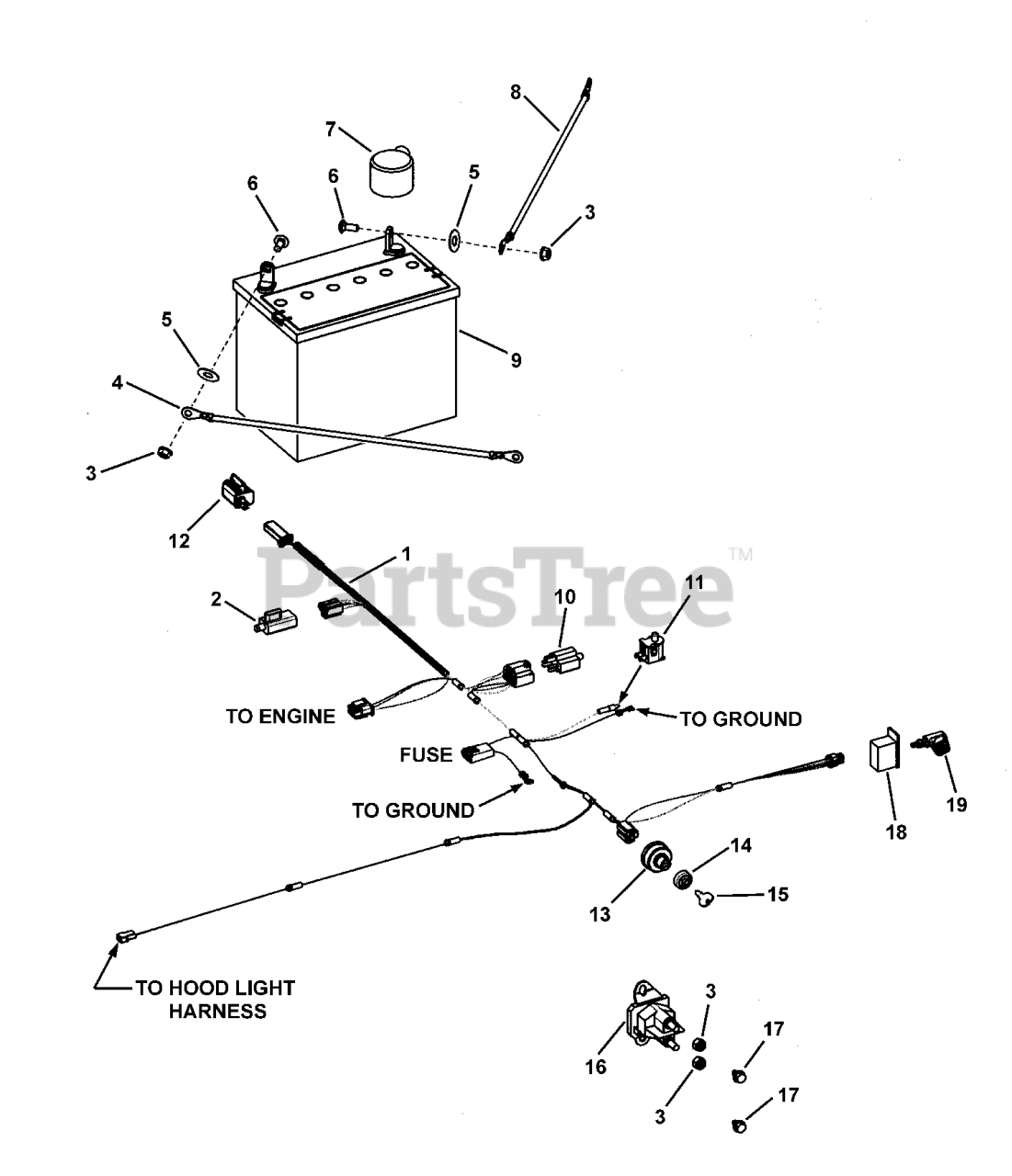

Electrical Group - Hydro Drive Parts Diagram

  • Title

1

Murray 7101432YP

HARNESS, WIRING, HYDRO TCT, MAN PTO

$74.99

$

Usually ships in 2-12 days

0

2

Murray 094136MA

SWITCH, LIMIT, NO/NC, SNAP-IN

$12.99

$

In Stock, Qty 5

0

3

Murray 1908125MA

NUT-HEX 1/4-20 NC-2B YELLOW

$3.99

$

Usually ships in 2-12 days

0

4

Murray 024X32MA

CABLE-BAT 8GA 12.00L - BLACK

$8.49

$

Usually ships in 2-12 days

0

5

Murray 2816964SM

LOCKHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

6

Murray 2823341SM

CAPSCREW-HEX HD 1/4-20X0.750 G5 YEL
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

7

Murray 690604MA

BOOT BATTERY POSITIVE

$5.99

$

Usually ships in 2-12 days

0

8

Murray 024X31MA

CABLE-BAT 8GA 18.00L - RED

$7.49

$

Usually ships in 2-12 days

0

9

Murray 7100449SM

BATTERY, 12 VOLT, 230 CCA
(Superseded to 1685215SM)

$

$

Not available

10

Murray 1726774SM

SWITCH, 3 POLE, PLUNGER, SNAP-IN

$20.99

$

Usually ships in 2-12 days

0

11

Murray 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0

12

Murray 1001575MA

SWITCH, LIMIT, NO, SNAP-IN

$9.99

$

In Stock, only 1 left!

0

13

Murray 7026343SM

SWITCH,IGNITION-AFTERFIRE SOLENOID

$38.99

$

In Stock, only 2 left!

0

14

Murray 091488MA

CAP-IGNITION SWITCH

$4.99

$

In Stock, only 4 left!

0

15

Murray 1001304MA

KEY, IGNITION

$5.49

$

In Stock, only 1 left!

0

16

Murray 7769224MA

SOLENOID - 3 POLE

$27.99

$

In Stock, only 3 left!

0

17

Murray 26X229MA

SCREW 1/4-14X.38"ST-

$4.49

$

In Stock, only 1 left!

0

18

Murray 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

19

Murray 1726557SM

KEY, RMO Module Plastic

$5.49

$

In Stock, Qty 19

0

--

Murray 250X149MA

HARNESS, RR GR

Note: not shown

$23.99

$

Usually ships in 2-12 days

0

--

Murray 1726557SM

KEY W/ HANG TAG

Note: not shown

$5.49

$

In Stock, Qty 19

0

--

Murray 2821319SM

HER-0.250(0.27IDX0.62ODX.05THK)YEL
(Superseded to 703332)

Note: not shown

$4.49

$

In Stock, Qty 10

0
