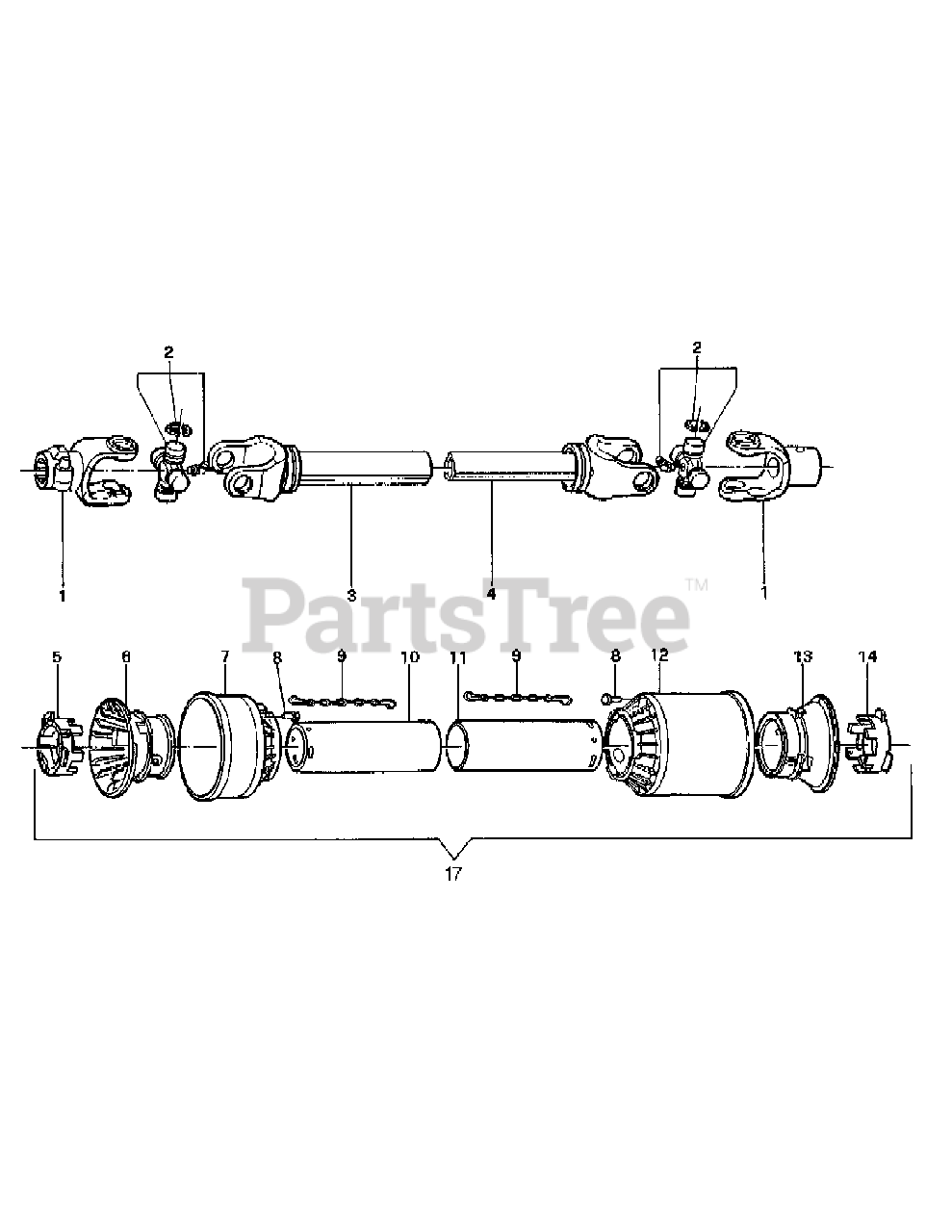

FM 48 (59A40040727) - Cub Cadet Yanmar Tractor 48" Finishing Mower Driveline #1A169160 & Below Parts Diagram

Tractor 48" Finishing Mower

Driveline #1A169160 & Below Parts Diagram

  • Title

1

Cub Cadet YS-022-001E

PTO yoke

$

$

Not available

2

Cub Cadet YS-012-130E

Cross and bearing
(Superseded to BF-012-130E)

$92.99

$

Usually ships in 3-6 days

0

3

Cub Cadet YS-1942045C

Outer tube FM48

$

$

Not available

3

Cub Cadet YS-1942051C

Outer tube FM60

$

$

Not available

3

Cub Cadet YS-1942066C

Outer tube FM72

$

$

Not available

4

Cub Cadet YS-1952047C

Inner tube FM48

$

$

Not available

4

Cub Cadet YS-1952053C

Inner tube FM60

$

$

Not available

4

Cub Cadet YS-1952068C

Inner tube FM72

$

$

Not available

5

Cub Cadet YS-1782210C

Outer locking ring; # 1A169160 & below
(Superseded to BF-1782210C)

$

$

Not available

6

Cub Cadet YS-1784201C

Outer tube rigid cone; # 1A169160 & below
(Superseded to BF-1784201C)

$26.99

$

In Stock, only 1 left!

0

7

Cub Cadet YS-1784203C

Outer cone; #1A169160 & below
(Superseded to BF-1784203C)

$

$

Not available

8

Cub Cadet YS-1784212C

Pin; #1A169160 & below
(Superseded to BF-1784212C)

$

$

Not available

9

Cub Cadet YS-016-025E

Chain
(Superseded to BF-016-025E)

$

$

Not available

10

Cub Cadet YS-1773043C

Female tube shield FM48; # 1A169160 & below
(Superseded to BF-1773043C)

$

$

Not available

10

Cub Cadet YS-1773049C

Female tube shield FM60; # 1A169160 & below

$

$

Not available

10

Cub Cadet YS-1773064C

Female tube shield FM72; # 1A169160 & below

$

$

Not available

11

Cub Cadet YS-1872043C

Male tube shield FM48; # 1A169160 & below
(Superseded to BF-1872043C)

$

$

Not available

11

Cub Cadet YS-1872049C

Male tube shield FM60; # 1A169160 & below

$

$

Not available

11

Cub Cadet YS-1872064C

Male tube shield FM72; # 1A169160 & below

$

$

Not available

12

Cub Cadet YS-1784205C

Outer cone (long); #1A169160 & below
(Superseded to BF-1784205C)

$

$

Not available

13

Cub Cadet YS-1784202C

Inner tube rigid cone; # 1A169160 & below
(Superseded to BF-1784202C)

$

$

Not available

14

Cub Cadet YS-1782211C

Inner locking ring; # 1A169160 & below
(Superseded to BF-1782211C)

$

$

Not available

17

Cub Cadet N/A

Complete shielding FM48; # 1A169160 & below

Note: Complete shielding is interchangeable with part YS-96SL2043C. The single shield components of the driveline are not interchangeable.

$

$

Currently unavailable

17

Cub Cadet N/A

Complete shielding FM60; # 1A169160 & below

Note: Complete shielding is interchangeable with part YS-96SL2053C. The single shield components of the driveline are not interchangeable.

$

$

Currently unavailable

17

Cub Cadet N/A

Complete shielding FM72; # 1A169160 & below

Note: Complete shielding is interchangeable with part YS-96SL2068C. The single shield components of the driveline are not interchangeable.

$

$

Currently unavailable

Cub Cadet YS-050-0402

Driveline complete FM48

Note: Not shown

$

$

Not available

Cub Cadet YS-050-0403

Driveline complete FM60
(Superseded to BF-050-0403)

Note: Not shown

$

$

Not available

Cub Cadet YS-050-0404

Driveline complete FM72

Note: Not shown

$

$

Not available

Cub Cadet YS-950-463B

Decal "DANGER - Rotating driveline, keep away" outer shield

Note: Not shown

$

$

Not available

Cub Cadet YS-950-464B

Decal "DANGER - Guard missing, do not operate" outer tube

Note: Not shown

$

$

Not available
